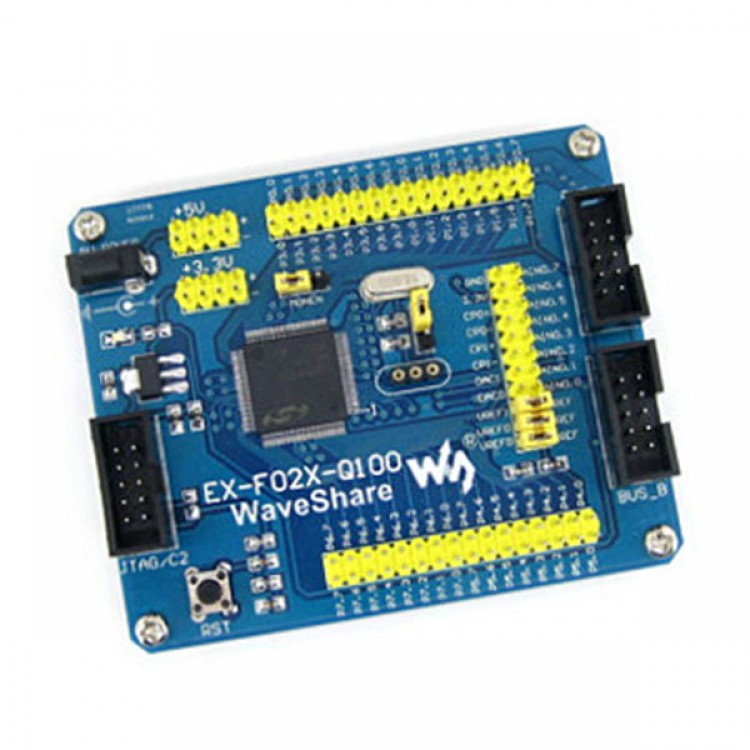

WaveShare C8051F020 C8051F Learning Development Board Core Board System Board

WaveShare C8051F020 C8051F Learning Development Board Core Board System Board

Description:
- A good platform for the hardware development, in addition to the emulator, downloader, indispensable is the "main board"!
- Because early development, system design -- -based on the mainboard is will make you get twice the result with half the effort, if you wonder to frequently informs the MCU is lack of a good "main board"?
- Designed for C8051F02x (C8051F020, C8051F020) is Designed
- Fleetly -- -based on C8051F02x (C8051F020, C8051F020) development platform

The Function of The introduction
- The power supply
- An external 5 v power supply
- Can foreign power supply
- The onboard chip
- C8051F020 - GQR (TQFP100)
- AMS1117-3.3, 3.3 V voltage regulator chip
- Interface resources
- JTAG/C2 interface
- With DVK501 extended interface (BUS_A/BUS_B) Specific connection (definition)
- Other resources
- The Reset button
- Crystals can be custom, can use the board, with 16 m Crystals, through the jumper Settings to choose the actual need of Crystals
- The Detailed identifies The function of all ports, establish The platform development faster - - and more accurate
- Rules raises all IO expressions using, the work and the related experiment

The Development of information
- The user manual
- The electronic document
- The principle diagram of The circuit
- Dojo. Dojo.provide the principle diagram of the PDF format
- The sample program
- Silabs IDE, Keil design, the dojo. Dojo.provide commonly 2 C language application library
- C8051FTo develop basic tutorial
- Silabs IDE software tutorial
- Using Keil software tutorial
- C8051F development introductory guide, etc
- The Related software
- Silabs IDE
- KEIL
- Chip PDF

The Configuration of The list
- The EX - F02x - Q100 1 x
- USB special wire 1 x
- 4 - pin connecting line 2 x
- 2 - the pin connecting line 2 x
- The Data CD x 1
