Waveshare ESP32-S3 Development Board ESP32-S3R2 GEEK 1.14-inch LCD ST7789 for USB Dongle Support 2.4GHz WiFi BLE5

Waveshare ESP32-S3 Development Board ESP32-S3R2 GEEK 1.14-inch LCD ST7789 for USB Dongle Support 2.4GHz WiFi BLE5

Description:
- ESP32-S3-GEEK is a geek development board designed by Waveshare, onboard USB-A port, 1.14inch LCD screen, TF card slot, and other peripherals. Supports 2.4GHz WiFi and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project.
- ESP32-S3 Geek Development Board: Integrated LCD display screen, Micro SD card slot, buttons, and commonly used peripheral interfaces, suitable for creative applications such as wireless USB drives, USB WiFi/Bluetooth, USB Dongle, etc. based on ESP32-S3.

Features:
- Adopts ESP32-S3R2 chip, for Xtensa 32-bit LX7 dual-core processor, capable of running at 240MHz
- Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory
- Onboard 1.14-inch 240x135 pixels 65K color IPS LCD display
- Integrated 2.4GHz WiFi and Bluetooth LE wireless communication
- WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes
- WiFi supports 1T1R mode with data rate up to 150Mbps
- Bluetooth supports high power mode (20dBm)
- Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
- Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port
- Equipped with plastic case and cables
- Provides online open-source demo and resources, more convenient for learning and development

More Details:
- www.waveshare.com/wiki/ESP32-S3-GEEK

1.USB-A
2.UART
3.GPIO
4.I2C
5.Micro SD Card slot
6.W25Q128JVSIQ    16MB NOR-Flash
7.ESP32-S3
8.BOOT button
9.Onboard antenna

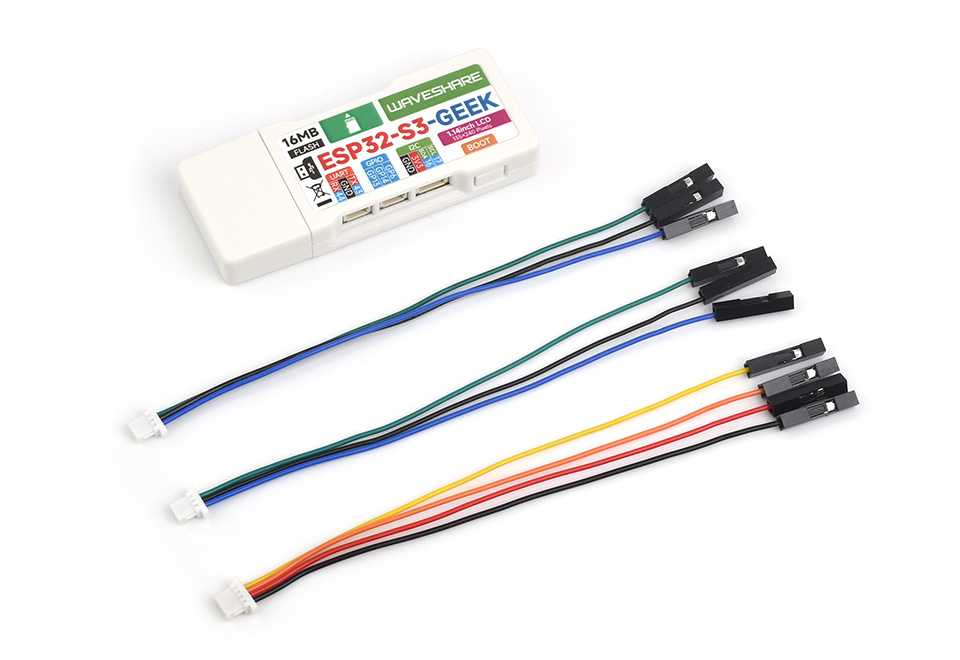

Package Included:
- 1 x Development Board
- 3 x Cables
