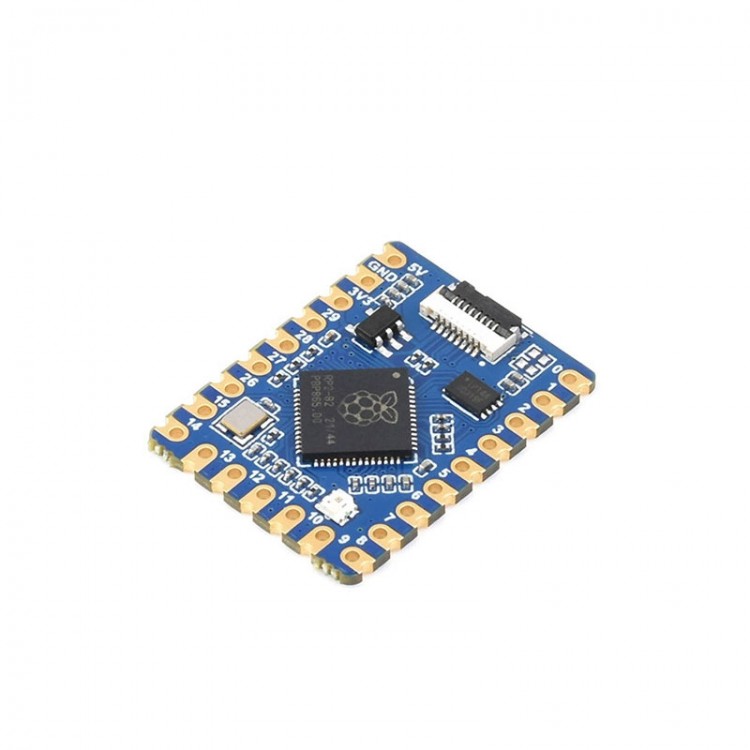

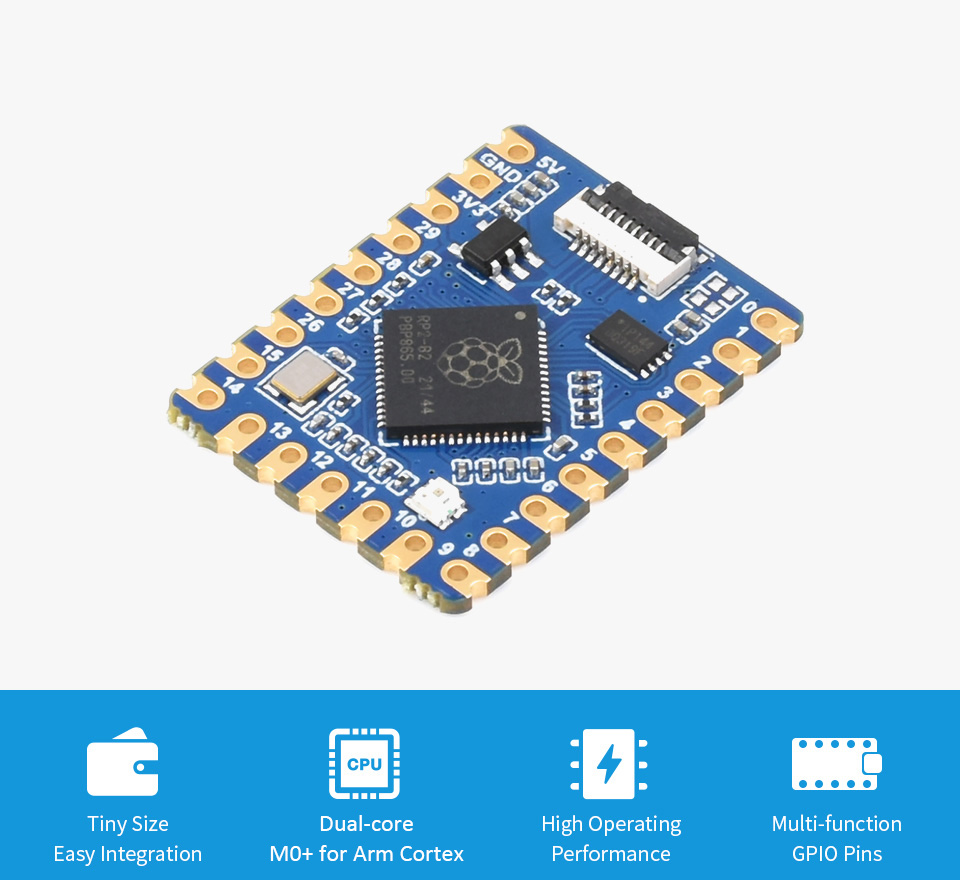

Waveshare RP2040-Tiny Micro Development Board 264KB SRAM 2MB Flash for C/C++ MicroPython Arduino
Features:
- RP2040 microcontroller chip for Raspberry Pi is used
- Dual-core M0+ processor for Arm Cortex and flexible clock running up to 133 MHz
- Built-in 264KB SRAM and 2MB onboard flash memory
- On-board FPC 8PIN interface. USB Type-C interface can be led out through an optional adapter board
- True stamp holes facilitate direct welding into user-designed motherboards
- USB1.1 host and device are supported
- Sleep mode with low power consumption and dormant mode
- Drag-and-drop download programs can be realized for mass storage via USB recognition

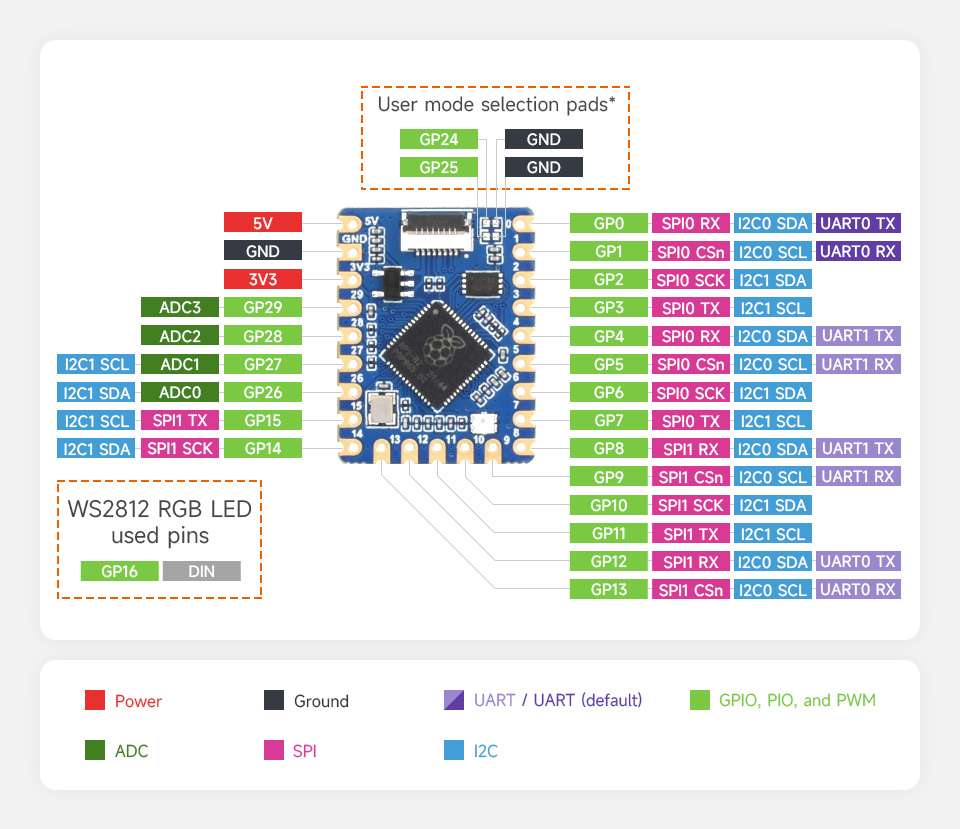

- 20 x multi-function GPIO pins
- 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC and 16 x controllable PWM channels
- Accurate on-chip clock and timer
- Temperature sensor
- On-chip accelerated floating-point libraries
- 8 x Programmable I/O (PIO) state machines for custom peripheral support
- For C/C++, MicroPython and Arduino. Comprehensive SDK, development resources, tutorials help you easily get started. 1. For Pico C/C++ SDK: The official C SDK for Raspberry Pi can be used from the command line, or from popular integrated development environments such as for Visual Studio Code and Eclipse. 2. MicroPython: MicroPython is a full implementation of the Python 3 programming language that runs directly on embedded hardware such as for Raspberry Pi Pico. 3. For Arduino IDE: IDE for Arduino is a open source electronic prototyping platform, which is convenient and flexible. It is easy to get started. After a simple learning, you can start to develop quickly

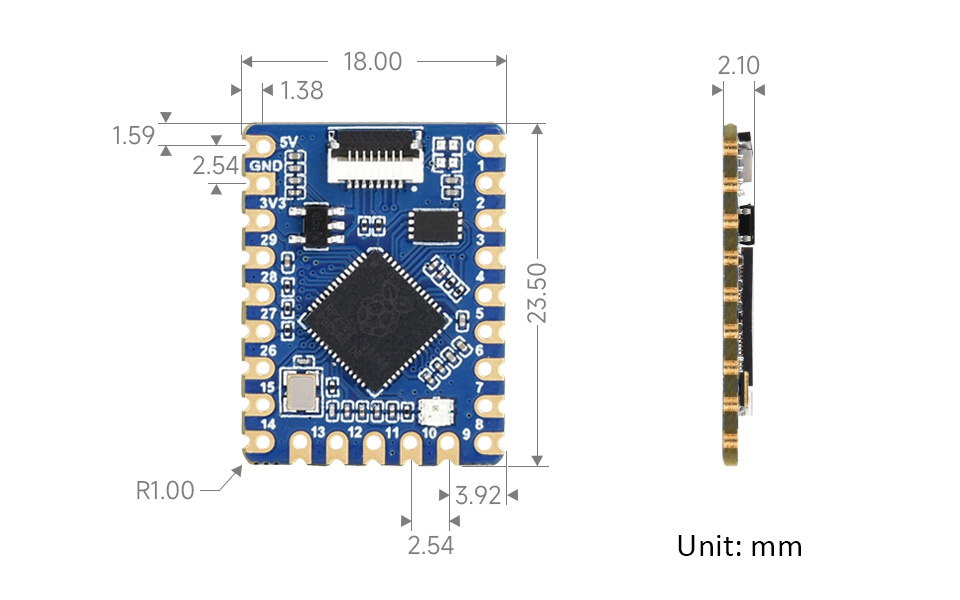

- Compact size: Stamp holes with immersion gold design, highly integrated packaging make it easy to embed into various products
Package Included:
- 1 x Development Board
Wiki: https://www.waveshare.com/wiki/RP2040-Tiny
Two 0402 resistor pads are reserved for user-mode selection resistors. You need solder the corresponding resistors or short the pads and complete the corresponding programming.

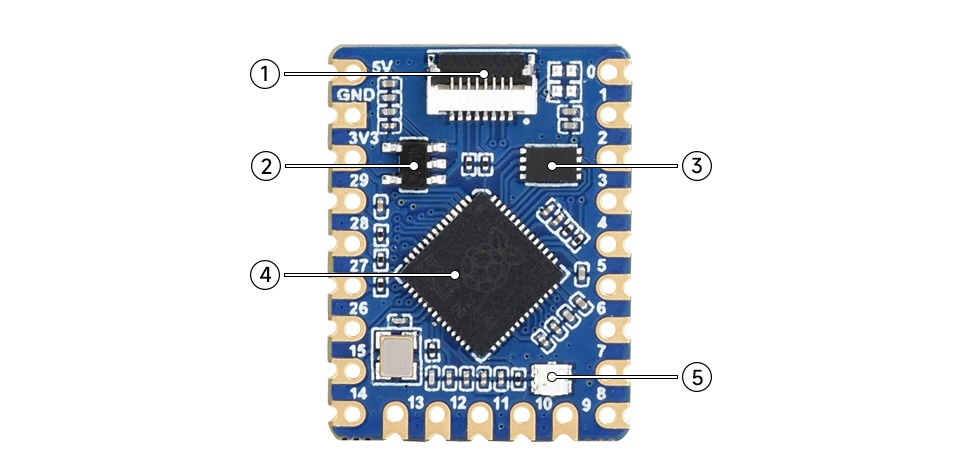

What's On Board?
1. FPC connector: 0.5mm pitch 8PIN
2. RT9193-33: 500mA low dropout, low noise and ultra-fast LDO
3. W25Q16JVUXIQ: 2MB NOR-Flash
4. RP2040: dual-core processor, up to 133MHz operating frequency
5. WS2812: RGB LED indicator light
