WB-SG1 Signal Generator 1Hz-6.4G RF Signal Source Adjustable Power 10MHz Reference Frequency

WB-SG1 Signal Generator 1Hz-6.4G RF Signal Source Adjustable Power 10MHz Reference Frequency

Features:
- Model: WB-SG1-6.4G
- Overview: 1Hz-6.4G broadband output, CH2 with amplitude adjustment, built-in OCXO, can be connected to an external reference
- CH1 frequency range: 1Hz-250MHz
- CH1 step: 1Hz-19.999999MHz/1Hz, 20MHz-250MHz/10Hz
- CH1 output amplitude: 3.3Vpp
- CH1 interface type: BNC
- CH2 frequency range: WB-SG1-6.4G: 13M-6.4G
- CH2 step: 1Hz
- CH2 reference output power: +5DBM to -7dBm at 1G
- Reference output power of each frequency point of CH2: 1G/8DBM; 2G/7.3DBM; 3G/8DBM; 4G/8.7DBM; 5G/9.9DBM; 6G/8.5DBM
- CH2 output impedance: 50 ohms
- CH2 interface type: SMA
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
- Internal reference year aging: 0.5Hz
- 10M reference output port power: 5dBm
- External reference input power range: 0dBm to +20dBm
- Operating modes: CH1 frequency mode, CH2 frequency mode, CH1 frequency sweep mode, CH2 frequency sweep mode

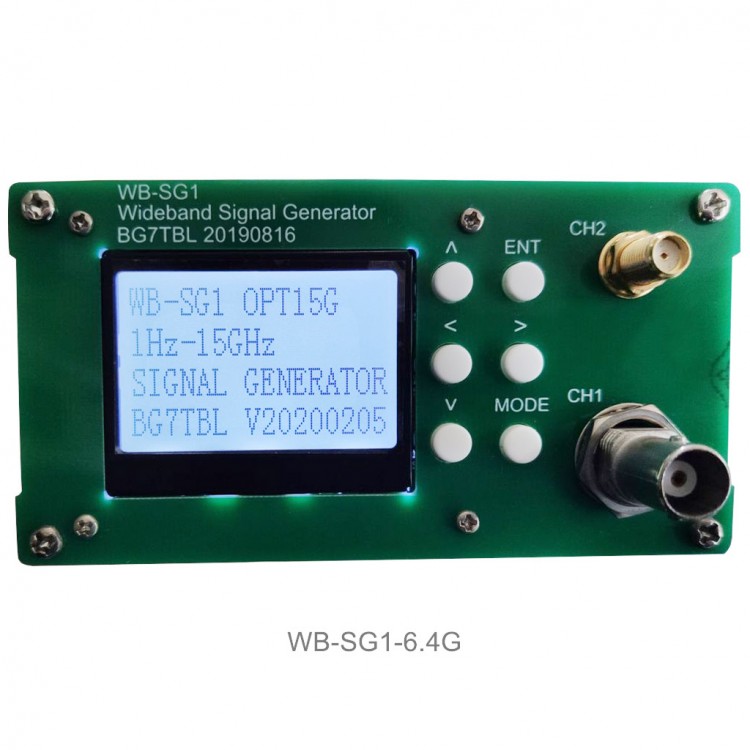

Front Panel's Functions:
MODE: operating mode conversion
ENT: input data
<>^V: Left/right/up/down buttons
CH1: Channel 1 output
CH2: Channel 2 output

Rear Panel's Functions:
10M REF INPUT: external 10M reference input
10M REF OUTPU: 10M reference output
USB: USB port
STD ADJ: internal OCXO frequency fine tuning
ON/OFF: switch
With a DC socket

Specifications:
- Power supply: 11.7-12.5V, start: <0.5A, stability: <0.25A
- Dimensions: 106*55*105mm (LxHxD)
- Weight: 350g
- Accessory: 1pcs DC 12V power adapter

Package Included:
- 1 x Set of Signal Generator

Optional Battery Parts:
1. External Battery Parts: with 3pcs 12V 2.6AH 18650 batteries
2. Internal Battery Parts: built-in 2pcs 2.6AH 18650 batteries

Note:
- If battery parts are needed, please contact us to cover the cost.
