WB-SG2 20MHz-9.5GA Wideband Signal Generator Built-in OCXO Adjustable Output Power with 3.2-inch Screen

Availability: In stock, usually dispatched in 1 business day

  • Price:$315.95
  • Price in reward points: 3160 Reward Points: 32
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $309.63 $303.31 $293.83 $281.20 Contact US
Quantity:

WB-SG2 20MHz-9.5GA Wideband Signal Generator Built-in OCXO Adjustable Output Power with 3.2-inch Screen

Description:

- WB-SG1/SG2-9.5GA is a signal generator with extremely low price, compact size, wide frequency range, and adjustable output power. The panel layout is efficient, easy to operate, and fast. Built in high-precision OCXO, with high frequency stability and accuracy, fast frequency response time, and high frequency purity. The output frequency is continuously adjustable from 1Hz to 9.5GHz, covering audio, video, intermediate frequency, radio frequency, microwave frequency, and is widely used in the research and development, production, testing, and other occasions of various instruments, radio frequency systems, communication systems, receivers, transmitters, and other equipment. The minimum frequency resolution is 1Hz, which can be conveniently used for narrowband systems. This instrument provides on/off modulation. All relevant parameters such as frequency and amplitude are displayed on the LCD for easy clarity. Equipped with sweep frequency signal output, convenient for testing and application.

Features:
- Powerful performance, and high cost-effectiveness.
- Wide frequency range, from 1Hz-9.5GHz.
- Step by step minimum 1Hz, with on/off modulation capability.
- Four way buttons, easy to operate.
- With reference inputs and outputs, convenient for precise control and synchronization.
- Equipped with frequency sweep function, it can be used as a frequency sweep signal source.
- Equipped with USB communication and can be externally programmed.

CH1 Parameter:

- Frequency range: 1Hz-250MHz
- Frequency step: 1Hz-19.999999MHz/1Hz, 20MHz-250MHz/10Hz
- Output amplitude and waveform: 3.3Vpp, square wave, HCMOS level
- Interface type: BNC

CH2 Parameter:
- Frequency range: 20MHz - 9.5GHz
- Frequency step: 1Hz
- Output power: -10dBm ~ +13dBm
- Power step: 0.1dB
- Output impedance: 50 ohms
- Modulation method: on/off modulation
- Modulation frequency: 1Hz-2MHz
- Interface type: SMA

General Parameters:
- Output frequency accuracy: converted to+/-0.1Hz below 10M,
- Internal benchmark: 10MHz, OCXO, annual aging 0.5Hz, preheating time 30 minutes
- Reference output: 10MHz/+12dBm
- External reference input: 10MHZ, 0dBm ~ +20dBm
- Communication port: USB (serial port displayed when plugged into the computer)
- Screen parameters: SG1-1.7 inches/SG2-3.2 inches, black and white screen, 128 x 64 resolution
- Usage temperature: +10 to +50 degrees Celsius
- Storage temperature: -10 to +50 degrees Celsius
- Power supply: 11.7-12.5V, starting: <0.7A, stable: <0.4A
- External dimensions: length x height x depth = 127 x 75 x 143mm
- Weight: 0.7kg

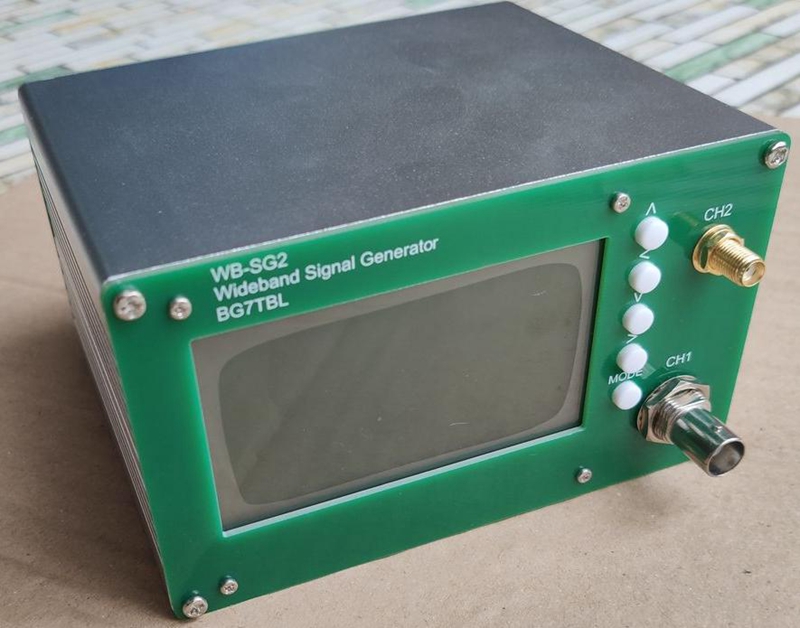

Front Panel Functions:
- MODE: operating mode conversion
- <>^V: Left/right/up/down buttons
- CH1: Channel 1 output
- CH2: Channel 2 output

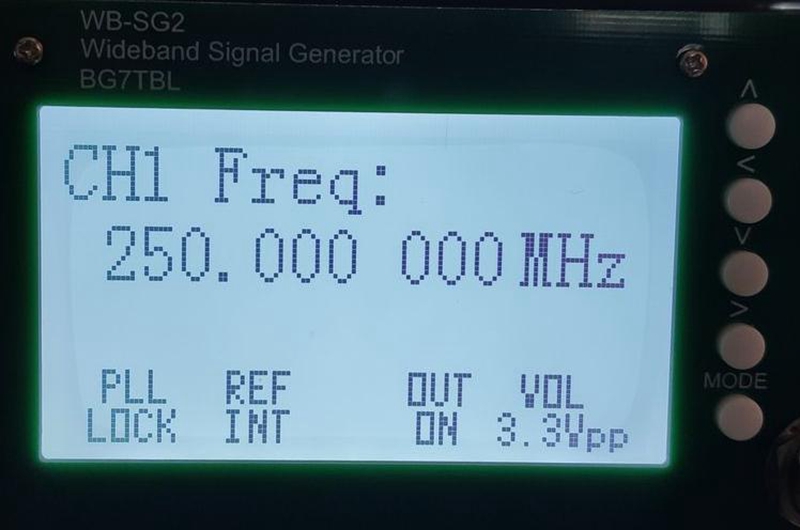

- LCD screen: display corresponding parameter

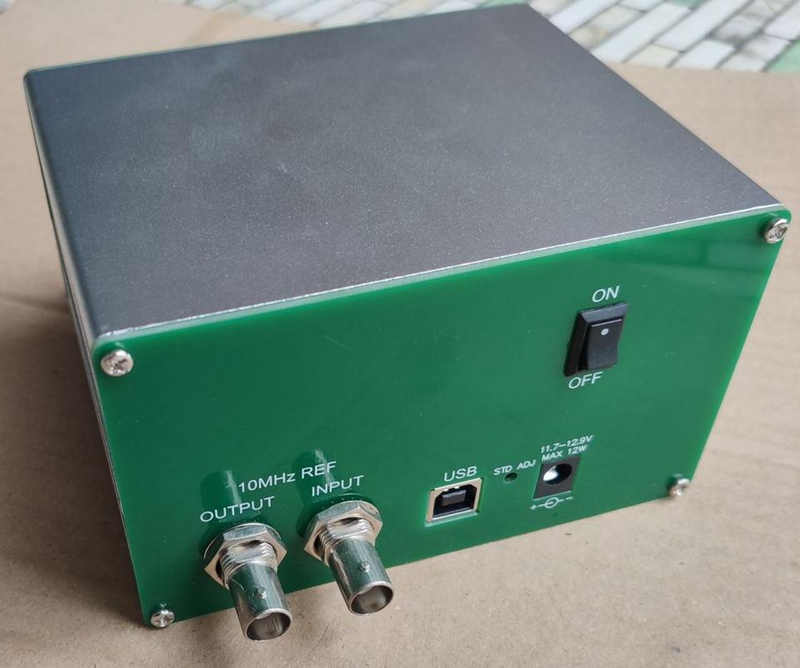

Rear Panel Functions:
- 10M REF INPUT: external 10M reference input
- 10M REF OUTPU: 10M reference output
- USB: USB port
- STD ADJ: internal OCXO frequency fine tuning
- ON/OFF: switch
- With a DC socket

Package Included:
- 1 x Signal Generator
- 1 x DC12V Power Adapter
