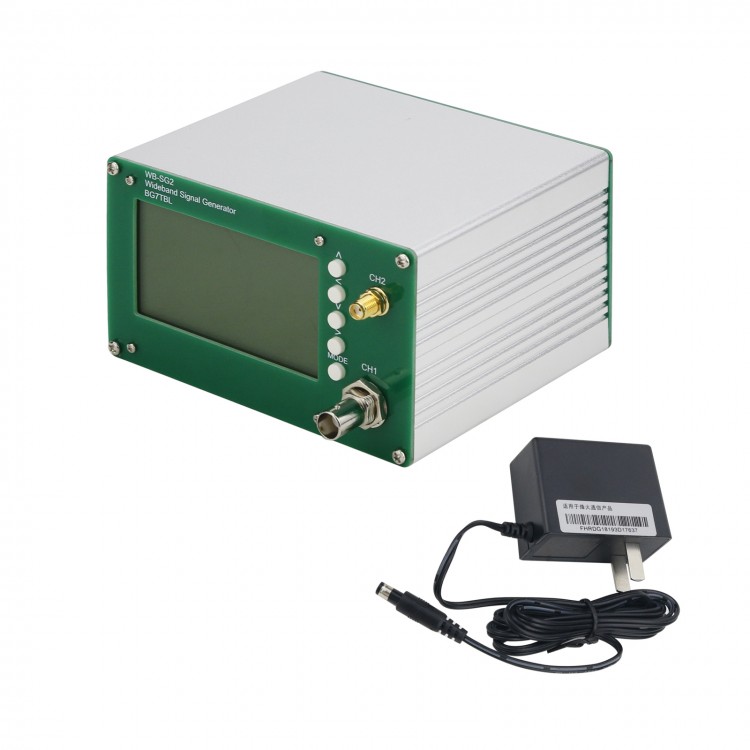

WB-SG2 Wideband Signal Generator BG7TBL Signal Source Device 1Hz-20GHz With 3.2" LCD WB-SG2-20G
Features:
- Model: WB-SG2-20G
- Overview: 1Hz-20GHz broadband output, built-in OCXO, can be connected to an external reference
- CH1 frequency range: 1Hz-250MHz
- CH1 step: 1Hz-19.999999MHz/1Hz, 20MHz-250MHz/10Hz
- CH1 output amplitude: 3.3Vpp
- CH1 interface type: BNC
- CH2 frequency range: WB-SG2-20G: 10M-20GHz
- CH2 output impedance: 50 ohms
- CH2 interface type: SMA
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
- Internal base year aging: 0.5Hz/year
- 10M reference output port power: 5dBm
- External reference input power range: 0dBm to +20dBm
- Screen size, resolution: 3.2 inches, 128*64
- Operating modes: CH1 point frequency mode, CH2 point frequency mode, CH1 frequency sweep mode, CH2 frequency sweep mode
- Power supply: 11.7-12.5V; Start: <0.5A; Stability: <0.25A
- Dimensions: 127*75*135mm (LxHxD)
- N.W.: 450g
- Accessory: one DC 12V power adapter
Front Panel Introduction:
MODE: Operation mode conversion
<>^V: Left/right/up/down buttons
CH1: Channel 1 output
CH2: Channel 2 output
Rear Panel Introduction:
10MHz REF INPUT: External 10M reference input
10MHz REF OUTPUT: 10M reference output
USB: USB port
STD ADJ: Internal OCXO frequency fine-tuning
ON/OFF: Switch
With a DC socket
Package Included:
- 1 x Set of Signal Generator
