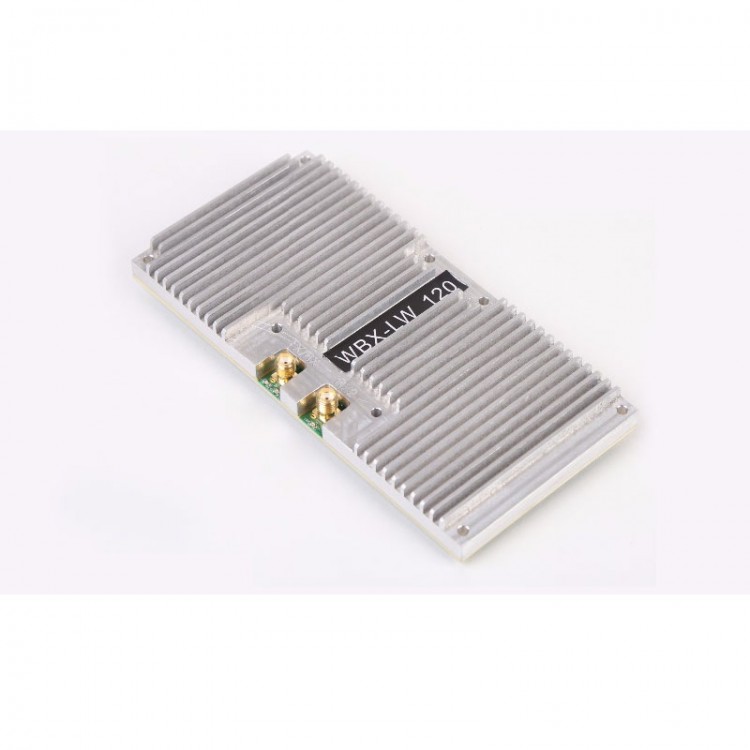

WBX-LW 120MHz RF Transceiver Board SDR RF RX TX Daughterboard Compatible with USRP
Main Features:
- Frequency Coverage: 50 MHz - 2.2 GHz
- Maximum Bandwidth: 40 MHz or 120 MHz
- WBX RF daughter board contains a full-duplex wideband transceiver that supports up to 120 MHz of instantaneous bandwidth
- Applications: Widely used in public safety, communications, amateur radio, and ISM fields
- Local oscillator's receiving and transmitting chains operate independently, enabling frequency duplex operation
- The reference for the local oscillator is the master clock from USRP, allowing multiple coherent operations
- Suitable for USRP-LW X300 / x310 devices
Functional Description:
WBX-LW-40 provides a high-bandwidth transceiver, which can provide power output up to 100mw with a noise figure of 5 dB. The receiving and transmitting chains of local oscillator operate independently, enabling synchronization for MIMO. It is an ideal SDR device for those applications whose frequency range is between 50MHz and 2200 MHz. It can be applied to WiFi, WiMAX, S-band transceivers and 2.4 GHz ISM band transceivers.
Applications:
- Land mobile communications, maritime and aviation band radios, cell phone base stations, PC and GSM multi-band radios, coherent multi-base radars, wireless sensor networks, broadcast television, public safety management, etc.
- Suitable for USRP-LW N200, USRP-LW N210, USRP-X310, USRP-X300.
Package Included:
- 1 x RF Transceiver Module
