WCH USB2.0-Monitor Portable High Speed USB2.0 Bus Analyzer Support for Windows 7 and Above Systems

WCH USB2.0-Monitor Portable High Speed USB2.0 Bus Analyzer Support for Windows 7 and Above Systems

Description:
- USB bus analyzer is also known as USB Monitor.
- USB (Universal Serial Bus, Universal Serial Bus) is a popular PC peripheral interface, with a simple shape, stable performance, power saving, fast transmission speed and flexible operation, etc., has been more and more people to use, although the USB interface is simple and convenient to use, but the development of the USB interface products is more complex than the previous interface development.
- USB Monitor has a certain protocol analysis capabilities, applicable to the development of USB electronic products, design, development and testing of USB products is an indispensable tool for designers, but also the USB self-study of the right hand, so that the USB learning is no longer boring.
- USB Monitor can be in the USB bus data quickly, comprehensively and accurately recorded and displayed. And by analyzing the recorded data, it can quickly find problems and errors, thus speeding up the development of USB products and reducing the time-to-market cycle of USB products, as well as improving the competitiveness of USB products in the market.
- USB Monitor can also be used as a test device to check the stability of USB products, making them more stable and more reliable to use.

Features:

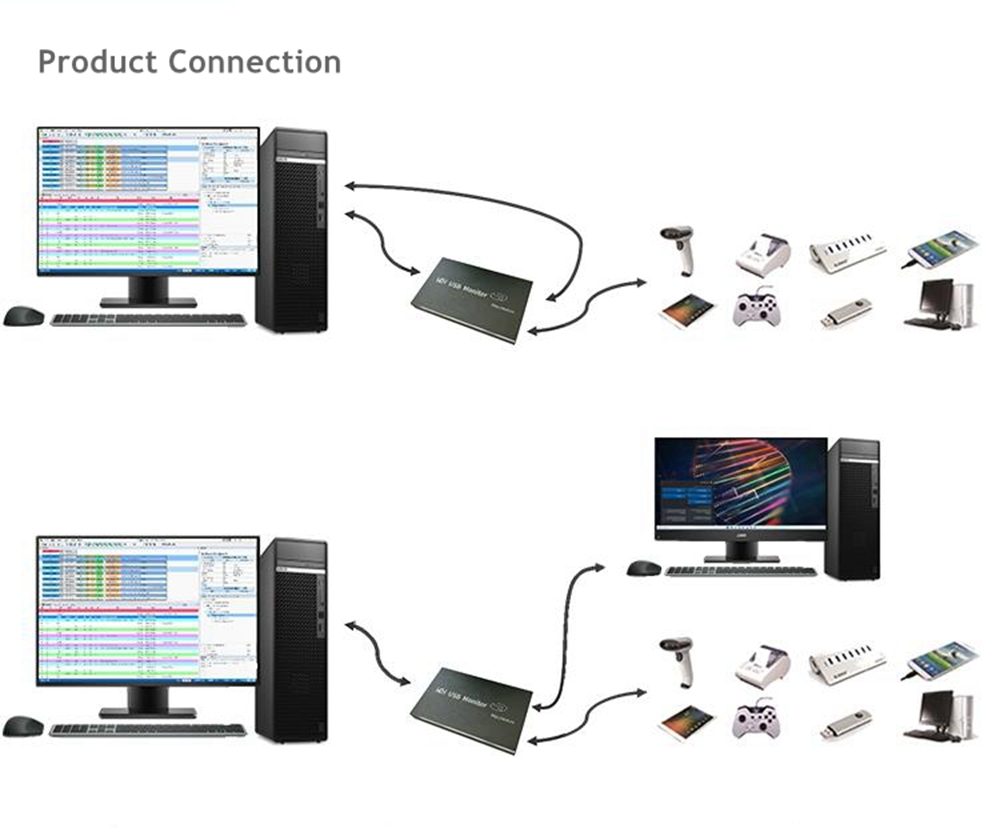

- USB 2.0 transmission interface, automatically identifies high-speed/full speed/low-speed USB peripherals, non-invasive USB bus real-time monitoring.

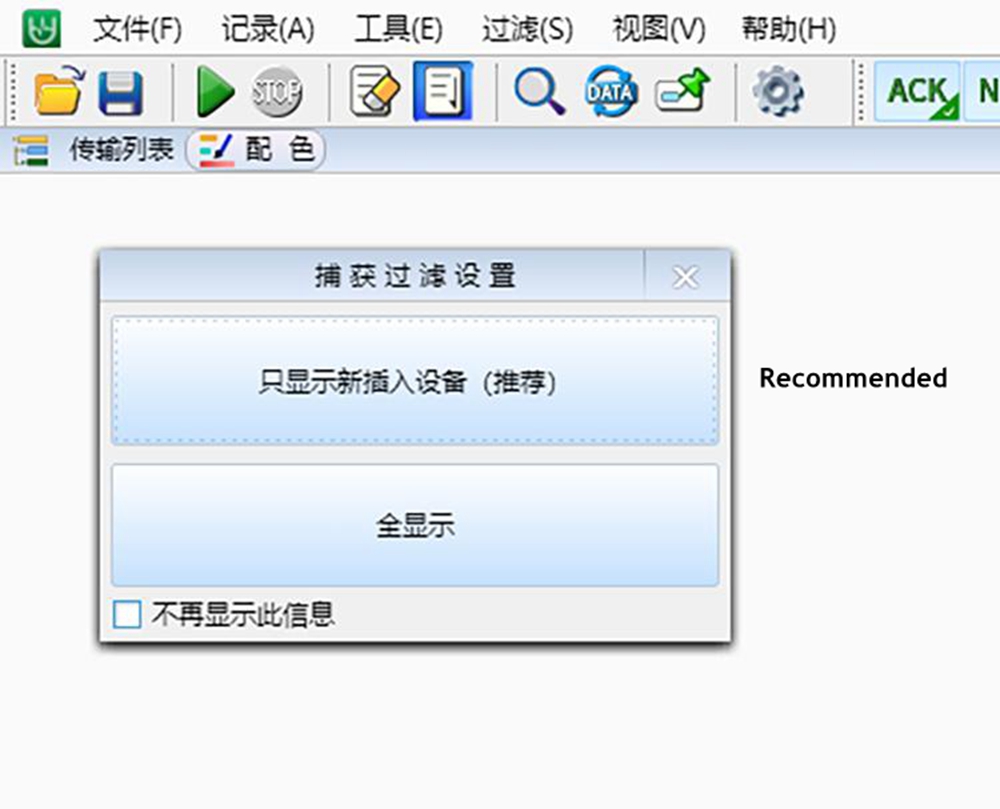

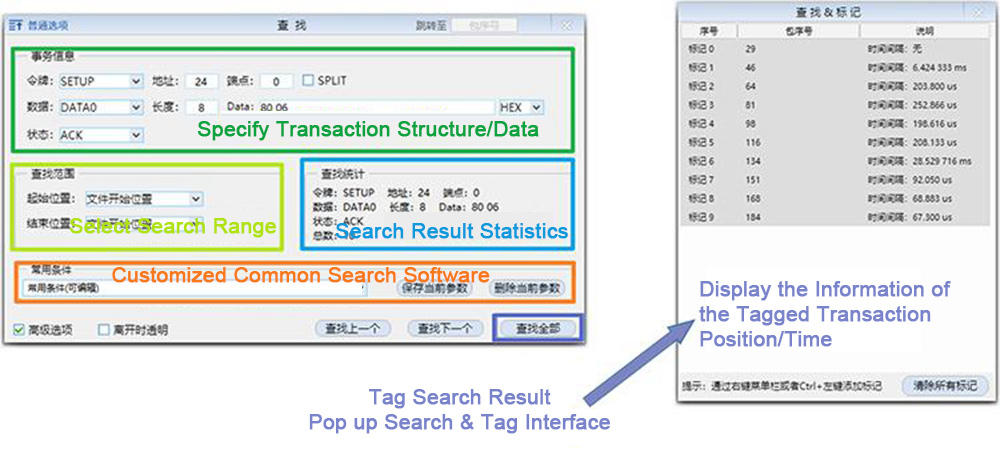

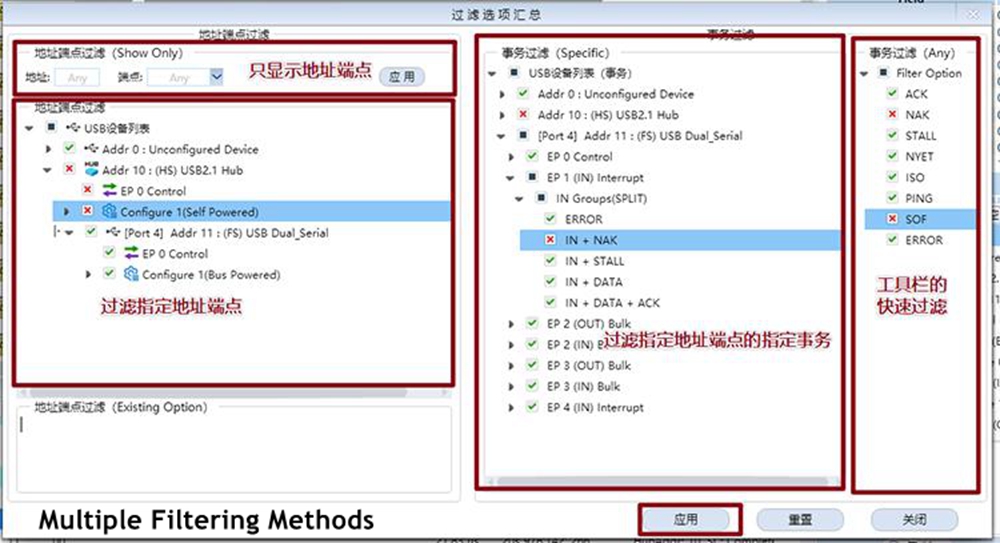

- Efficiently filtering out key information, fast filtering operation is simple, and supports complex filtering combinations.
- Support customization of protocols, secondary development modules, structures, and colors.

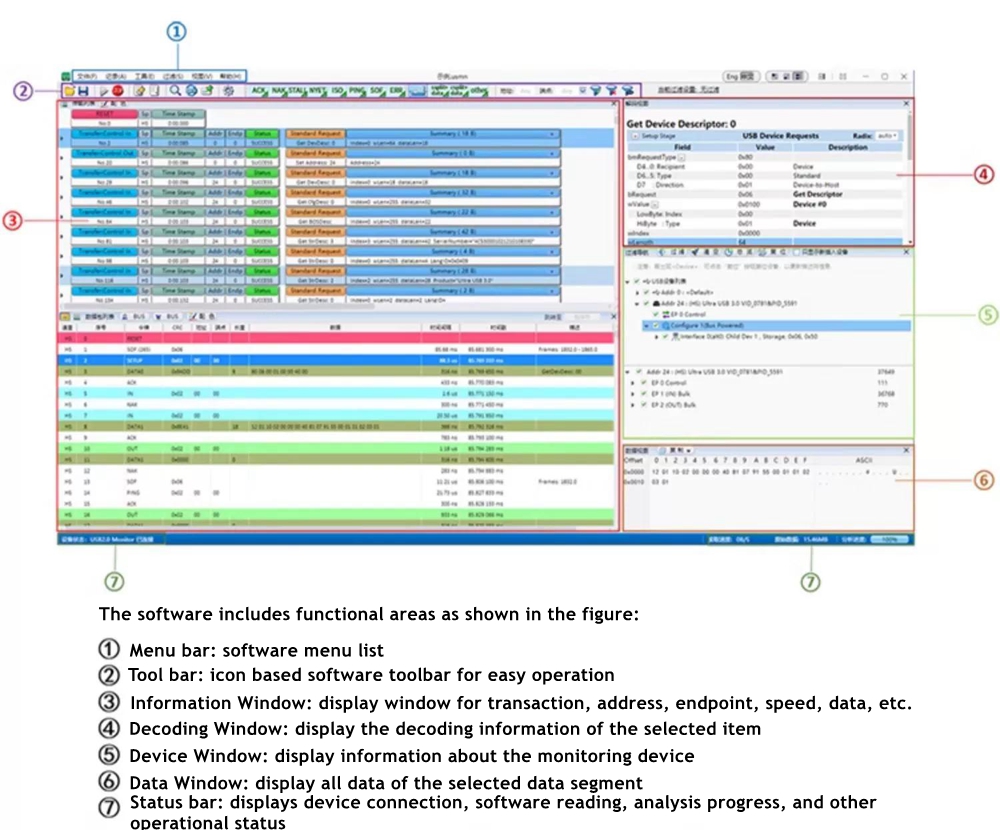

- The key information is clear, the device list is automatically generated, the device information is displayed friendly, and the descriptor structure is clear.

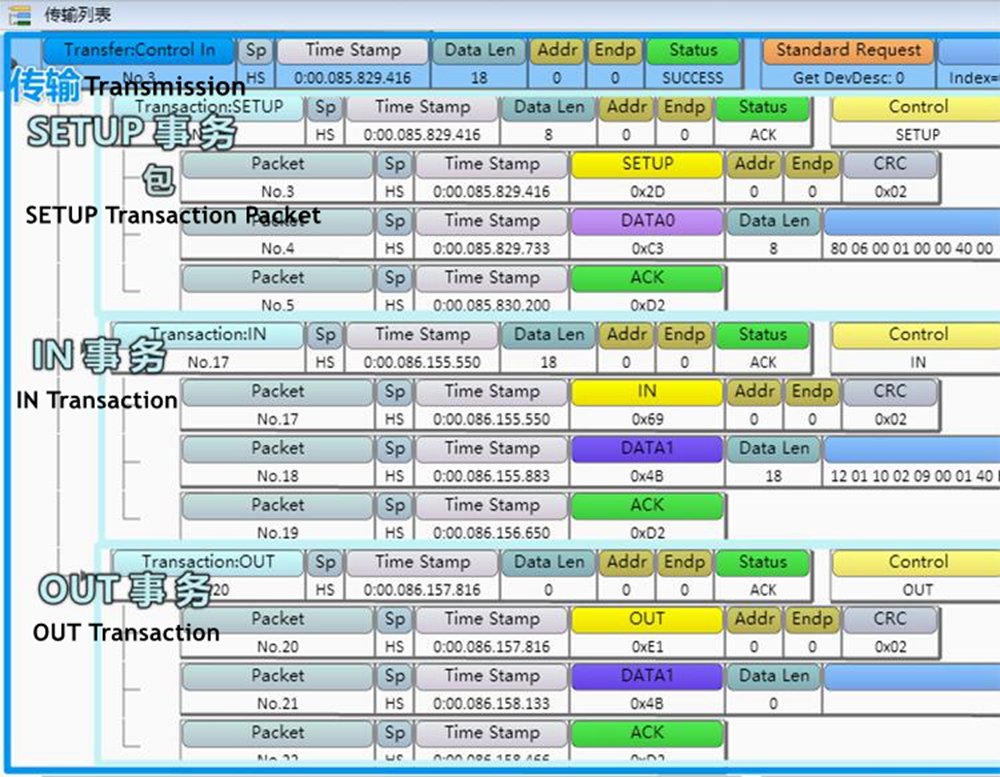

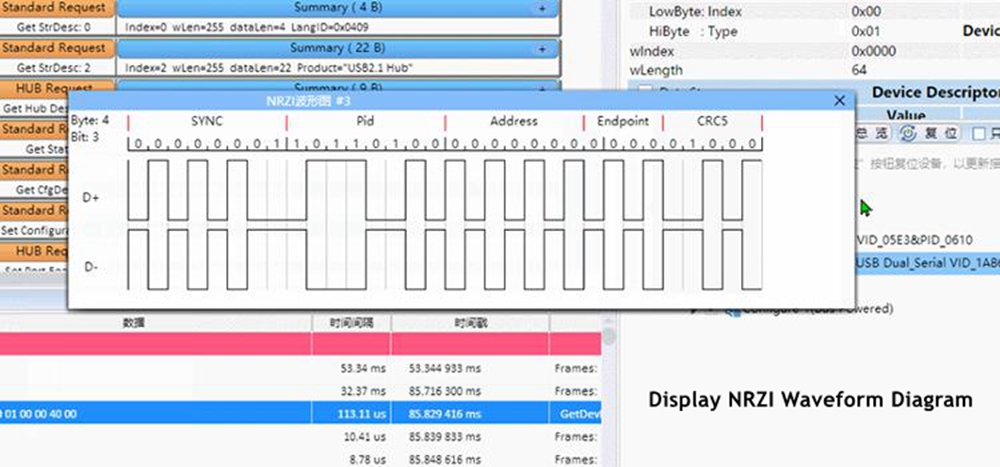

- Accurate analysis and statistics, USB bus events and error analysis, statistics of USB transactions on the bus, and analysis of protocol content.
- For Windows mainstream systems are fully compatible, supporting operating systems for Windows 7/8/8.1/10/11 and above.

Software Link:
- https://www.wch.cn/downloads/USB20Monitor_ZIP.html

Computer Configuration Requirements:
Minimum Configuration:
- CPU Clock: 1GHz
- RAM: 512 MB
- Hard Drive Space: 1GB
- USB Port: USB 2.0
- Operating System: for Windows 7 and above

Recommended Configuration:
- CPU: 2GHz and above
- Memory: 2GB and above
- Remaining Hard Drive Space: 2GB and above
- USB port: USB2.0
- Operating System: for Windows 7 and above

Package Included:

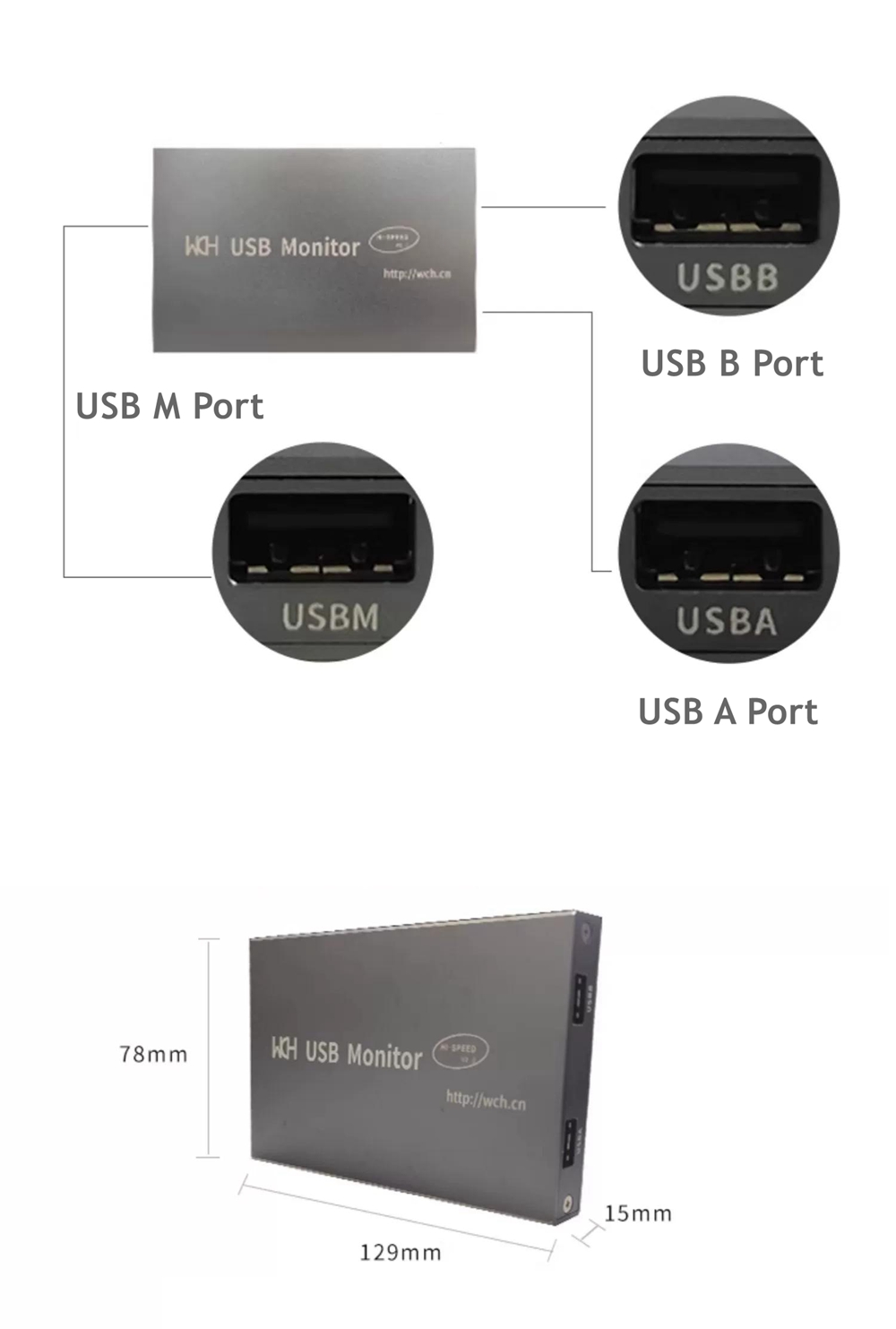

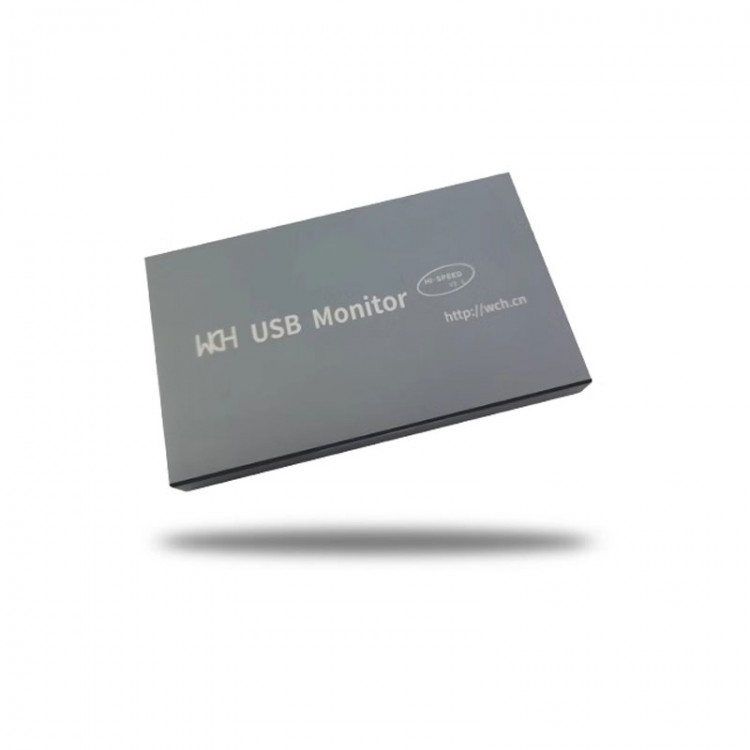

- 1 x USB2.0 Bus Analyzer
- 2 x USB Cable
