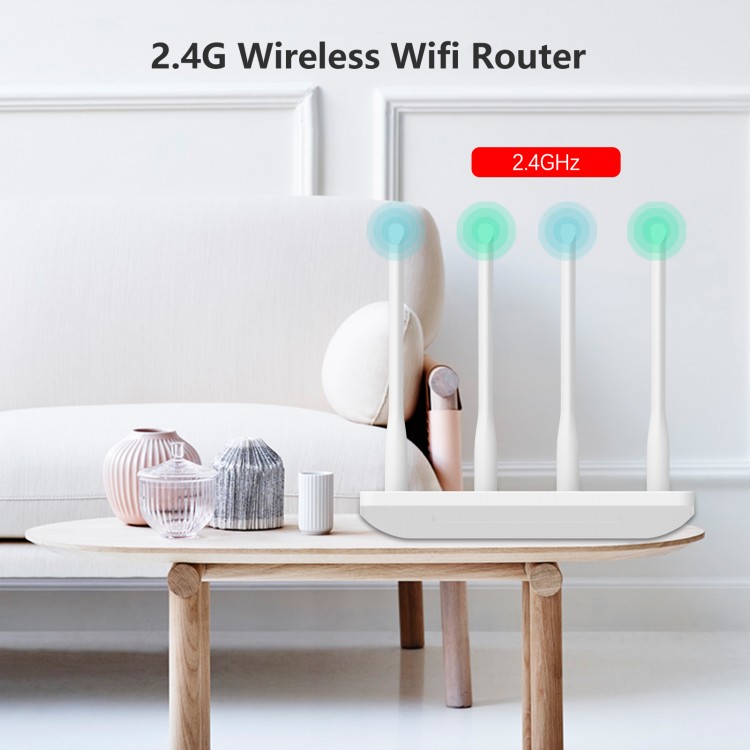

WE1688 2.4GHz 300Mbps Wireless Wifi Router 2 LAN Ports MT7628NN Chip 8M+64M for Family Use

WE1688 2.4GHz 300Mbps Wireless Wifi Router 2 LAN Ports MT7628NN Chip 8M+64M for Family Use

Features:
- MT7628NN solution, the main frequency is up to 580MHZ, featuring strong and stable performance
- Support IEEE 802.11b, IEEE 802.11g, IEEE 802.11n wireless standard
- Support IEEE 802.3, IEEE 802.3u standard, 1 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX)
- 2 10/100M adaptive LAN ports with automatic flip (Auto MDI/MDIX)
- Wireless transmission rate up to 300Mbps
- Support one-button RESET function
- Support WEP, WPA, WPA2 and other security encryption modes
- Support webpage one-click brush mode, users can easily refresh

Hardware Specifications:
- Main Chip: MT7628NN/580MHZ
- Memory: DDR2 64MB (up to DDR2 256MB)
- FLASH: SPI 8MB (up to 32MB)
- Protocol Standard: IEEE802.11n/802.11g/802.11b/802.3/802.3u
- Wireless Rate: up to 300Mbps
- Working Frequency Band : 2.4GHZ
- RF Output Power:
  11N: 17dBm±1dBm
  11G: 17dBm±1dBm
  11B: 19dBm±1dBm
- Receiving Sensitivity:
  11N HT20 MCS7: -72dBm
  11N HT40 MCS7: -69dBm
  11G 54Mbps: -74dBm
  11B 11Mbps: -86dBm
- Antenna: 2 5dbi high gain omnidirectional antennas, 2 auxiliary antennas
- Interfaces: One 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX); Two 10/100M adaptive LAN ports with automatic flip (Auto MDI/MDIX);
- LED: power
- Button: 1 Reset button
- POE Power Supply: not supported
- Power Adapter: DC 9V/600mA
- Product maximum power consumption: < 5W

Software Specifications:
- Factory Default Setting: IP address: 192.168.1.1; User/password: root/admin
- WAN Access Mode: PPPoE, dynamic IP, static IP
- Working Mode: ROUTER (can be customized to increase AP mode);
- DHCP Server: DHCP server; client list; static address allocation;
- Virtual Server: port forwarding; DMZ host
- Security Settings: wireless encryption, support WEP, WPA, WPA2 and other security encryption mode
- DDNS: Not supported
- VPN: Not supported
- WEB Theme Switching: not supported
- Bandwidth Control: Not supported
- Static Routing: support
- System Log: support
- Other Useful Features: configuration file import and export; Web software upgrade and so on

Other Parameters:
- Working Temperature: 0℃ to 40℃
- Storage Temperature: -40℃to 70℃
- Operating Humidity: 10% to 90% RH (does not condense)
- Storage Humidity: 5% to 90% RH (does not condense)

Package Included:
- 1 x Wireless Wifi Router with 4 Antennas
- 1 x Power Adapter
- 1 x Ethernet Cable 1M
