| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $34.10 | $33.41 | $32.36 | $30.97 | Contact US |

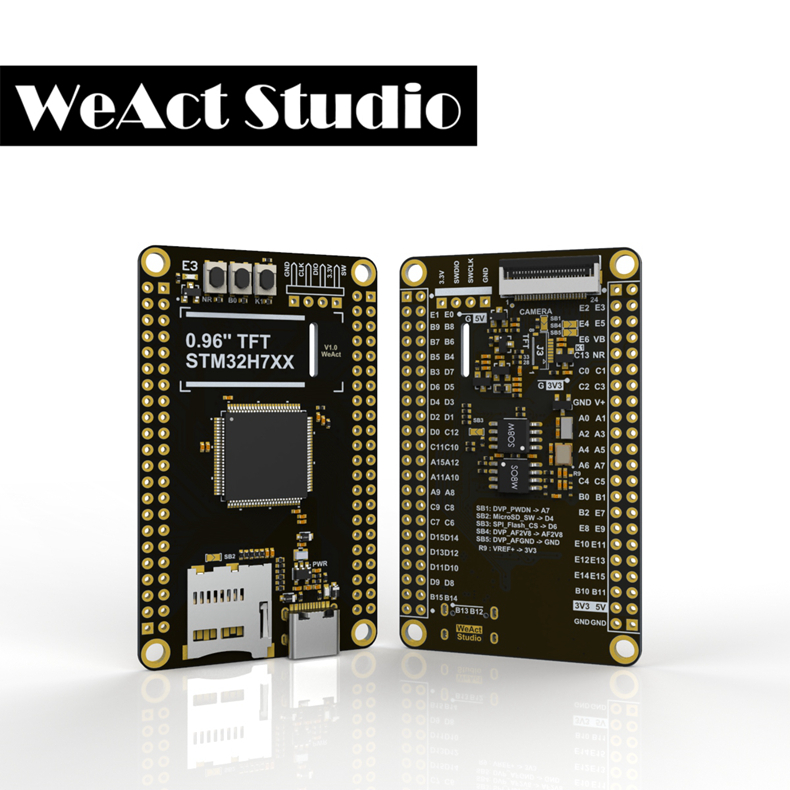

WeAct Studio STM32H750VBT6 Development Board Minimum System Board STM32H7 Core Board
Download Link:
https://github.com/WeActTC/MiniSTM32H7xx.git
Information:
1. STM32H750VBT6 480Mhz, 128KB ROM, 1024KB RAM
2. Architecture (for ARM Cortex M7) with FPU (floating point unit), complete DSP instruction and memory protection unit MPU
3. 8MB SPI Flash, 8MB QSPI Flash (Executable program)
4. Gold immersion TG155 plate, four layer plate design
5. Lead-free welding process is adopted
6. Use the button to set BOOT
7. High-quality crystal oscillator, with metal shell, can start oscillation
8. Always use the original chip for ST
9. USB C interface, Mirco SD card seat and buttons all do ESD protection, DCMI camera interface, with 1.5V and 2.8V power supply, no external transfer board, support automatic focus function
10. Support for OpenMV4 development
11. Support C language development
Package Included:
- 1 x Core Board
- 2 x Pin Headers (2x22P)
- 1 x 4P Pin Header
