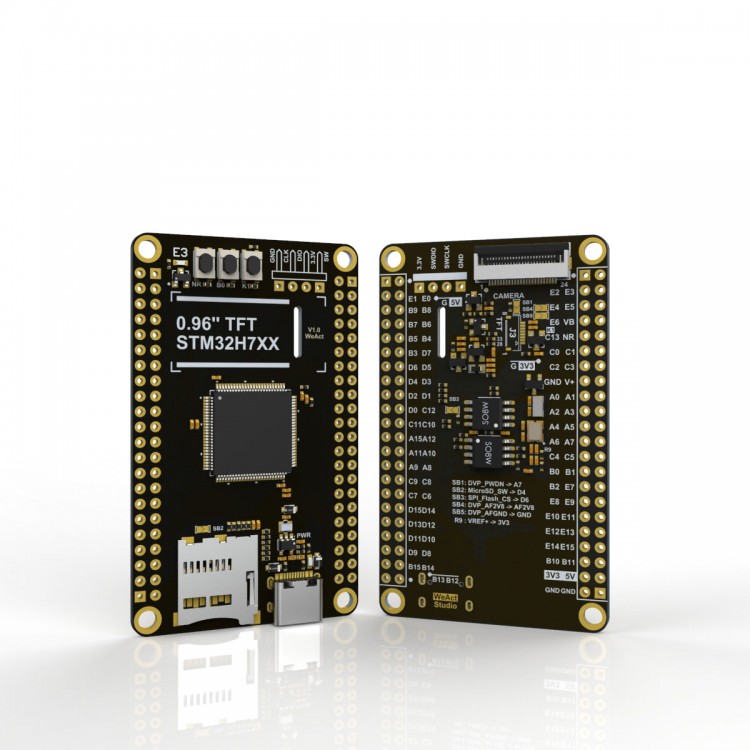

WeAct Studio STM32H7B0VBT6 Development Board Minimum System Board STM32H7 Core Board w/ 0.96" Screen

WeAct Studio STM32H7B0VBT6 Development Board Minimum System Board STM32H7 Core Board w/ 0.96" Screen

Information:
1. STM32H7B0VBT6 280Mhz, 128KB ROM, 1.4MB RAM
2. Architecture (for ARM Cortex M7) with FPU, complete DSP instruction and memory protection unit MPU
3. 8MB SPI Flash, 8MB OSPI Flash (Executable program)
4. Gold sink TG155 plate, four layer plate design
5. Lead-free welding process is adopted
6. Use the button to set BOOT
7. Using high quality crystal vibration, metal shell, can be good vibration
8. Always use the original ST chip
9. USB C interface, Mirco SD card seat and buttons all do ESD protection, DCMI camera interface, with 1.5V and 2.8V power supply, no external transfer board, support auto focus function
10. Support C language development

Interface and Keys:
- 2*22 Pin 2.54mm I/O x 2
- 4 Pin 2.54mm SW x 1
- USB C (type C) x 1
- MicroSD TF x 1
- 8Bit DCMI x 1
- User Key K1 (PC13) x 1
- NRST Key x 1
- BOOT0 Key x 1

Design and Quality:
- TG155 plate with gold sinking process is designed with four layers
- Use Lead-Free welding process
- Use the button to set BOOT
- Use high quality crystal vibration, metal shell, all can be good vibration
- Always use the original ST chip

Attention:
- We do not provide the factory test firmware to prevent the appearance of duplicates affecting the quality

Power supply and Board Shape:
- Input Voltage: 3.3V-5.5V
- DC-DC Output Current: 1A Max.
- Size: 66.88mm x 40.64mm

More Information:
https://github.com/WeActTC/WeActStudio.MiniSTM32H7B0.git

Package Included:
- 1 x Core Board
- 2 x Pin Headers (2x22P)
- 1 x Pin Header (1x4P)
- 1 x 0.96" TFT Screen
