Product Description:
- ARM M3 high speed inner core
- 6 bit high accuracy display
- PC USB upper system
- 128x128 full screen,1.44 inch color LCD display
- 1.2V low voltage nickel-metal hydride battery
- U3 SE can extend external NTC temperature test
- ARM Cortex M3 high speed 32 bit CPU,USB interface,USB HID free drive update firmware.
- USB HID free drive connect upper system,can choose wireless bluetooth module,support IOS,Android Mobile phone wireless connection,can custom full screen image,independent serial number each machine,built-in separate NTC temperature sensor,can external connect temperature detector,direct plug screenshot function
- U3 SE voltage current capacity tester

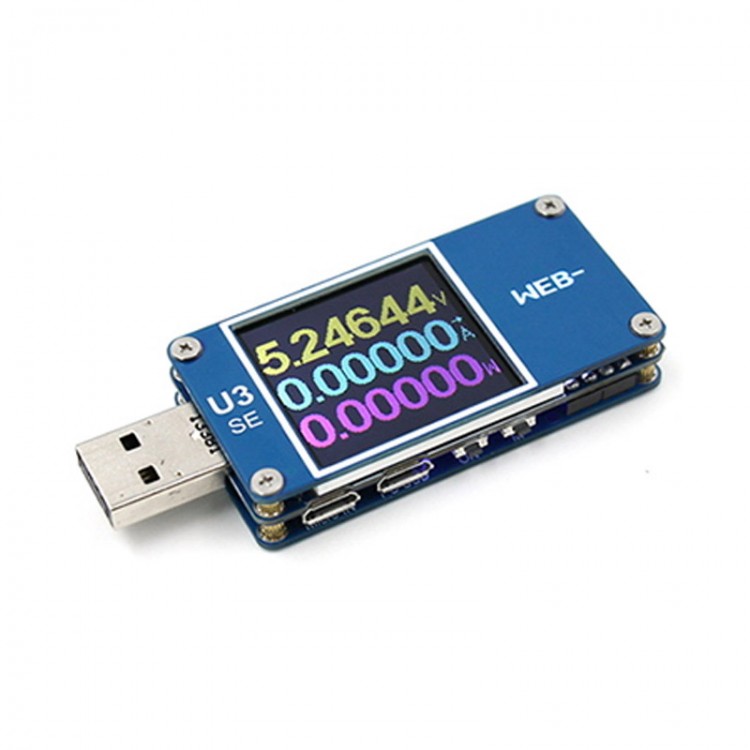

WEB-U3 SE Current voltage meter Ammeter voltmeter
- Main chip:GD32F150 ARM M3 inner core
- Display:1.44 inch color TFT;resolution:128x128
- Size:58.8x29.6x10mm
- USB interface:USB2.0A male;USB2.0A female
- MicroUSB:2pcs:1 input,1PC HID
- Type-c:2pcs:In and Output
- Button:2pcs:OK and M key
- Temperature sensor:inner 1pcs,can external connect the second one (optional)
- Temperature test:-40~180
- D+D-voltage:support testing
- Fast charge protocol:support testing
- PD trigger:support CCI,CC2 independent trigger 5V
- Storage:FRAM ferroelectric (10 billion writing brush life)
- Static power dissipation:screen off,switch off data interface <10mA
- Internal resistance:connect USB interface,about 35m ohm
- Voltage:DC 4~24V
- Current:0-5A
- Voltage resolution:0.0001V
- Voltage accuracy:range 0.1%+-nd
- Current resolution:0.0001A
- Current accuracy:range 0.1%+-nd
- Ampere hour capacity:99999Ah (6 group)
- Ampere hour resolution:0.0001Ah
- Watt hour capacity:99999Wh (6 group)
- Watt hour resolution:0.0001Wh
- Power on time:100 hours
Charge time:100 hours
- Firmware update:USB HID free drive
- PC upper system:USB HID free drive
- Serial number:built-in independent SN recognise serial number
Package List:
- 1 x WEB-U3se USB Voltage Ammeter Capacity Tester
