Wefly JF-17 Thunder 10.4 Inch JF17 MFCD Display 1024x768 LCD for DCS World & Other Flight Simulation

Wefly JF-17 Thunder 10.4 Inch JF17 MFCD Display 1024x768 LCD for DCS World & Other Flight Simulation

Description:

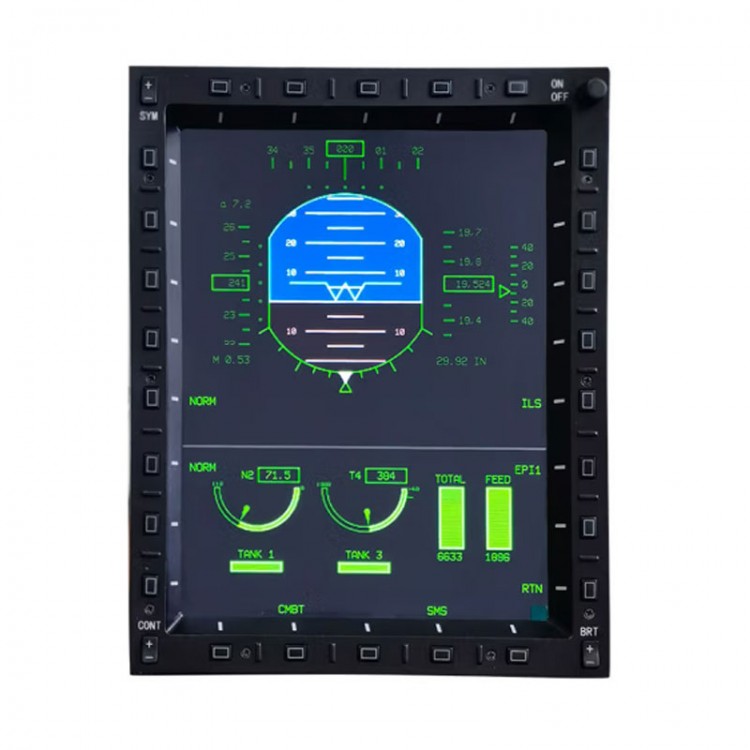

The Thunder JF-17 has 3 large Multi-Function Colour Displays as its primary instrumentation for flight in addition to the HUD and the UFCP. Each MFCD is fully capable of displaying full-colour imagery and is divided into two sections, a Primary Display along the top and a Secondary Display underneath, sectioned off by a white dividing line. The MFCDs are controlled using a series of 26 On Screen Buttons, 8 along the left and right and 5 along the top and bottom. Control of the image over the entire MFCD is accomplished by 3 rocker switches in the top right, bottom right and bottom left corners, controlling Symbology Brightness, Image Contrast and Image Brightness respectively, and power is controlled through a 2 position rotational switch in the top left corner, initialised to on by default.

Primary Display Pages are accessed either through the Main Menu Page, through the Data Submenu for Data Pages, or using the quick access OSBs at the bottom of the MFCDs. The default displays are assigned based on the current selected Master Mode. Primary Display Pages are controlled either through the HOTAS or by using the 5 Top OSBs and the first 5 Left and Right OSBs. The Centre Bottom OSB is always used to return the MFCD Primary Display to the Main Menu.

Secondary Display Pages are controlled using the lower 3 Left and Right OSBs and accessed through a Secondary Main Menu accessed through the Bottom Right OSB labelled RTN.

Compatibility:
The integrated display is not limited to the JF-17 aircraft. It can also be used on any aircraft with MFCD, such as the SU33, A10 and FA18. You can think of the display as a display with custom button functions. As long as the flight software supports the external display of the dashboard, the dashboard can be displayed on that screen. It's just that the size and number of the buttons don't match like the JF-17. It is recommended to use the DCS World flight software.

Function Buttons:
High-fidelity panel, 32 custom buttons, panel logo, buttons with backlight and adjustable backlight brightness.

Versions:
8-inch LCD and 10.4-inch LCD screens. Both of them are designed with a resolution of 1024*768 and HDMI interface. They can meet the needs of different types of users.

Package Included:
- 1 x MFCD Display

Note:
- Just one MFCD is included. If you want to purchase triple MFCD, you have to add 3 to cart.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

Packaging Details:
- G.W.: 3kg
