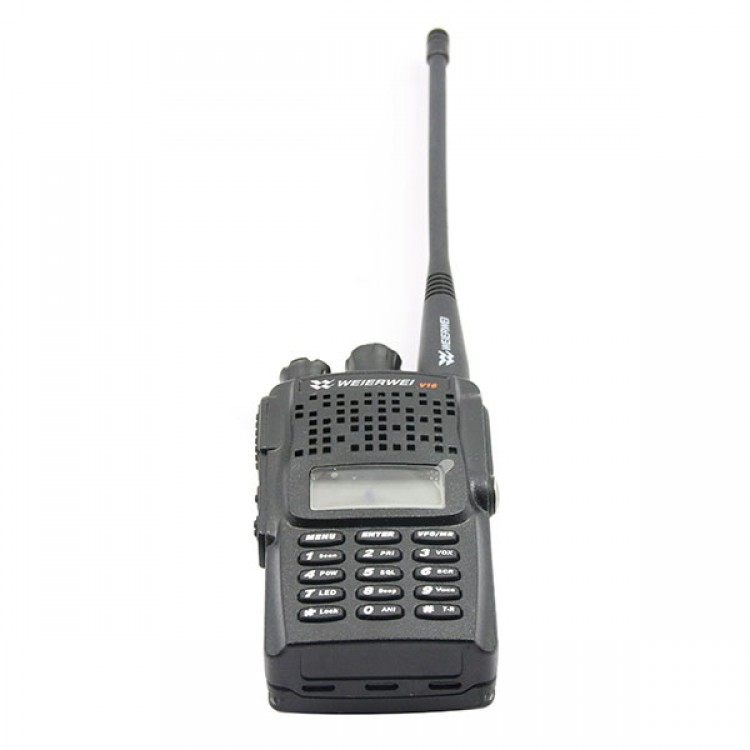

WEIERWEI VEV-V16 VHF UHF Radio Transceiver 136-174Mhz/400-480Mhz Dual Frequency Standby V16
Features:
|
General |
|
|
Frequency Range |
136~174MHZ . 400~470MHz |
|
Antenna Impedance |
50Ohm |
|
Operating Voltage |
DC7.4V |
|
Working temperature |
-20+50 |
|
Operate Mode: |
Simplex or Semi-duplex |
|
Dimension(Height×length×width) |
115 x 57 x 30mm |
|
weight |
About 220g (include battery) |
|
Transmitter |
|
|
Power Output |
U:4.2 ±0.5W V: 4.8 ± 0.5W |
|
Frequency Stability |
±2.5ppm |
|
Spurious Radiation |
≤7.5uW |
|
Adjacent Channel Power |
≥65dB |
|
Max Frequency Deviation |
≤5KHz |
|
Audio Distortion |
≤5% |
|
Modulation Character |
+3dB ~ -3dB |
|
Occupied Bandwith |
≤16KHz |
|
Transceiver |
|
|
RF Sensitivity |
<0.20μV |
|
Adjacent Channel Sensitivity |
≥55dB |
|
Audio Response |
+2dB ~ -10dB |
|
Co-channel Selectivity |
≥ -8dB |
|
Audio Distortion |
≤5% |
|
Intermediation Rejection |
≥55dB |
|
Blocking |
≥85dB |
