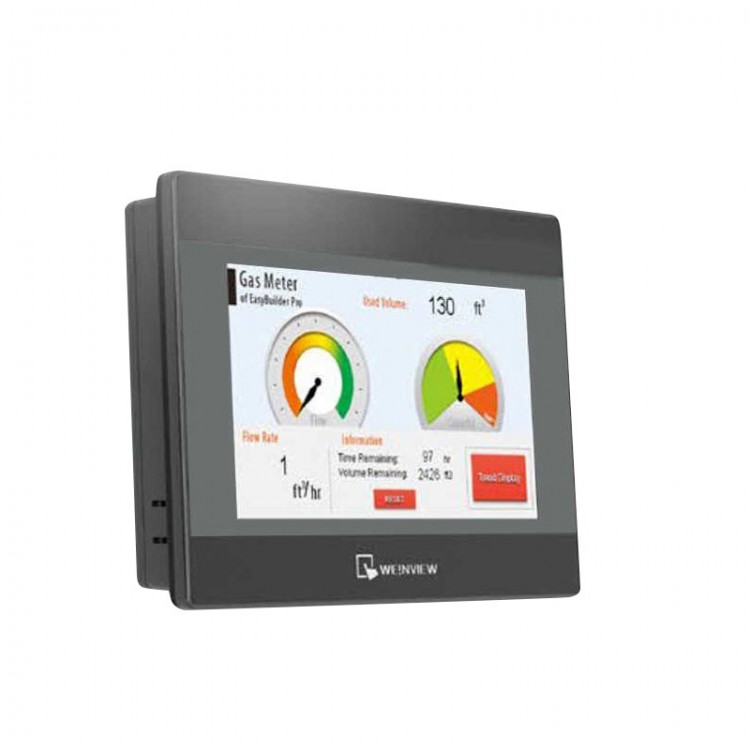

Weinview TK6072IP HMI Touch Screen Human Machine Interface (Replacement for TK6071P) with 7" Display
Features:
* 7" 800 x 480 TFT LCD with LED backlight
* Fanless cooling system
* COM2 and COM3 RS-485 2W support MPI 187.5K. Choose one to use at a time
* Mainboard coated prevents corrosion in harsh environments
* Built-in power isolation
* NEMA4 / IP65 front panel protection level
TK6072IP Specifications:
Display:
* Display: 7" TFT
* Resolution: 800 x 480
* Brightness (cd/m²): 450
* Contrast Ratio: 500:1
* Backlight Type: LED
* Backlight Lifespan: >30,000 hours
* Colors: 16.7M
* LCD Viewing Angle (T/B/L/R): 60/70/70/70
* Pixel Pitch (mm): 0.1926 (Horizontal) x 0.179 (Vertical)
Touch Panel:
* Type: 4-wire resistive type
* Touch Accuracy/Hardness: Active Area Length (X) ±2%, Width (Y) ±2%
Memory:
* Flash Memory: 128 MB
* RAM: 128 MB
Processor:
* Processor: Dual-Core RISC CPU
I/O Interfaces:
* SD Card Slot: None
* USB Host: None
* USB Client: USB 2.0 x 1 (Micro USB)
* Ethernet Interface: None
* Wireless Communication: None
* Serial Interface: COM1: RS-232 4W; COM2: RS-485 2W/4W
* RS-485 Dual Isolation Protection: None
* CAN Bus: None
* HDMI-Compatible: None
* Audio Output: None
Perpetual Calendar:
* Perpetual Calendar: Built-in
Power Supply:
* Input Power: 24±20% VDC
* Power Consumption: 250mA at 24VDC
* Power Isolation: Built-in
* Withstand Voltage: 500VAC (1 minute)
* Insulation Resistance: Over 50MΩ at 500VDC
Specifications:
* PCB Coating: None
* Enclosure Material: Engineering Plastic
* Dimensions: 200.4 x 146.5 x 34 mm
* Panel Cutout Dimensions: 192 x 138 mm
* Weight: Approximately 0.52 kg
* Mounting Method: Panel Mount
Operating Environment:
* Protection Rating: NEMA4 / IP65 Compliant Front Panel
* Storage Temperature: -20℃ to 60℃ (-4°F to 140°F)
* Operating Temperature: 0℃ to 55℃ (32°F to 131°F)
* Relative Humidity: 10% ~ 90% (Non-condensing)
* Applicable Altitude (Pressure): Below 3,000 meters (70.1kPa)
* Vibration Resistance: 10 to 25Hz (X, Y, Z Axis 2G 30 minutes)
Certifications:
* CE: CE Marked
* UL: None
Software:
* EasyBuilder Pro: Limited to Simplified Chinese version EBPro V6.08.01 or later
* Weincloud: None
* For CODESYS®: None
Package Included:
* 1 x HMI Display
Packaging Details:
* Weight: 0.75kg
