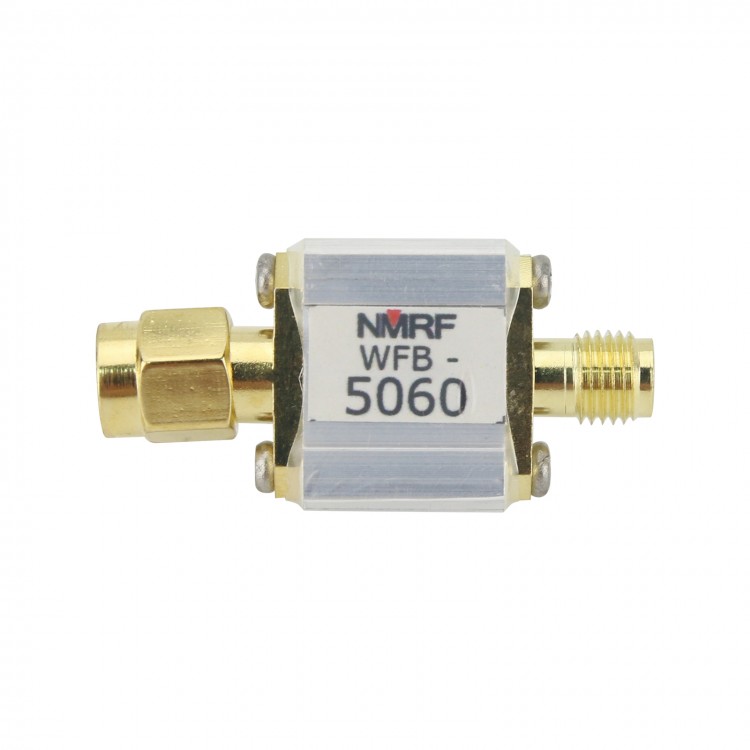

WFB-5060 Broadband Bandpass Filter with SMA Connectors for 5.8G (5000-6000MHz) UWB Wireless System
Description:
The center frequency of this bandpass filter is 5500MHz and the 3 dB bandwidth is about 1200MHz. It adopts a multi-layer thin-film circuit structure with non-sharp cut-off characteristics. It is used for anti-interference and performance optimization of 5.8G UWB, WiMAX, WiFi and other wireless system receiving devices. It can effectively filter out out-of-band signals, reduce noise and increase dynamic range.
Specifications:
- Model number: WFB-5060
- Impedance: 50 Ohms
- Center frequency: 5500 MHz
- 3 dB passband: 4900~6100 MHz
- Insertion loss: < 2.5 dB at 5100~5900 MHz
- Maximum load capacity: 5 W (37 dBm) at 1 minute

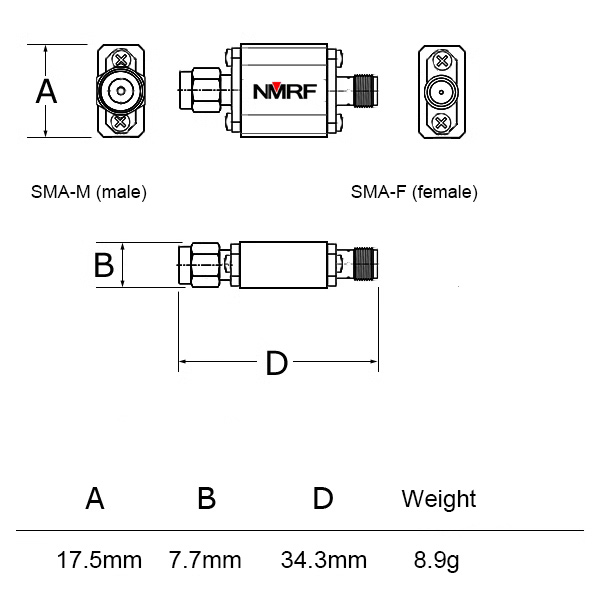

- Interface: SMA-M and SMA-F (RF characteristics are symmetrical at both ends, non-directional)
Package Included:
- 1 x Bandpass Filter
Packaging Details:
- Weight: 0.15kg

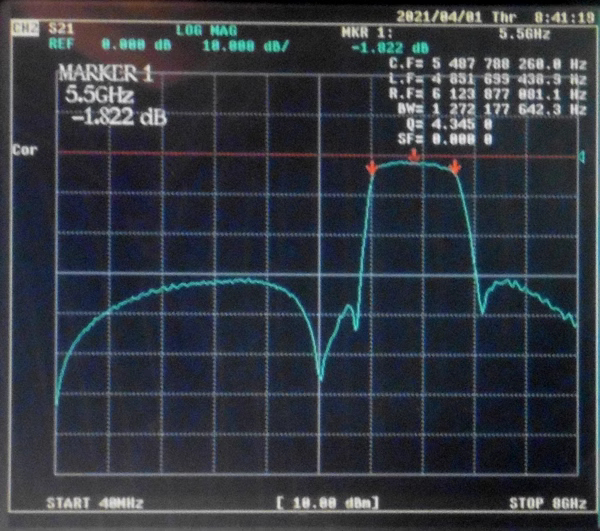

Frequency Response Diagram:
