White Analog TV Signal Transmitter Home Analog TV Transmitter with OLED Display Supports Global TVs

White Analog TV Signal Transmitter Home Analog TV Transmitter with OLED Display Supports Global TVs

Function Description:
- Supports HD input. The HD input can be converted to N and P systems.
- AV input is supported, but it cannot be converted to N system.
- It supports high-definition input, converts it to AV signal output and then connects to other AV-enabled displays, such as LCD TVs. At the same time, it can also send signals out.
- Supports accompanying sound setting in the range of 4.5MHz-6.5MHz.

FM Transmitter:
Simple FM signal transmission and the transmission effect is not bad. Here's how: set the frequency to 85.25MHz in the VHF band and change the frequency of the accompanying sound. 85.25MHz plus the accompanying sound frequency is equal to the radio's reception frequency.
85.25MHZ+6.5MHZ=91.75MHZ
85.25MHZ+6.0MHZ=91.25MHZ
85.25MHZ+5.5MHZ=90.75MHZ
85.25MHZ+4.5MHZ=89.75MHZ

Product Introduction:
* It is an analog TV signal transmitter and a wireless RF signal converter. It supports imported N-system TVs, with accompanying sound 4.5-6.5 conversion, and supports HD to AV output and simultaneous transmission. The transmitting frequency is adjustable. It supports FM radio to receive TV accompanying sound. Suitable for color TVs and black and white TVs.
* Benefits of high-definition to AV output: When you input high-definition signals, the high-definition of your set-top box is occupied by the transmitter, and the previous LCD TV cannot be used. At this time, the LCD TV can be connected to the video terminal of the transmitter, which can realize the simultaneous work of LCD TV and transmitter.
* Press and hold the menu button to enter the settings: UHF/VHF, P/N, transmitting frequency setting and accompanying sound frequency setting.
* With an OLED display.
* Transmission distance: Even if the transmitter is used within 20m/65.6ft between two walls, you can still watch old color TVs and black and white TVs in a clear way.
* 9V DC power supply: There is a phenomenon of heating, but this is a normal phenomenon. To do it without heating, you can use a 5V power supply, but many 5V USB power supplies have a lot of ripple, which will cause image interference. The white cover plate on the product is made of aluminum alloy, which is used for heat dissipation and will not cause the product to get hot.

Features:
- Analog TV signal transmitter/wireless RF signal converter
- Resurrects old-fashioned TVs again
- Small, portable, and HD
- It supports multiple devices to receive, meeting your different needs. Universal type for color TVs and black and white televisions
- Multiple input methods: Supports set-top boxes, network set-top boxes, computers and mobile phones
- With an OLED screen and an HDMI-compatible interface
- Supports 9V power supplies
- Powerful performance with low energy consumption
- Industrial-grade motherboard
- 360-degree coverage without dead ends
- High-performance processing chips
- The transmission distance is 10-20m/32.8-65.6ft

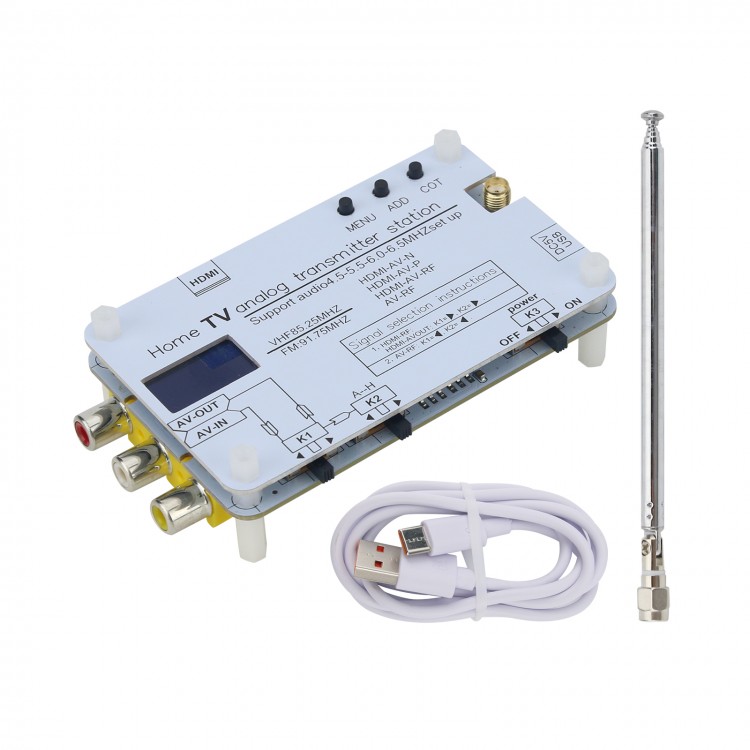

Package Included:
- 1 x Transmitter
- 1 x Transmitting antenna
- 1 x USB power cable (5V input voltage)

Packaging Details:
- G.W.: 0.35kg

Note:
- AV cable and HD cable are not included.
- If you want to use its AV input and want to get an N-system signal, you can add an AV to N signal converter, or an AV to HD converter.
- Your TV needs a good receiving antenna. To ensure the best UHF channel effect, it is recommended that 471.25MHz is for the transmission frequency and VHF band is as long as possible.
