White DA10 Dual Core ES9038 DSD512 Bluetooth 5.1 USB Decoder HiFi DAC Headphone Amplifier with USB Sub Card Version

White DA10 Dual Core ES9038 DSD512 Bluetooth 5.1 USB Decoder HiFi DAC Headphone Amplifier with USB Sub Card Version

Function and appearance:

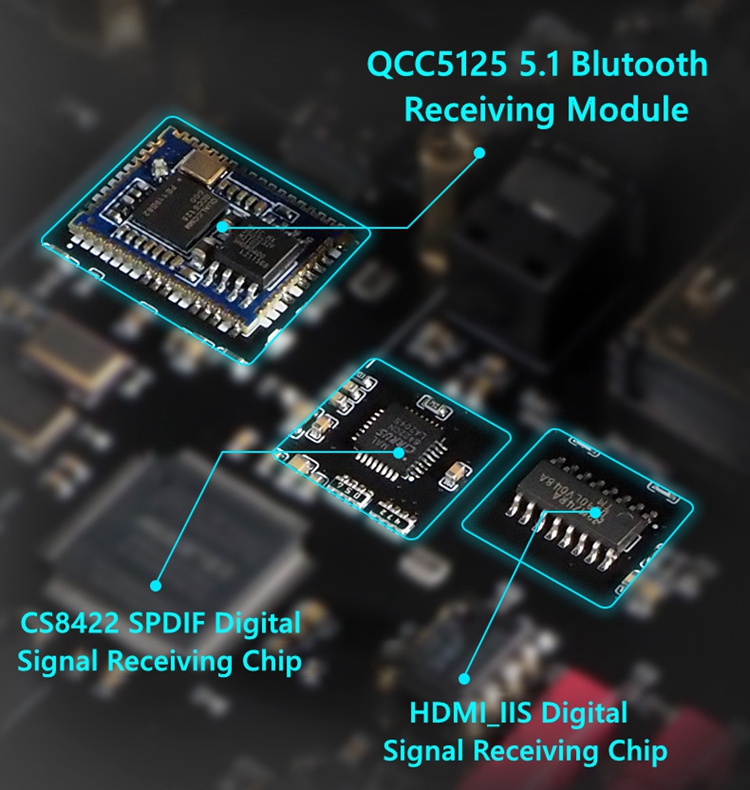

- QCC5125 5.1 Bluetooth Module

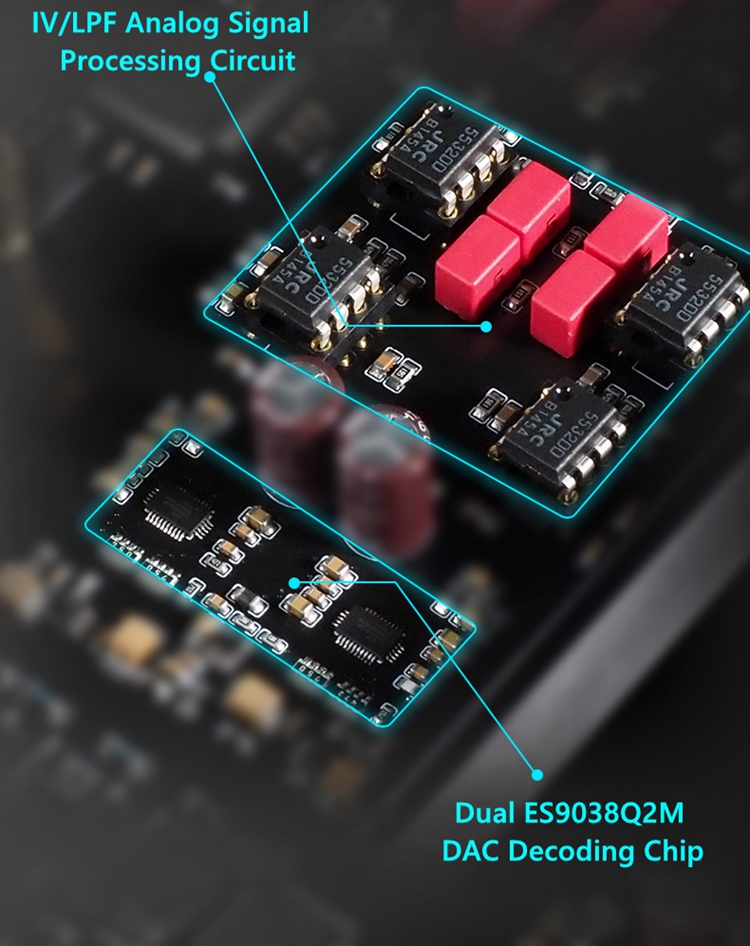

- Dual ES9038Q2M DAC decoding chip
- Support LDAC
- Support DSD
- Support 31bit 384k

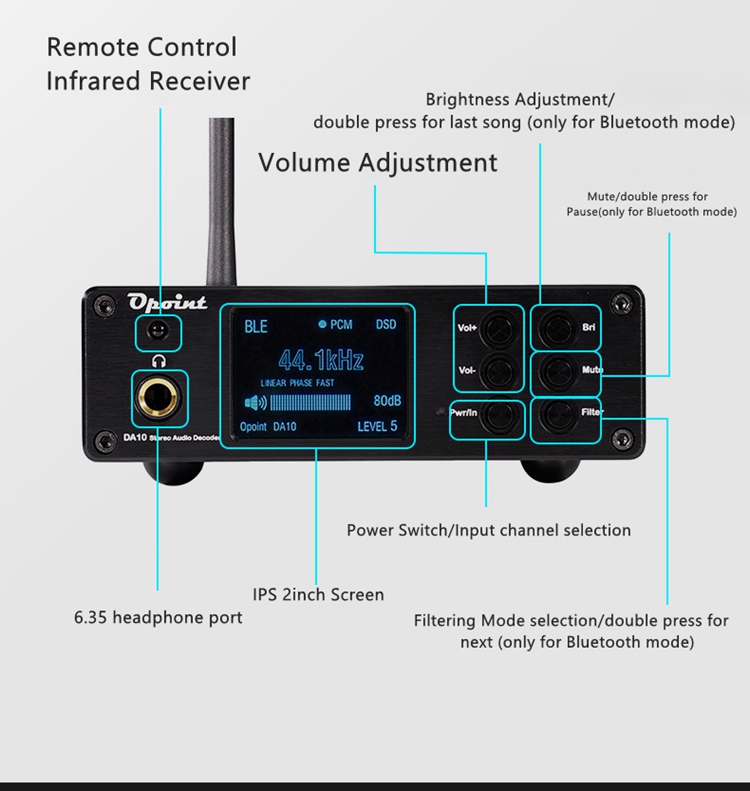

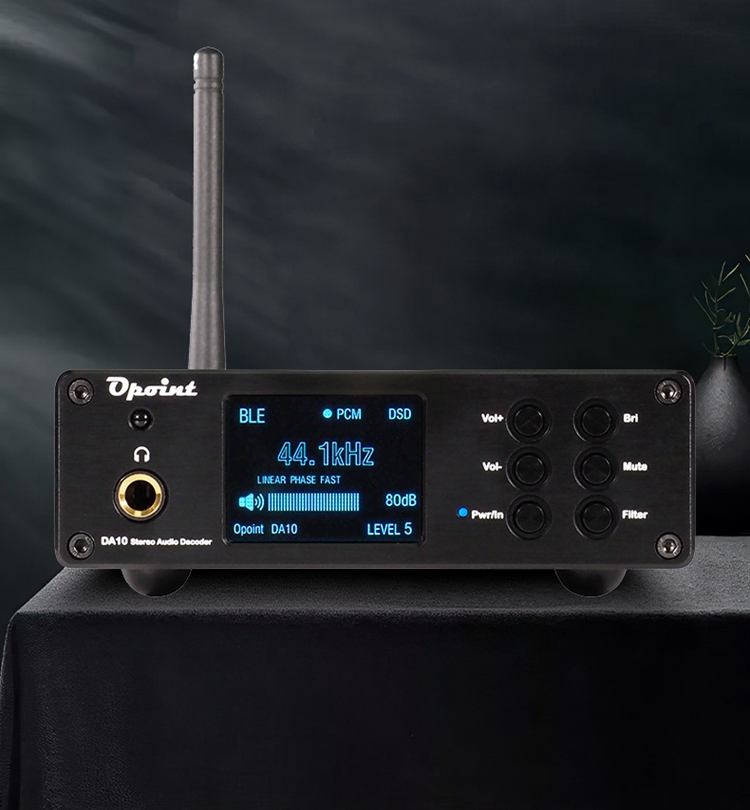

- LED Screen
- 6.35 Headphone interface
- Full-function remote control

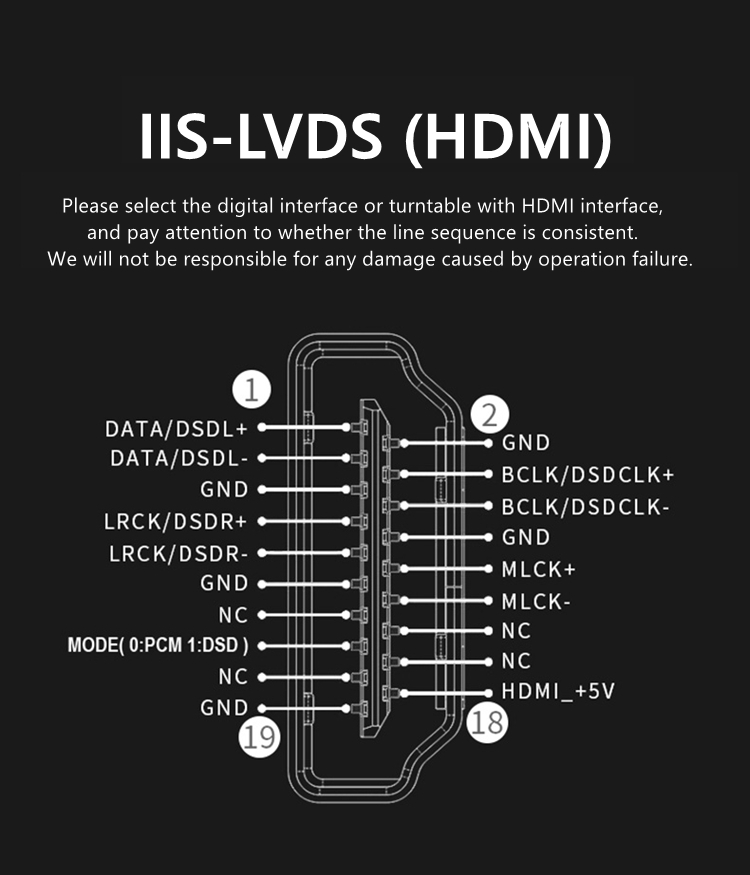

- HDMI_IIS input
- Adjustable volume
- 1:1 professional component

Features:
- 7 input channel

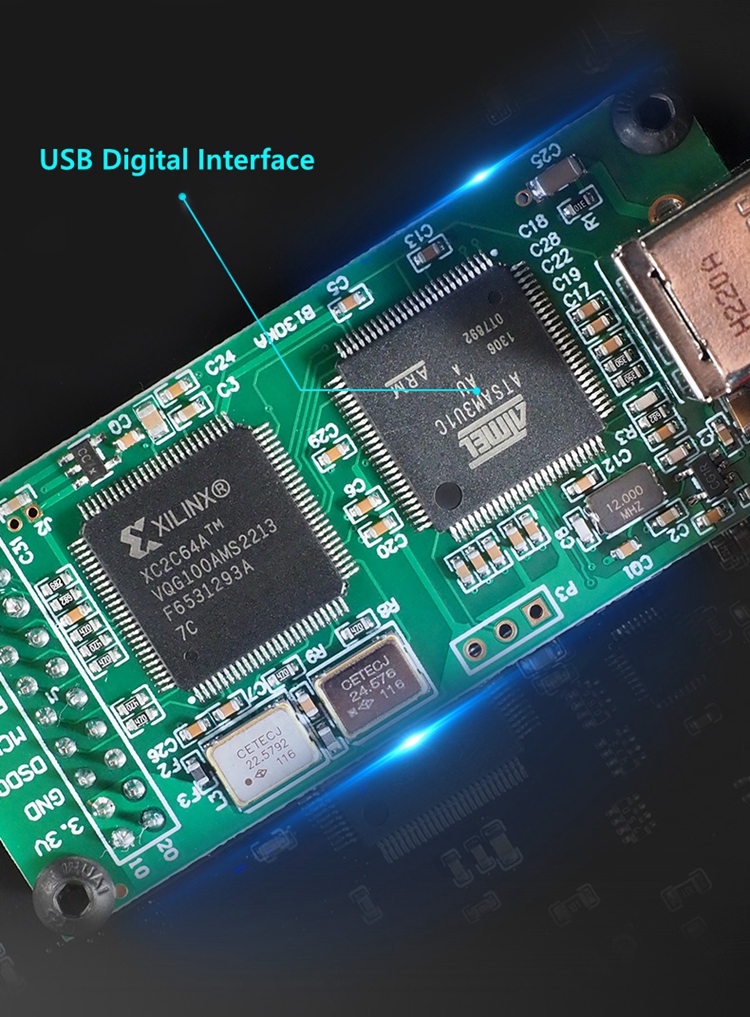

- It can automatically detect whether there is a USB sub card when it is turned on. If there is a sub card, it is 7-channel input, and if there is no sub card, it is 6-channel input.

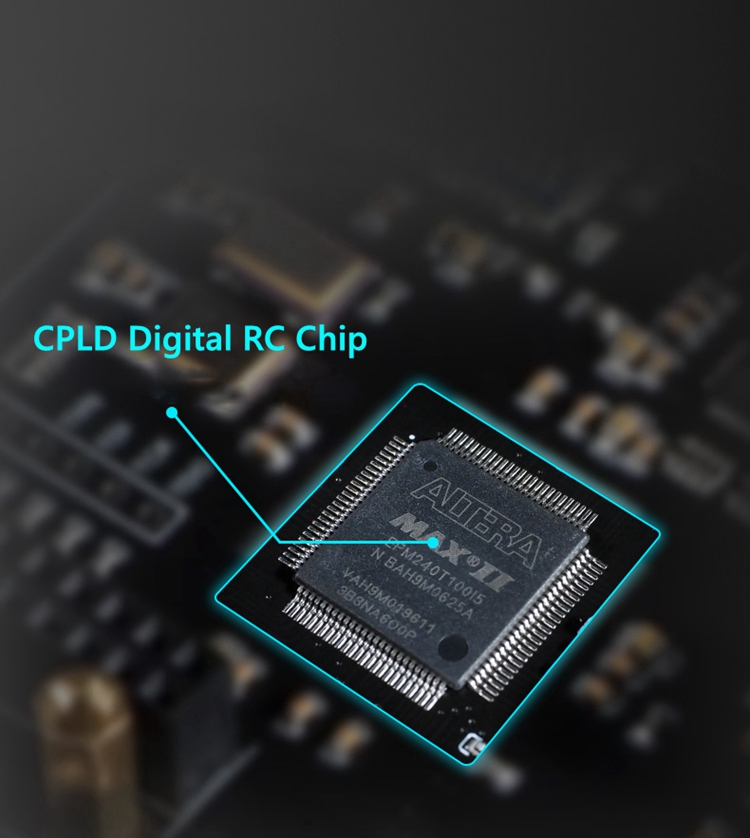

- Equipped with CPLD Digital RC Circuit.
- The display brightness is adjustable at 5 levels.
- Support remote control

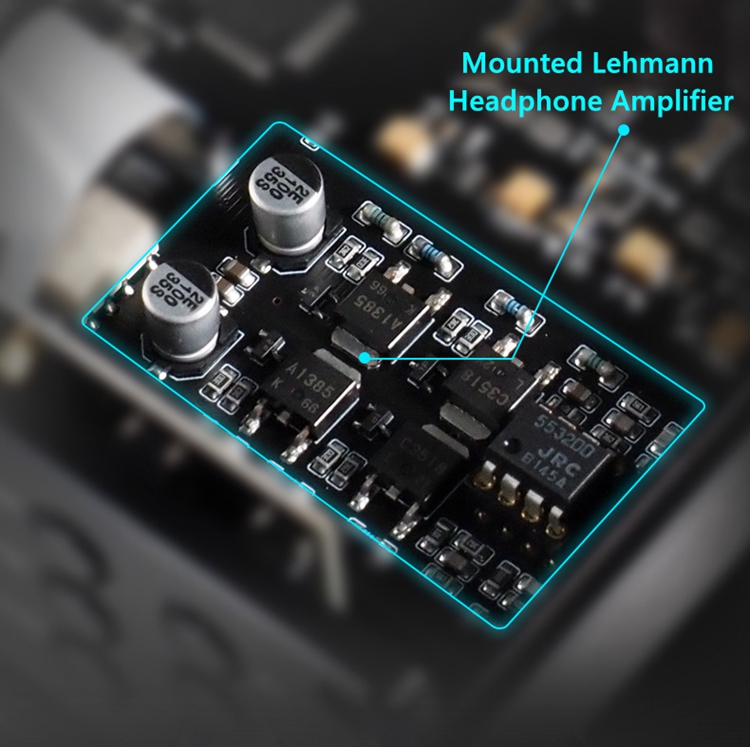

- It is the ear amplifier circuit of Lehmann circuit, which has better sound quality and driving power. And the output of the ear amplifier adopts 6.35 earphone port.
- Bluetooth mode supports panel operation and remote control.

Parameter:
- Model: DA10
- Decoding plan: ES9038Q2M Dual core + CPLD Digital RC
- Size: 133 x 48 x 162mm
- Weight: 0.6kg

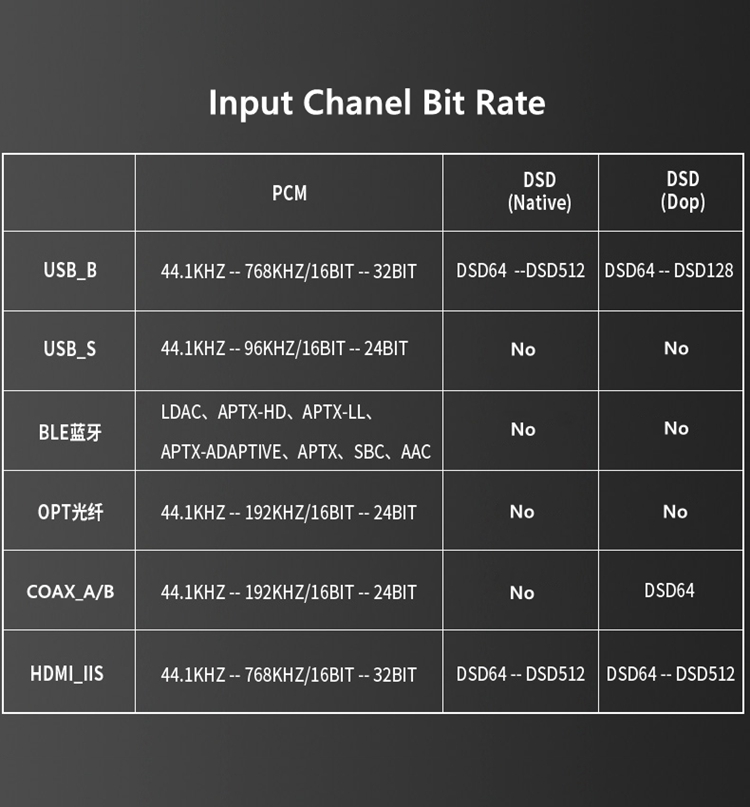

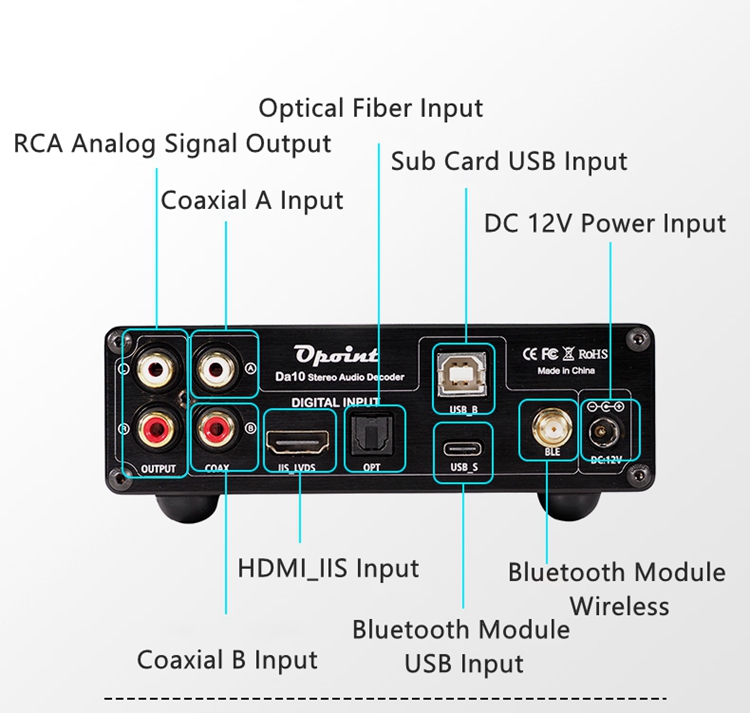

- Input interface: USB/OTG x 2; COAX x 2; OPT x 1; HDMI_IIS x 1; BLE Bluetooth x 1
- Output interface: RCA / 6.35 Headphone
- Dynamic range: ≥121DB
- Distortion: 0.0005%
- Frequency response: 20HZ---20KHZ (±0.06DB)
- Power: DC 12V/1A (5.5/2.1)

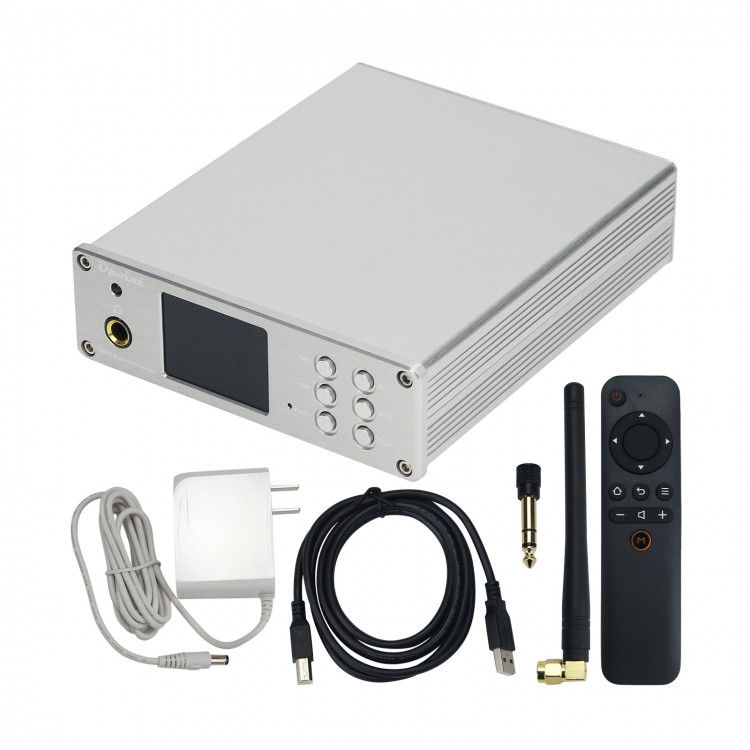

Package Included:
- 1 x Host
- 1 x Power Adapter
- 1 x Bluetooth Antenna
- 1 x USB Cable
- 1 x Headphone Adapter
- 1 x User Manual
