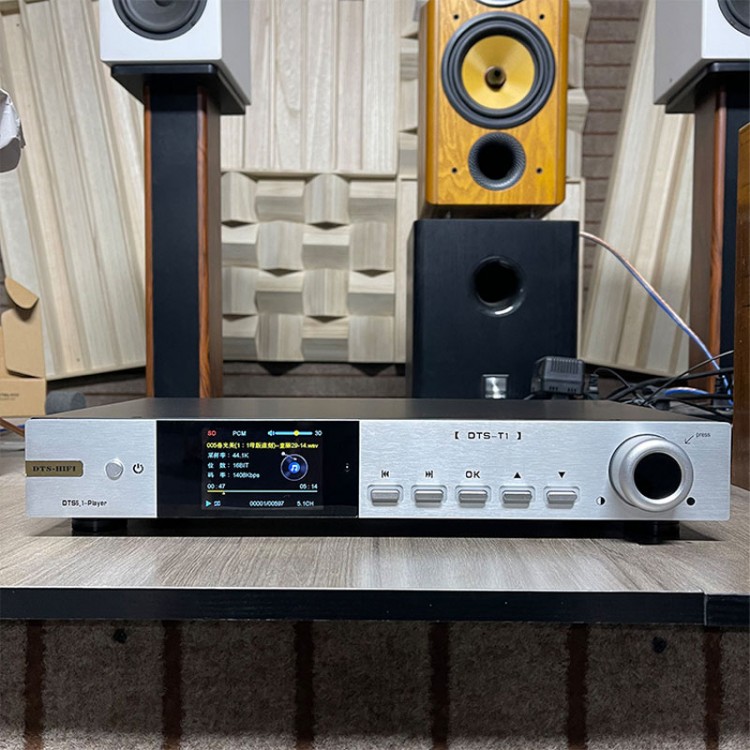

White DTS-T1 5.1 Channel HiFi Audio Player 3ES9038 Decoding Chip DSD HDMI-compatible Audio Decoding with 3.5-inch Screen

White DTS-T1 5.1 Channel HiFi Audio Player 3ES9038 Decoding Chip DSD HDMI-compatible Audio Decoding with 3.5-inch Screen

Features:
- The 4K high fidelity HDMI-compatible interface adopts gold-plated technology to reduce transmission loss and achieve real high bit rate transmission.
- The dual ring transformer digital analog isolation provides separate power supply, making the sound background quieter and the sound more powerful. You can freely switch between 220V or 110V power supply by the switch. It meets global power supply needs.
- Using three audiophile decoding chips (ES9038Q2M*3), which has a delicate and clean sound, with excellent performance in sound penetration, details, and layering.
- Three AD827 dual operational amplifiers with a plug and play design. It also facilitates customers to replace different operational amplifiers themselves, further improving sound quality.
- Up to 10 independent power supplies can further reduce interference issues between various modules. The sound is clean without any background noise. The operational amplifier adopts positive and negative 15V power supply, maximizes operational amplifier performance and significantly improve overall sound quality.
- Supports a multi-layered folder management system for convenient and quick song selection, and supports remote control 1-99999 for quick digital combination song selection.
- Supports both Chinese and English languages.
- Supports individual fine-tuning of 6-channel volume.

USB Flash Drive or SD Card Play Interface:
- Display the current channel and audio format, with a volume progress bar of 0-50.
- It can display the current audio file name, sampling rate, number of bits, bit rate, etc.
- It can display the current playback time and the total audio time, and the progress bar displays the playback progress.
- Display sequential playback, random playback, single loop, folder loop, and full track loop.
- It can display surround sound output channels (2.0CH, 2.1CH, 3.1CH, 4.1CH, 5.1CH) or SRAW (digital source code output) or SPCM (digital PCM).

System Setting Interface:
- Output mode: surround sound, digital source code, digital PCM.
- Output channels: 2.0CH, 2.1CH, 3.1CH, 4.1CH, 5.1CH
- Loop mode: sequential playback (stop after playing the last song), random playback, single loop, folder loop, and full song loop.
- Language selection: Chinese, English
- Volume adjustment: front left 50dB, front right 50dB, center 50dB, bass 50dB, left surround 50dB, right surround 50dB.


1: HDMI-compatible 1 digital signal input
2: HDMI-compatible 2 digital signal input
3: HDMI-compatible digital signal output/ARC audio return channel input
4: Digital/coaxial signal input
5: Optical fiber digital signal input
6: USB sound card input
7: USB flash drive/mobile hard drive
8: SD card input
9: Bluetooth antenna port
10: RCA analog signal input
11: Coaxial digital signal output
12: Optical fiber digital signal input
13: 5.1 Channel left front output
14: 5.1 Channel centre output
15: 5.1 Channel left loop output
16: 5.1 Channel right front output
17: 5.1 Channel bass output
18: 5.1 Channel right loop output
19: Power switch button
20: Previous song
21: Next song
22: OK
23: Up
24: Down
25: Volume switch

Specification:
- Size: 430 x 240 x 75mm
- Supported digital audio decoding format: for Dolby Digitel (AC3)/DTS/PCM
- USB flash drive/hard disk/SD card supported format: MP3/APE/FLAC/WAV/DTS/AC3/DSD256 (max)/M4A
- HDMI-compatible input resolution: HDMI-compatible 2.0b&3840*2160
- DSP sampling rate: 32 ~ 192KHz
- DSP bit rate: 16 - 24bit
- Digital input level: 0.1 - 1.5VP-P
- 5.1 analog output (1KHz at 0dB): 2.6VRMS
- SNR at 0dB (CCIR/ARM): >= 112dB
- Distortion: <= 0.03%
- Frequency response: 20Hz - 22KHz

Package Included:
- 1 x Host
- 1 x Remote Control
- 1 x Power Cable
- 1 x Antenna
- 3 x Pair of Cables
- 1 x User Manual
