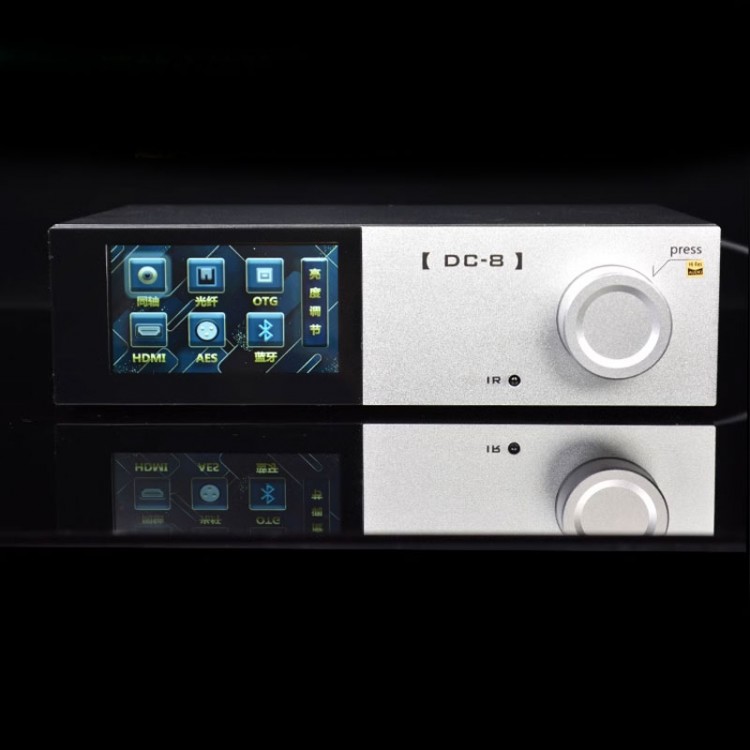

White Standard Version DC-8 Dual ES9068AS HiFi Audio Decoder 4PCS NE5532 Op Amp Bluetooth5.3 with 4.3-inch IPS Screen

White Standard Version DC-8 Dual ES9068AS HiFi Audio Decoder 4PCS NE5532 Op Amp Bluetooth5.3 with 4.3-inch IPS Screen

Difference:
- Advanced version: femtosecond high precision crystal oscillator, 4pcs MUSIC R2 operational amplifier
- Standard version: full size active crystal oscillator, 4pcs NE5532 operational amplifier

Features:
- The front panel knob is a multifunctional button that can be long pressed for 3 seconds to turn on or off. Turning the knob on the main page allows for mode selection. After selecting, short press the knob to enter the mode and start working. Short press again to exit the current mode and return to the main page. Rotate the knob on the working mode interface to adjust the volume.
- Adopting 2pcs ES9068AS audio decoding chip
- Linear power supply
- 4.3-inch IPS HD display screen
- For Italian USB interface
- For QCC3084 Bluetooth 5.3 version
- Pluggable operational amplifier socket design for convenient operational amplifier replacement
- HiFi audio dedicated capacitor
- Coaxial digital isolation transformer
- Full copper coil filtering circuit

Specification:
- Bluetooth supported protocols: for LDAC, aptX, aptX-HD, aptX-adaptive, aptX-lossless, LC3, SBC, AAC
- Bluetooth transmission distance: 15m (without obstacle)
- Bluetooth supported sampling rate: 16B-24B, 44.1K-96K
- Coaxial, optical fiber, AES supported sampling rate: 16B-32B, 32K-192K
- IIS, OTG supported sampling rate: 16B-32B, 32K-192K, DSD64-DSD256
- USB sound card interface: for Italian USB sound card interface
- Frequency response range: 18Hz - 26.8KHz (±3dB)
- RCA output level: 3.1Vmr (1KHz)
- Balanced output level: 6.2Vmr (1KHz)
- Input voltage: 220V AC
- Net weight: 2.12kg

Package Included:
- 1 x Audio Decoder
- 1 x Remote Control
- 1 x Bluetooth Antenna
- 1 x Power Adapter
- 1 x USB Cable
- 1 x Coaxial Cable
