WIFI-DMX Controller DMX Lighting Controller (3-pin XLR Connector) for Film and Television Lighting

WIFI-DMX Controller DMX Lighting Controller (3-pin XLR Connector) for Film and Television Lighting

Description:
WIFI-DMX is a battery-powered DMX controller. Receiving signals from a mobile phone through Wifi, it can control all DMX signal products. Users can program and control RDM-enabled light fixtures through the WIFI-DMX controller in the mobile APP.

WIFI-DMX controller can control 512 DMX channels. It is compatible with third-party software with ARTNET output. It is for ART-NET protocol control software such as for Luminaries/FreeStyler/Stellar/Photon/Stagelight/Madrix/QLC. Users can change the WIFI name and password.

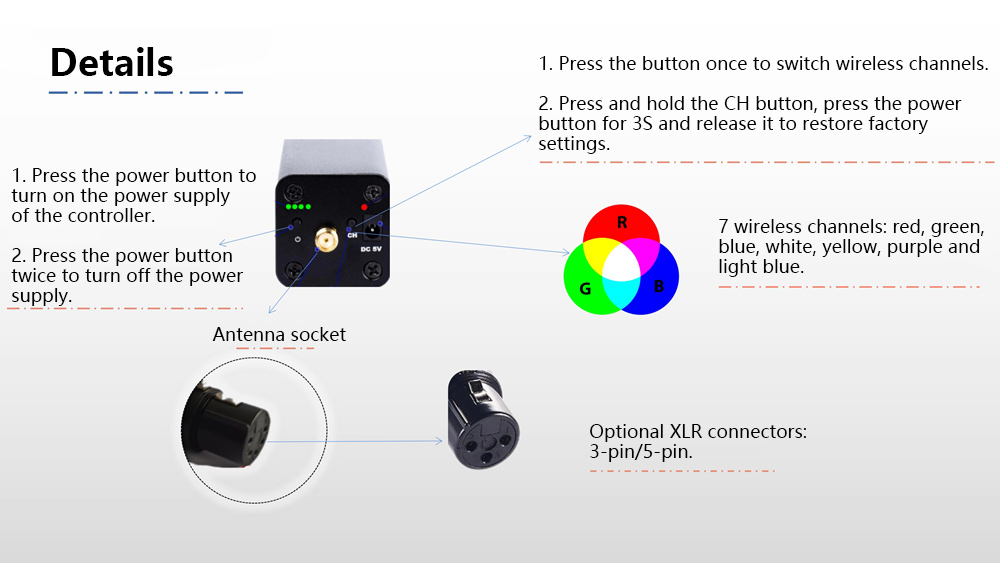

It is designed with buttons and indicator lights. Multiple controllers can be used at the same time in the same venue. WIFI-DMX supports master-slave mode and can be used with a control console or a WIFI-DMX signal amplifier. It can realize lighting control via a mobile phone at a distance of 200m/656.2ft, and can be used with a control console to control lighting. Furthermore, it has a battery life of up to 16 hours.

Features:
- It can control 512 DMX channels, and supports lighting control via a computer or a cellphone.
- It supports master-slave mode, which can meet the distance requirements of different scenarios by using a control console or a mobile phone.
- It is plug-and-play, with Wifi.
- Suitable for stage lights, film and television lights, beam lights and other lamps with RDM function to modify the address code.
- Suitable for light control and testing in places where power supply is inconvenient.
- 16 hours of battery life.
- Mobile APP supports independent switching between Chinese and English.
- The mobile APP supports offline effects and autonomous loop playback.
- The mobile APP supports independent programming.
- Professional mobile programming software is provided.

Specifications:
- Connection: 1* WIFI connection
- Degree of protection: IP20
- LED indicator light: With
- Supported protocols: Art-Net, DMX/RDM, sACN and WIFIDMX
- Offline feature: Not supported
- Maximum output channels: 512
- Output: 3-pin/5-pin XLR
- Output refresh rate: 33fps (supports 3rd party software with ARTNET protocol to control lights)
- Input voltage: 5V DC
- Configuration software: for WIFI-RDM and WIFI-DMX PRO
- Battery: With
- Input current: 500mA
- Power: 2.5W
- Ambient operating temperature: 0°-50°C; 32°-122°F
- Ambient operating humidity: 5-95% (non-condensing)
- Body material: Stainless steel
- Dimensions: 20.57cm x 13.72cm x 5.08cm/8.1" x 5.4" x 2"
- Weight: 0.3kg/0.7lb

Package Included:

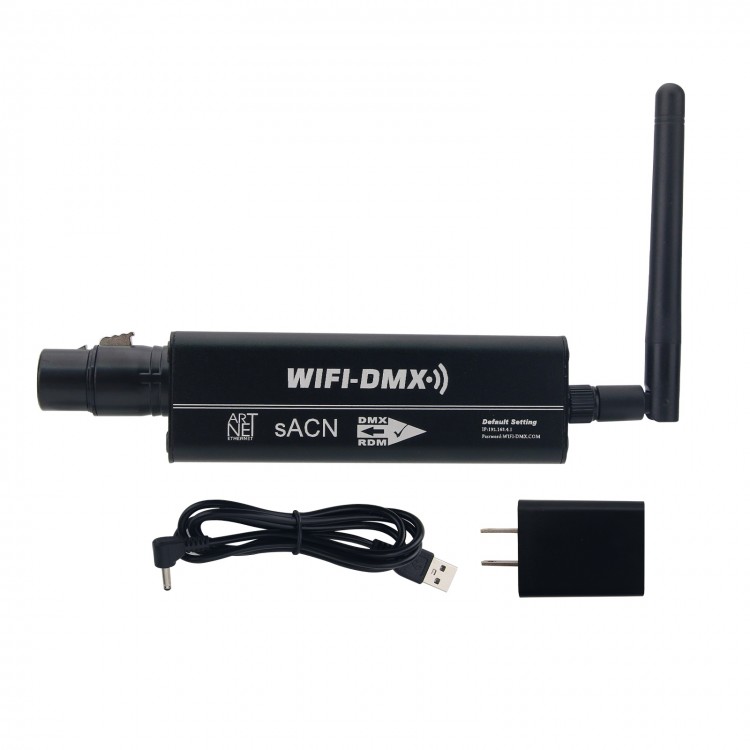

- 1 x WIFI-DMX Controller

Packaging Details:
- Weight: 0.4kg
