Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $26.45 | $25.91 | $25.10 | $24.02 | Contact US |
Wifi Signal Booster Amplifier Wireless Repeater Router 2.4GHz 4W 802.11n Power Range Expander
Specification:
- 2.4GHz 4W signal booster / Amplifier/ wifi router
- Frequency range : 2.4~2.5Ghz
- Operating voltage : 6~16V
- Receiving gain: 10dB +/- 1
- Transmission gain : 13dB +/- 1
- Input trigger power : Min 3dBm Max : 20dBm
- Maximum output Power : 36dBm (4W)
- EVM : 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20Mhz
- DC supply current : 435mA@pout 28dBm 9V
- Noise figure: <2.4dB
- TX/RX switch time delay : <1us
- LED indicator : Transmitter : Green, Receiver : Red
- Operating ambient temperature : -40 deg +70 deg
- Operating humidity : up to 95% rel. humidity
- Dimension : 82mmx50mmx21mm
- N.W: 0.25kg
Key features:
- 20X the power, improving the link quality and coverage of certified WLAN devices
- 2.5db ultra low noise
- Wide 6V-16V operating input range
- wORKING WITH CERTIFIED iee 802.11b/g/n wireless LAN devices
- Simply plug and play, no software is required

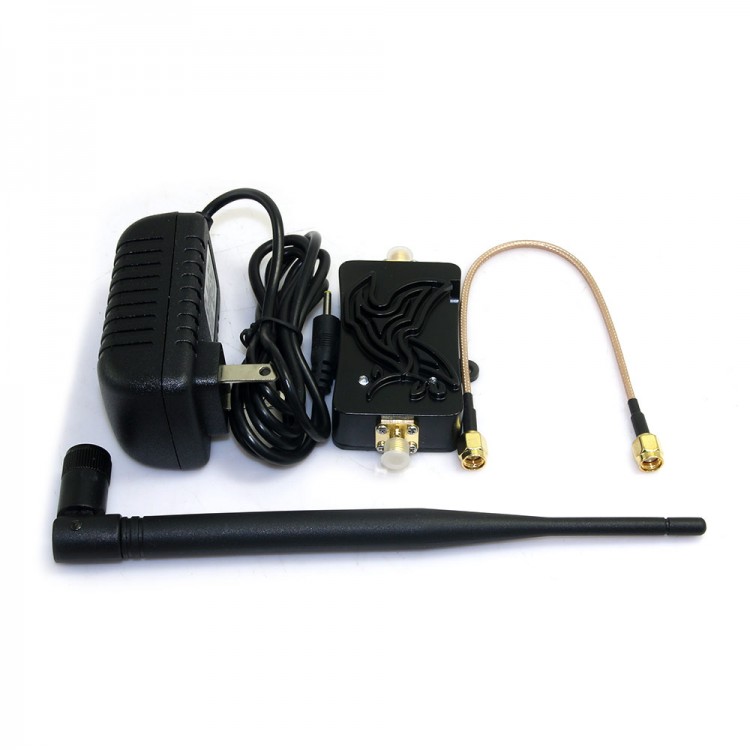

Package List:
- 1 x Wifi Signal Booster
- 1 x 9V 1A Power adapter
- 1 x 20cm RG316 Cable
- 1 x 5dbi antenna
- 1 x Manual
