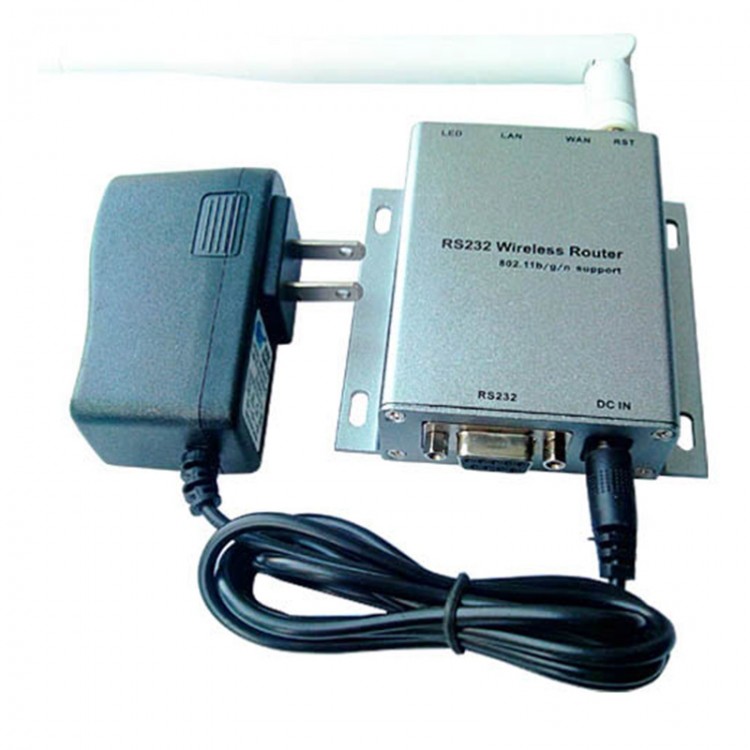

WiFi Wireless Module AP RS232 Serial Port to WiFi Router Embedded Serial Server P2P

WiFi Wireless Module AP RS232 Serial Port to WiFi Router Embedded Serial Server P2P

Description:
WiFi serial server RS485/RS232 to RJ45 or WIFI kit serial port to the WiFi module is used to convert the RS232 serial devices and RS485 to RJ45 or WIFI wireless network, control by mobile phone or laptop, can also be connected to a remote server.
The WIFI serial port server, supports RS232 and RS485, can be directly used in engineering, wide input voltage is 5-18v.
WIFI serial server AP can be used as support for other equipment to be with, also can make the Station into the common wireless WIFI network, receiving network control.

 HLK-WR02 serial server features:
1. Achieve RS232  to WIFI or RS485 to RJ45,RJ45 to WIFI transparent transmission of data, ensure the stability of data transmission.
2. Can realize Ethernet to WIFI transparent transmission module, can realize the wireless LAN cable to wireless data transformation function.
3. Support AP+STA mode of operation at the same time, the module can be used as AP for wireless terminal, and at the same time as the addition of STA to the other wireless routing equipment.
4. P2P remote control function

Specification:
1. Onboard UART to WIFI core module, contains all of the features of this module
2. Support the RS232 interface, and computer pin definitions consistent with computer's
3. Automatic switch RS485 interface xtremely low latency
4. DC 5 - 18V ultra wide voltage input, can provide 2A current DCDC power chip LM2576HVS, guarantee the reliability of the system.
5. DCDC power chip can provide 75% ~ 85% efficiency, suitable for use in battery powered systems.
6. RS485 and RS232 interface
7. Status indicator
8. DC3.5 power socket, reservation access 2.54 spacing hole
9. . power supply, serial cable, cable, convenient for customers

Performance andFunction:
- Support baud rate 500,000bps
- Support most WIFI encryption and WEP/WAP-PSK/WAP2-PSK/WAPI encryption algorithm, WEP64/WEP128/TKIP/AES, type
- Support IEEE 802.11 b/g/n, used in high power AP distance covered using 802.11 n protocol, this module is also the perfect support.
- Support DHCP to automatically obtain IP, support work in AP mode from the equipment allocation in IP
- Support network protocol: TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP
- Optional TCP Server/TCP Client/UDP mode, which can support up to 32 Client connection TCP Server mode
- Ultra small size, 2 double spacing pin
- Through the lower Reload IO mouth seconds you can restore factory settings
- Support wireless operates in the AP mode and the node (Station) model, the real hardware AP, Android can directly access
- Support the transparent / protocol data transmission mode, up to 1M cache space
- AT+ instruction set configuration
- Web configuration page
- Serial frame delay and the amount of data can be set
- Support the router / bridge mode network architecture

Package included:
- 1 xWiFi Router
