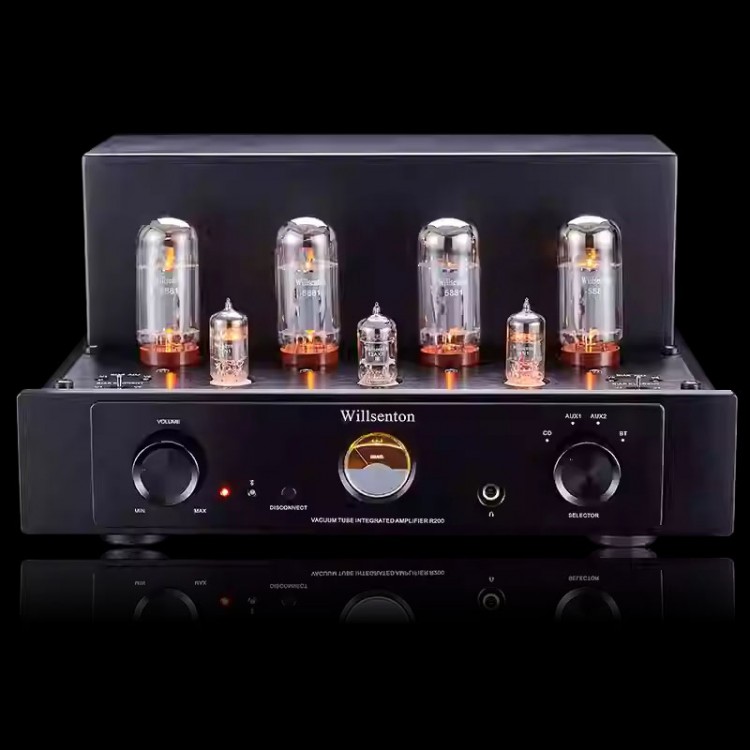

Willsenton R200 32W+32W Vacuum Tube Amplifier Bluetooth Vacuum Tube Amp (Black) w/ 5881 Vacuum Tubes

Willsenton R200 32W+32W Vacuum Tube Amplifier Bluetooth Vacuum Tube Amp (Black) w/ 5881 Vacuum Tubes

Description:
The R200 series utilizes four 5881 vacuum tubes for class AB1 push-pull power amplification, followed by one 12AX7 and two 6N1 tubes for signal amplification and driving, achieving an output power of 32W per channel.

This series adopts a pure vacuum tube design and is manufactured with manual soldering processes. It includes an external, independent BIAS ADJ current monitoring meter and adjusting BIAS monitoring functions, which helps maintain the vacuum tubes in optimal condition at all times. Additional features include a 30-second silent delay function, ALPS potentiometers, Bluetooth 5.0 connectivity, a headphone output function, and easy-to-install plug-in vacuum tube protective covers.

Advantages:
- The body is made from aviation-grade aluminum alloy with piano paint.
- The external independent BIAS ADJ current display meter and current adjustment points.
- High-grade ALPS motorized potentiometers made in Japan.
- CNC-machined copper terminals plated with gold are aimed at further noise reduction and upgrades.

Features of R200 Series:
- Aluminum: The body is made from aviation-grade aluminum alloy
- Manual Soldering: We employ artisanal hand-soldering techniques to solder each component manually
- 30s Mute Delay: The high-voltage mute delay can effectively protect the vacuum tubes
- Potentiometers: We use high-grade ALPS potentiometers that are made in Japan
- BIAS ADJ: The high-end external, independent BIAS ADJ current display meter
- Bluetooth 5.0: We've added the functionality to play directly via Bluetooth 5.0 in this series
- Vacuum Tube of R200 Series: We use only high-quality vacuum tubes for our products! The 5881 vacuum tubes in the R200 series produce a delicate, transparent, luxurious and smooth sound. For the preamp section, we use a specially customized 12AX7 vacuum tube for amplification and two 6N1 tubes for driving. In the power amp section, we employ four specially
customized 5881 tubes for class AB1 push-pull power amplification. We have also incorporated a high-pass QCC3034 Bluetooth chip in this series, allowing you to play music through the R200 using any Bluetooth output device

Sound of R200 Series:
- Classical: This series has made every effort to restore classical music instruments, live performance ambiance and vocal nuances.
- Pop/Contemporary: This series has made the greatest effort to achieve the mid-frequencies and high-frequency vocals needed for pop music.
- Symphonic/ Live: This series makes the utmost effort to reproduce the sound stage and dynamic range of live music faithfully.

Specifications:
- Output Power: 32W+32W
- Harmonic Distortion: 1% (1kHz)
- Frequency Response: 10Hz~50kHz (-3dB)
- Input Sensitivity: 210mV
- Input Impedance: 100KΩ
- Output Impedance: 4Ω, 8Ω
- Signal to Noise: 90dB
- Vacuum Tube: 5881*4, 6N1*2, 12AX7*1
- Power Consumption: 160W
- Net Weight: 16.5kg/36.4lb
- Bluetooth: V5.0
- Bluetooth Chip: QCC3034
- Bluetooth Input: For aptx, aptxHD, SBC and AAC
- Transmission Distance: 10m/32.8ft
- Dimensions of Main Unit: 390mm x 260mm x 215mm/15.4" x 10.2" x 8.5" (WxDxH)
- Working Temperature: 32°F to 104°F (0℃ to 40℃)
- Working Humidity: 20% to 80%
- Temperature: -4°F to 158°F (-20℃ to 80℃)
- Humidity: 20% to 90%

Package Included:
- 1 x Tube amplifier
- 1 x User manual
- 1 x Warranty card
- 1 x Power cable
- 2 x Spare fuses

Packaging Details:
- Weight: 20kg
