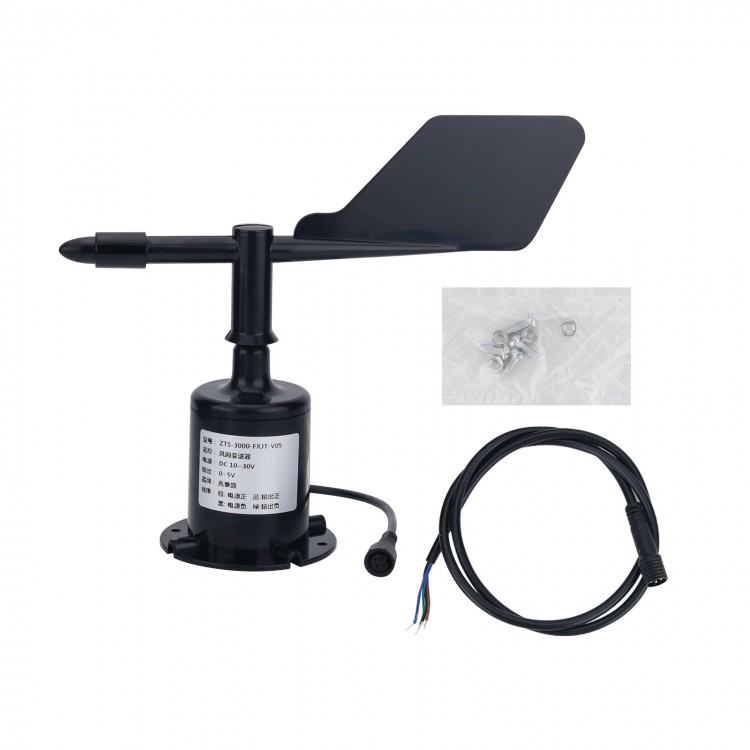

Wind Direction Sensor 8-Direction Wind Direction Transmitter with 0-5V Output for Weather Station
Features:
- Wind direction sensor: anti-corrosion, anti-weathering and anti-electromagnetic interference.
- Easy installation: It has an arrow pointing to due north. The north sign makes it easy to install, which can avoid measurement errors.
- Easy connection: Waterproof cables can be plugged together, making it easy to connect and avoiding mis-connection of the cable.
- Polycarbonate shell: Polycarbonate is resistant to acids, alkalis and oxidation resistance. This greatly extending the service life of the product.
- Stable base: The aluminum alloy increases the stability of the base and enhances its bearing force, thus greatly improving the anti-interference performance to ensure the accuracy of measurement.
- Aviation plug: Four-pin aviation plug is resistant to corrosion and erosion. It has strong performance to use.
- Application: It is suitable for the measurement of wind direction in the field of construction machinery (cranes, crawler cranes, gantry cranes, tower cranes, etc.), terminals and ports, meteorological environment, greenhouses, animal husbandry, smart agriculture, etc.It can output response signals to help you solve problems.
Specifications:
- Equipment power supply: 10~30VDC
- Maximum power consumption: 1.2W
- Accuracy: ± (0.2+0.03V)m/s. V means wind speed (60%RH and 25°C)
- Measuring range: 0~60m/s (default 0-30m/s)
- Resolution: 0.1m/s
- Working environment of transmitter circuit: -40°C to +70°C and 0%RH~80%RH
- Response time: ≤2s
- Output signal: 0-5V (5V powered)
- Load capacity: Output resistance≤ 250Ω (voltage output)
- Measuring range: 8 directions
Size of Wind Direction Sensor:
- Overall Height: 190mm/7.5"
- Spindle Height: 142mm/5.6"
- Base Height: 71mm/2.8"
- Base Diameter: 80mm/3.1"
- Mounting Holes: 4.5mm/0.2" in Diameter
- Distribution Diameter: 68mm/2.7"
Package Included:
- 1 x Wind Direction Sensor
