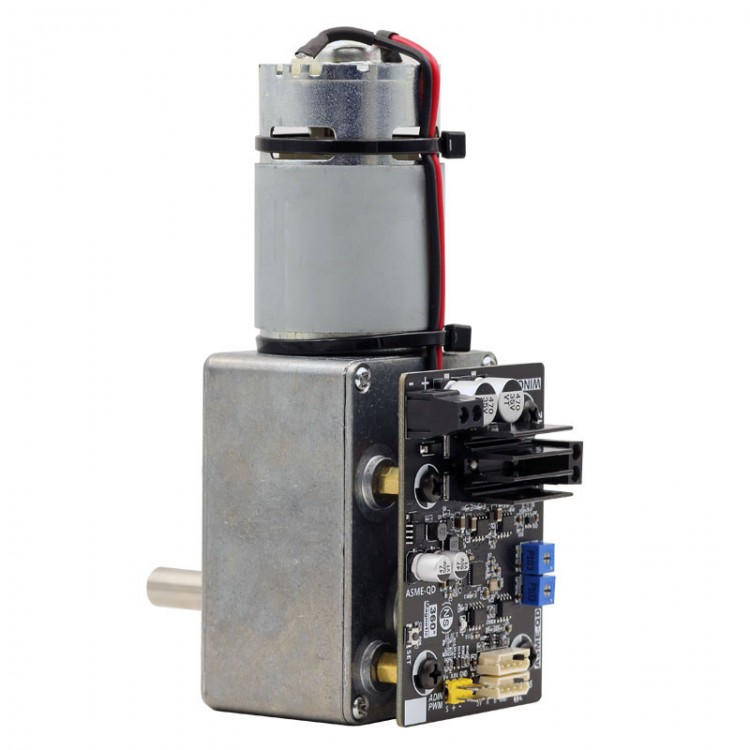

WINGXINE ASME-QDB 300Kg.cm Self-locking Worm Servo RS485 Bus Servo Supporting PWM & Voltage Control
Features:
- Suitable for servo controller, model aircraft wireless remote control and analog voltage control
- Alloy gear high-power motor with high-torque output
- Super light weight reduction box body made of aluminum alloy
- Easy to install and durable to use
Applications:
- Robot, robotic arm, manipulator, PTZ control, valve control, production line robot, camera PTZ control, etc.
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line robot control
- Precise control of valve angle
- Large camera PTZ remote control
- Various occasions requiring large torque angle control
Rated Parameters:
- Rated voltage: 8V~24V/DC (8V/MIN~30V/MAX, limit voltage)
- No-load current: < 500mA (Current limit: 5A; it is recommended to use a switching power supply greater than 10A or battery)
- Limit angle: ±180° or 0°~360° (MAX); the servo has electronic limit adjustment
- Control mode: RS485 communication (level voltage 5V), pulse or analog voltage (communication method can be customized)
- Control resolution: 360° corresponds to 15Bit resolution (32768), 32-bit MCU for ARM, real digital port to read magnetically encoded data
- Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum
- Weight: 1100g
- Dimensions: 108mm*58mm*148mm
- Mechanical life: >1,000,0000 times/full load (conservative value)
Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Current limit: 5A±0.2A (MAX)
- Working angle: ±180° or 0°~360° (MAX)
- Weight: 1000g~1100g
Package Included:
- 1 x Servo
- 1 x Signal Cable
Note:
- Battery is not included.
