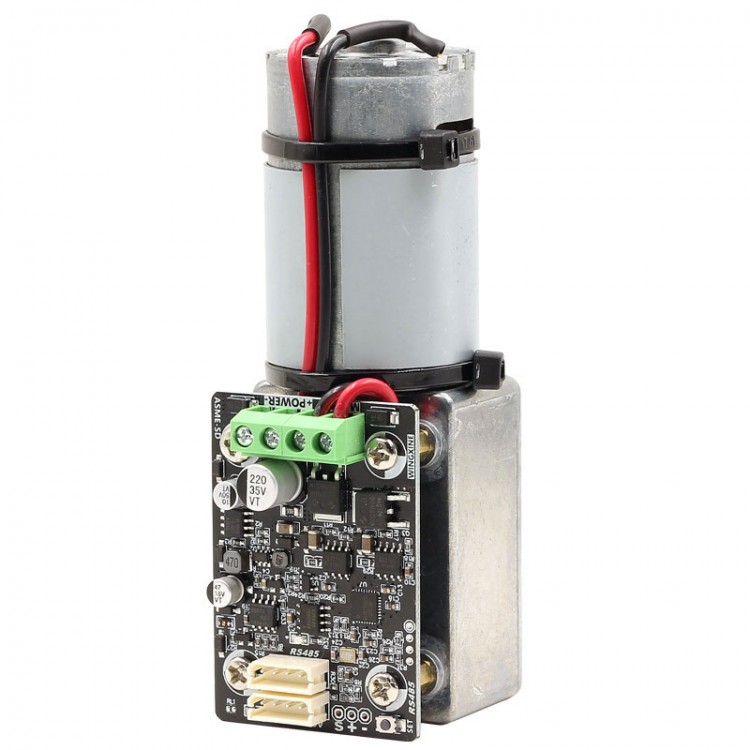

WINGXINE ASME-SDB 120Kg.cm Self-locking Worm Servo RS485 Bus Servo Supports PWM and Voltage Control
Features:
- Suitable for servo controller, model aircraft wireless remote control and analog voltage control
- Alloy gear high-power motor with high-torque output
- Super light weight reduction box body made of aluminum alloy
- Easy to install and durable
Applications:
- Robot, robotic arm, manipulator, PTZ control, valve control, production line robot, camera PTZ control, etc.
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line robot control
- Precise control of valve angle
- Large camera PTZ remote control
- Various occasions requiring large torque angle control
Rated Parameters:
- Rated voltage: 7V~24V/DC (7V/MIN~30V/MAX, limit voltage)
- No-load current: < 500mA (Current limit: 1A, it is recommended to use a switching power supply greater than 5A or battery)
- Limit angle: ±180° or 0°~360°(MAX); the servo has electronic limit adjustment
- Control mode: RS485 bus mode: 5V TTL (protocol can be customized); RC mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency) customization; Analog voltage mode: 0V-5V input, 0V corresponds to 0°, 5V corresponds to 360° customized
- Control resolution: 360° corresponds to 12Bit resolution (4096), 32-bit MCU for ARM, real digital port to read magnetically encoded data
- Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum
- Weight: 400g
- Dimensions: 95mm*60mm*110mm
- Mechanical life: >1,000,0000 times/full load (conservative value)
Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Limit current: 1A±0.2A (MAX)
- Working angle: ±180° or 0°~360°(MAX)
- Control mode: RS485 bus mode: 5V TTL (customizable protocol); RC mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency) customization; analog voltage mode: 0V-5V input, 0V corresponds to 0°, 5V corresponds to 360° customization
- Weight: 400g~450g
Package Included:
- 1 x Servo
- 1 x 4Pin Bus Cable
Note:
- Battery is not included.
