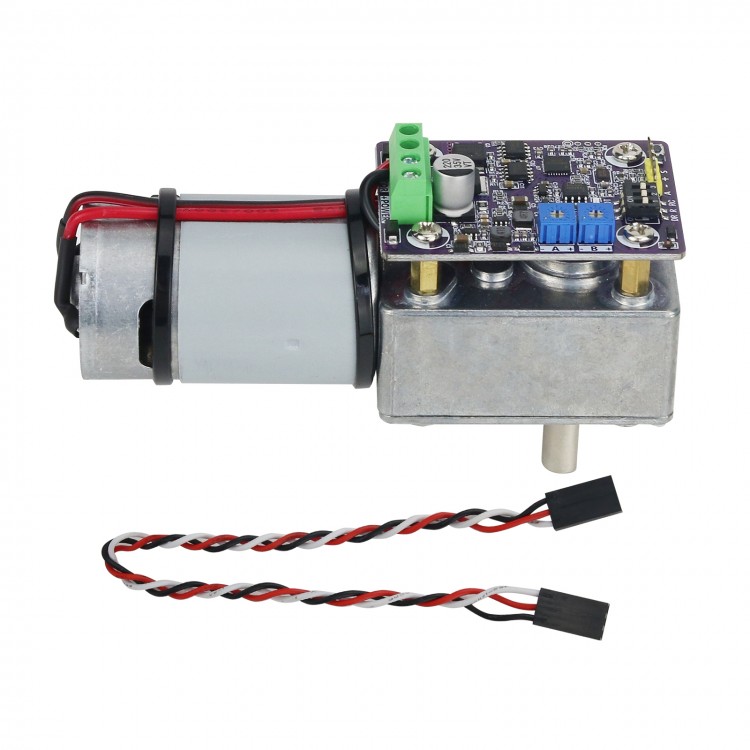

WINGXINE ASME-SQB Worm Gear Servo 360° Magnetic Encoder Servo for Robot Arm Valve Control
Features:
- Suitable for servo controllers, wireless remote controllers for model airplanes and analog voltage control
- Alloy gear high-power motor with high-torque output
- Ultra-lightweight gearbox body made of aluminum alloy
- Easy to install and durable to use
Application:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angle
- Large camera pan/tilt remote control
- Various occasions requiring large torque angle control
Rated Parameters:
- Rated voltage: 7~24V/DC (7V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit: 1A. It is recommended to use a switching power supply or battery greater than 5A)
- Limit angle: ±180° or 0°~360° (MAX). Servo has electronic limit adjustment
- Control method: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control. 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency), suitable for multi-channel servo controller mode. 2. Analog voltage mode: 0V-5V input voltage (0V corresponds to 0°, 5V corresponds to 360°)
- Control resolution: 360° corresponds to 12Bit resolution (4096); 32-bit MCU for ARM; digital port to read magnetic encoding data
- Material: Gear and shaft: alloy steel; gearbox body: cast aluminum
- Weight: 400g/0.88 lb
- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"
- Mechanical life: >1,000,000 times/full load (conservative value)
Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Current limit: 1A±0.2A (MAX)
- Working angle: ±180° or 0°~360° (MAX)
- Control methods: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency). 2. Analog voltage mode: 0V-5V input voltage. 0V corresponds to 0°, 5V corresponds to 360°
- Weight: 400-450g/0.88-0.99 lb
Specifications:
- Model: ASME-SQB
- Starting torque: 180kg.cm max
- Holding torque: 120kg.cm max
- Rated speed (24V power supply): 0.5s/60°
Package Included:
- 1 x Servo
- 1 x Signal Cable
Note:
- Battery is not included.
