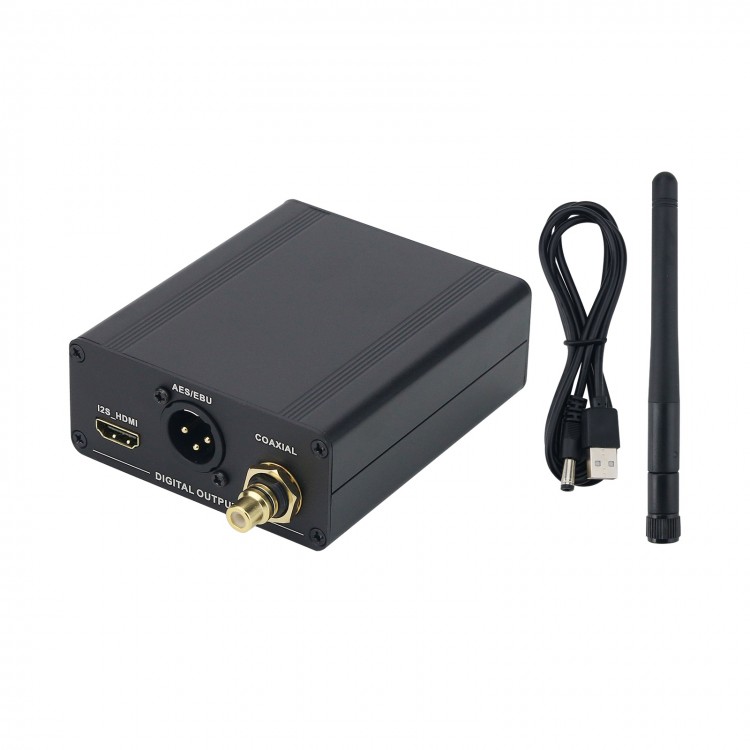

Wireless Bluetooth Audio Receiver to AES Optical Coaxial HDMI Output Decoding without USB Digital Interface

Wireless Bluetooth Audio Receiver to AES Optical Coaxial HDMI Output Decoding without USB Digital Interface

Description:
- This is a product that connects mobile phones and computers, with the function of converting Bluetooth 5.0 for aptx-HD audio and USB audio into fiber optic, coaxial, AES, I2S_ HDMI signal output.

Bluetooth audio conversion output:
- It adopts Bluetooth5.0 version CSR8675 for aptx-HD module with a output audio of 48K.
- Support for APTX-HD, for APTX-LL, for SBC, for AAC protocol.

Power supply:
- Simply connect to the computer with a USB cable to work properly. Mobile OTG is limited for Android only, for iPhone has current limit.
- Using a mobile phone charger, power bank, and home DC power adapter (DC5V, 5.5-2.1mm plug positive and negative inside and outside) for power supply. The DC power adapter automatically disconnects the power supply from the USB port upon insertion, and there is no conflict of simultaneous power supply. Idle mobile phone chargers, router adapters, switch power adapters, and linear power adapters at home can all be used as power sources. This machine has a built-in low noise regulator to isolate external power noise, so there is no need to pick up the power supply.
- Note: The HDMI port of this device is a dedicated audio HDMI port and cannot be connected to TV or video formats such as computers.

Specification:
- Size: 103 x 88 x 38mm
- Input interface: Bluetooth
- Output interface: Coaxial, optical, AES, I2S_HDMI
- Output bit rate: 48K for all output of Bluetooth mode
- Power port: DC power DC-005 interface

Package Included:
- 1 x Host
- 1 x Antenna
- 1 x USB to 5.5 Power Cable
