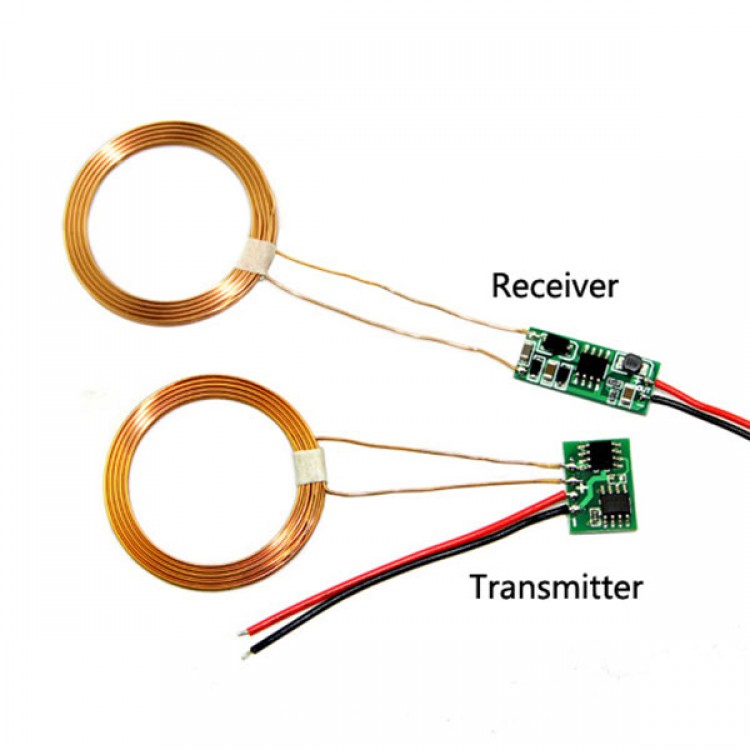

Wireless Charging Module Wireless Charging Module 5V Output Power Supply for Wireless Project
Description:
- The Wireless Charging Module can be applied in electronic equipments in common use for close wireless charging or power supply. Consisted of a transmitter and insulation coil, it could serve as a replacement for the Wireless Power Supply with stable 5V output voltage and maximum 600mA output current. Its small size and insulation coil is more suitable for using in wireless project.
Features
Stable power supply
Insulation Coil
Space-saving design
Specifications
Input Voltage: 12Vdc
Input Voltage(limits): 13.5Vdc
Output Voltage: 5Vdc
Output Current(maximum): 600mA
Transmitter Coil Inductance: 30uH
Transmit-receive distance: 1-20mm
Transmitter : 17*12*4mm
Receiver: 24*10*3mm
Coil Diameter: 38mm
Coil Height: 2mm
