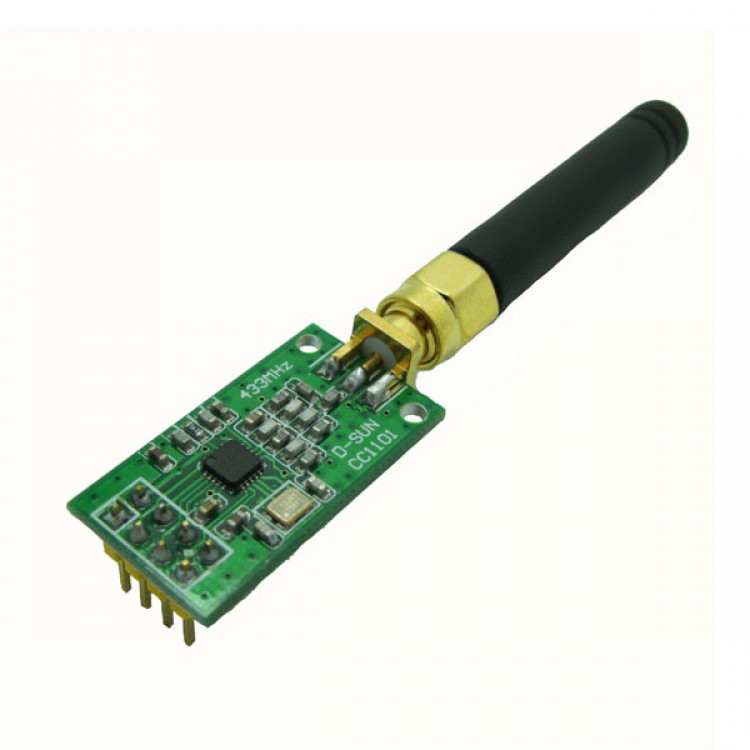

Wireless RF Transceiver Module 433Mhz CC1101 CC1100 RF1100SE Antenna
Description:
- Operating voltage: 1.8V ~ 3.6V (recommended 3.3V)
- Maximum rate of 500kbps, support for 2-FSK, GFSK and MSK modulation.
- Setup softwafe can modify Rate, Power, Frequency.
- High sensitivity (1.2Kbps under-110dBm, 1% packet error rate)
- Built-in hardware CRC error detection, and address control.
- Lower current consumption (RX in, 15.6mA, 2.4Kbps, 433MHz).
- Programmable control of output power, up to +10 dBm.
- Wireless wake-up functionality to support low-power electromagnetic activation, wireless wake-up low-power sleep state of the equipment.
- Support the transmission channel before the auto-clean-up visits (CCA), Carrier Sense System.
- Fast frequency changes brought about by a suitable synthesizer frequency hopping system.
- Module can be software-based address, software programming is very convenient.
- Standard 2.0mm DIP spacing interfaces for embedded applications.
- Separate 64-byte RX and TX data FIFO.
- Transmission Distance: open to the actual transmission distance 250-300 meters (depending on the specific situation of the environment and communication baud rate settings.
Package list:
- 1 x Wireless RF Transceiver Module 433Mhz CC1101 CC1100 RF1100SE Antenna
