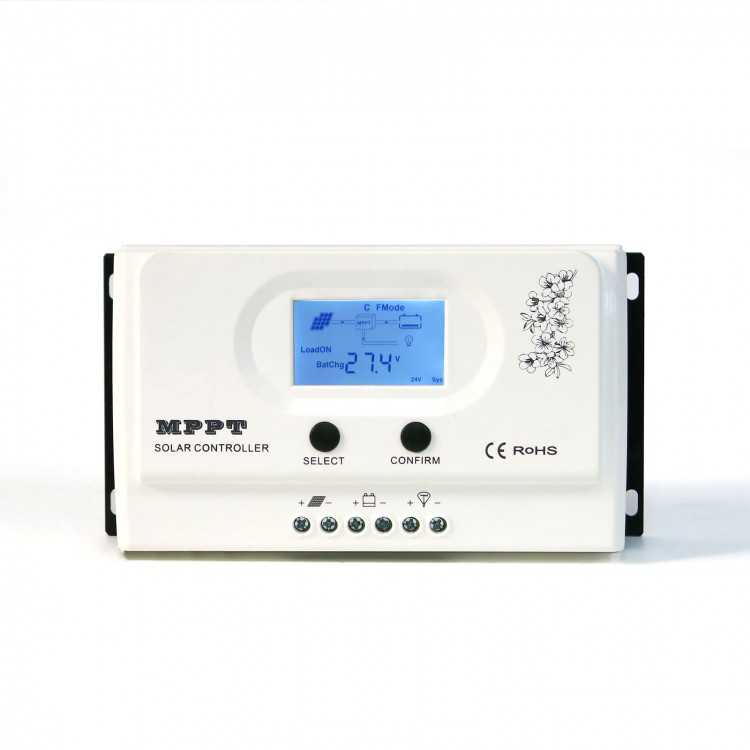

Product Description: Wiser 3 series adopted with auto cool,high conversion efficiency,low power consumption and LCD display. It features an efficient MPPT control algorithm.Added the output function(USB 5V 3A).For the mppt controller can be widely used in off-grid solar system,Communication base station solar system,household solar systems,street light solar systems,field monitoring and other fields.
Features:
- High efficiency MPPT control algorithm,MPPT efficiency>=99.5%,whole Machine conversion efficiency upto 98%;
- Charge mode:three stages (fast charge,constant charge,floating charge).It prolongs service life of the batteries.
- Discharge mode:ON/OFF mode,Dual time control mode,PV& Time control mode,PV voltage control mode.
- Recommended battery types:Flooded,Sealed lead acid,Gel battery.Other types of the batteries can also be defined.
- Most information could be provided by LCD like:system type.PV input voltage,PV input current,day,month,total generating power,battery type,battery voltage,charging current,charging power,discharge current,discharge power and so on.
- RS485 communication
- CE,RoHS,FCC certifications approved.
Parameter:
- Model:Wiser3 series
- System Voltage:DC12V/24V Automatic Recognition
- Rated Current:30A
- USB:5V 3A
- Maximum PV(voc) Voltage:150VDC(30A)
- Charge mode:MPPT(maximum power point tracking)
- MPPT efficiency:>=99.5%
- System type:DC12V/24V system:Automatic Recognition
- Output control mode:ON/OFF mode,Dual time control mode,PV&Time control mode,PV voltage control mode
- Output control set way:Controller button or PC software
- LCD Display:System type,PV voltage,charge voltage,charging current,charging power,temperature etc.
- PC software:RS485
- Protection function:Yes(PV Reverse connection,Battery Reverse connection,Over voltage,low voltage,over temperature,over load,Short circuit protection etc.)
- Cooling mode:Auto cool
- Type of Mechanical Protection:IP30
