• WIT Motion WTRTK-4GR IMU GPS-RTK Wireless Positioning Module High Precision Differential Positioning UAV GPS Module

WIT Motion WTRTK-4GR IMU GPS-RTK Wireless Positioning Module High Precision Differential Positioning UAV GPS Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$392.99
  • Price in reward points: 3930 Reward Points: 39
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $385.13 $377.27 $365.48 $349.76 Contact US
Quantity:

WIT Motion WTRTK-4GR IMU GPS-RTK Wireless Positioning Module High Precision Differential Positioning UAV GPS Module

Difference:

- WTRTK-4GB: RTK wireless base station module; 4G communication; 50km wireless connection distance; Function: Provide differential data information.
- WTRTK-4GR: RTK wireless positioning module; 4G communication; 50km communication distance for self-developed base station, national coverage for Qianxun SI (developed on the basis of Beidou); Function: Mobile station receives differential data and outputs centimeter level positioning data.
- WTRTK-4DR: RTK wireless positioning and orientation module; 4G communication; 50km communication distance for self-developed base station, national coverage for Qianxun SI (developed on the basis of Beidou); Function: Mobile station receives differential data and outputs centimeter positioning data direction information, with inertial navigation function.
- WTRTK-LoraA: RTK wireless positioning and orientation module; Lora communication; 2km communication distance; Function: Mobile station receives differential data and outputs centimeter level positioning data.

Description:
- Multi-band receiver provides centimeter-level positioning accuracy in seconds. Simultaneous reception of GPS, GLONASS, Galileo and Beidou.
- Advanced anti-interference technology and calibration technology ensure the security of location and navigation information.
- High precision inertial navigation, WTRTK-4GA heading angle fusion IMU data, can still output accurate heading angle without GPS signal. WTRTK-4GA integrates IMU data and utilizes pure inertial navigation to achieve high-precision positioning.

Specification:
Communication method:
- RTCM transmission method: 4G/LORA network
- Differential result transmission method: TTL/RS232

Start time:
- Cold start: 24s
- Hot start: 2s
- Networking time: 8s

Output:
- Baud rate: 230400bps or 460800bpps
- Output level: TTL
- Output protocol: 0183
- NMEA sentence: RMC, VTG, GGA, GSA, GLL
- Refresh frequency: 20Hz

Power consumption:
- Voltage: DC9V - 36V, typ. 12V
- Current:
  WTRTK-4GB: <500mA/12V
  WTRTK-4GR: <200mA/12V
  WTRTK-4GA: <200mA/12V
  WTRTK-LORA: <200mA/12V

Environment:
- Operating temperature: -40℃ ~ +65℃
- Storage temperature: -40℃ ~ +65℃

Package Included:

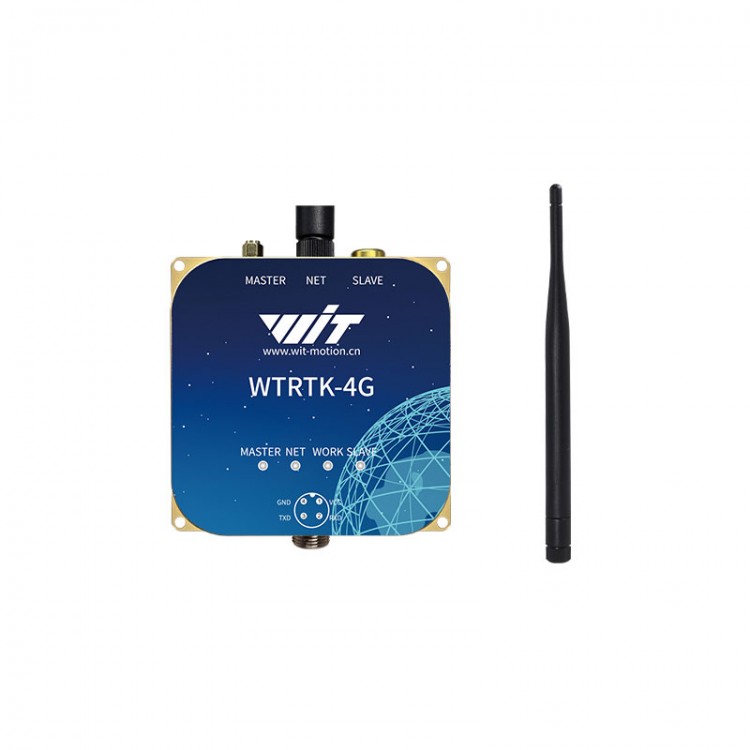

- 1 x WTRTK-4GR Module (Mobile Station)
- 1 x 4G Antenna
- 1 x TTL to 4-Core Aviation Adapter Cable (1m)
