Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $20.39 | $19.98 | $19.35 | $18.52 | Contact US |

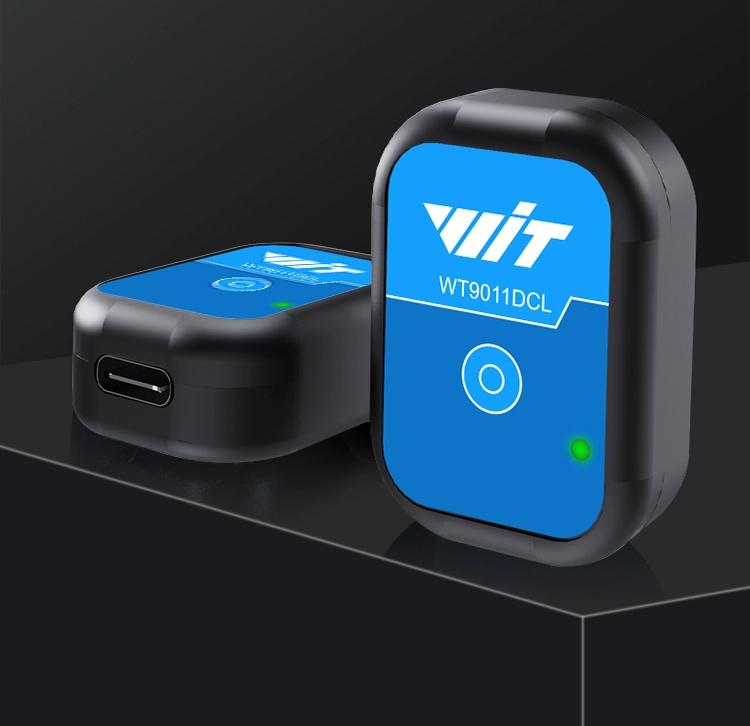

WIT WT9011DCL-BT50 Bluetooth5.0 Accelerometer Gyroscope Electronic Compass 50 meters Magnetometer Sensor
Product Information Address:
- https://wit-motion.cn/#/witmotion/search
Specification:
- Working current: 14mA
- Broadcasting current: 21mA
- Standby current: 14uA - 30uA

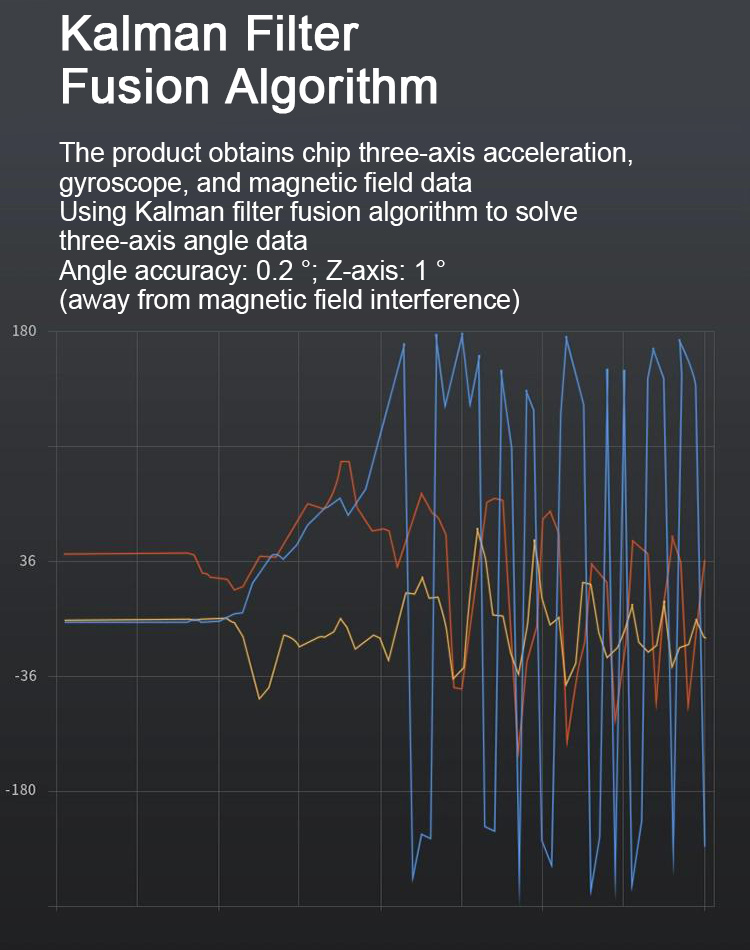

- Precision: 0.2° for X/Y axis; 1° for Z axis (no magnetic field interference and after calibration)

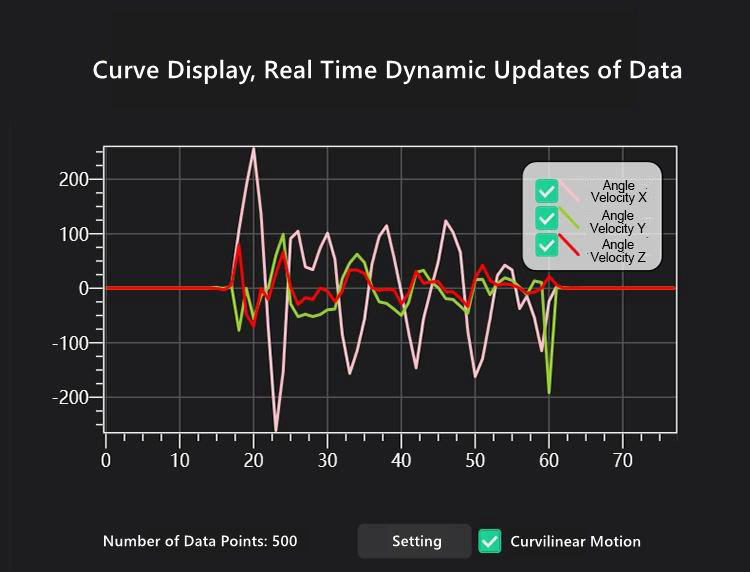

- Output content: acceleration, angular velocity, angle, magnetic field (does not output magnetic field by default)
- Output frequency: 0.2Hz - 200Hz
- Transmission distance: adopt for Bluetooth 5.0 technology, up to 50 meters (open area)
- Communication method: Bluetooth 5.0/Type-C
- Using duration: 8 hours
- Net weight: 9g
- Built-in battery: 130mAh

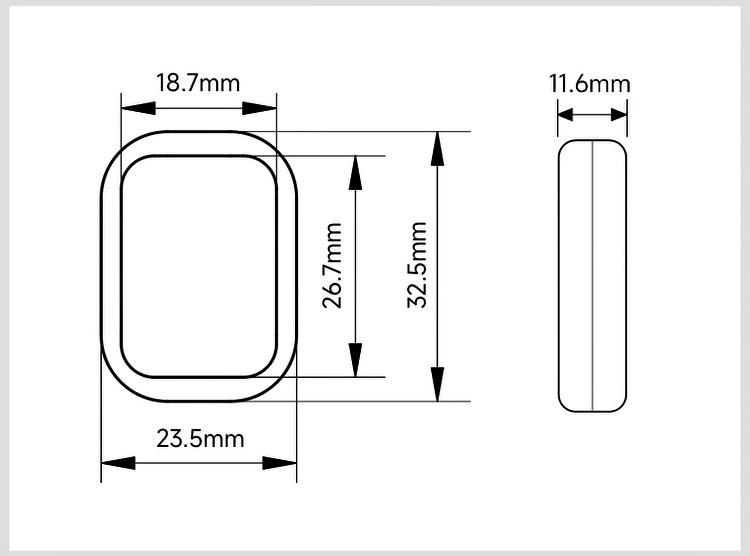

- Product size: 32.5 x 23.5 x 11.6mm
Range:
- Acceleration: +/-16g
- Angular velocity: +/-2000°/s
- Magnetic field: +/-2Gauss
- Angle: X/Z +/- 180°, Y+/-90°
Resolution:
- Acceleration: 0.5mg/LSB (2048LSB/g)
- Angular velocity: 0.061(°/s)/LSB
- Magnetic field: 0.0667mG/LSB
- Angle: 0.0055°/LSB

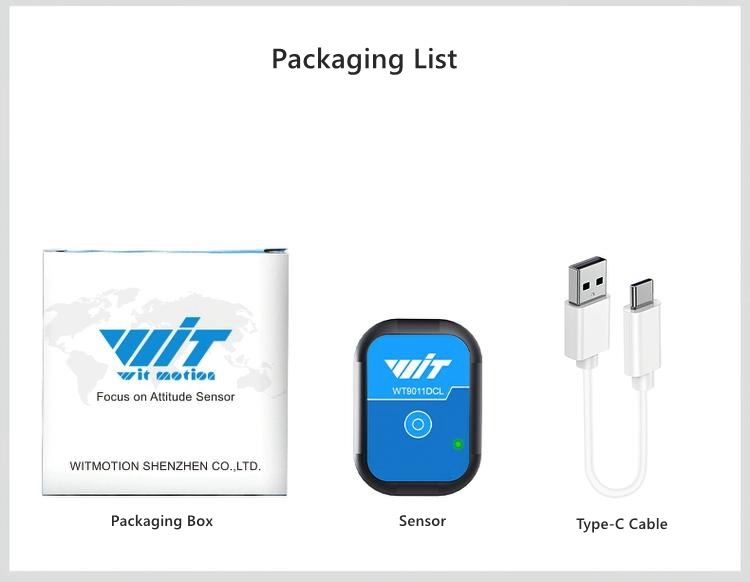

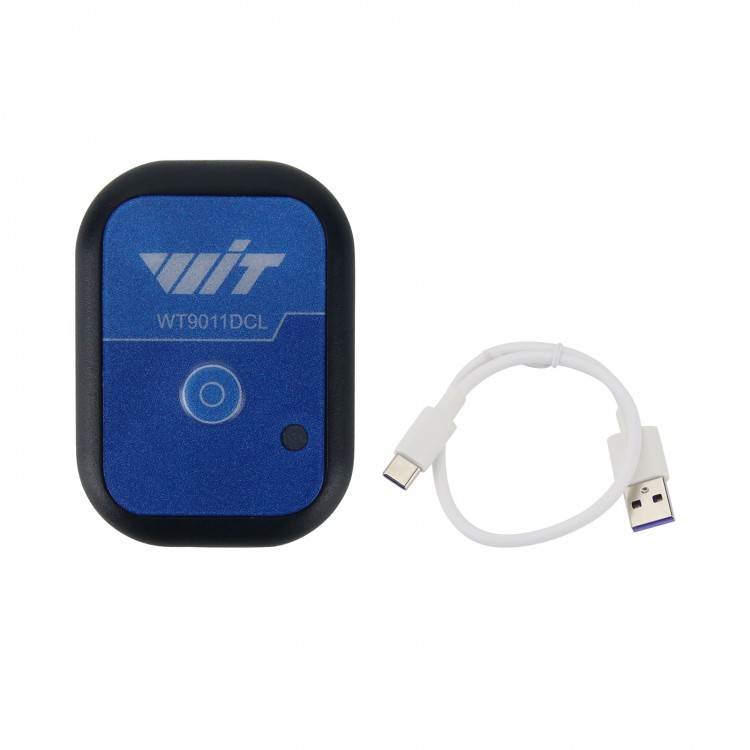

Package Included:
- 1 x Magnetometer Sensor
- 1 x Type-C Cable
Note:
- The USB Bluetooth 5.0 Adapter is not included, which need additional purchase.
