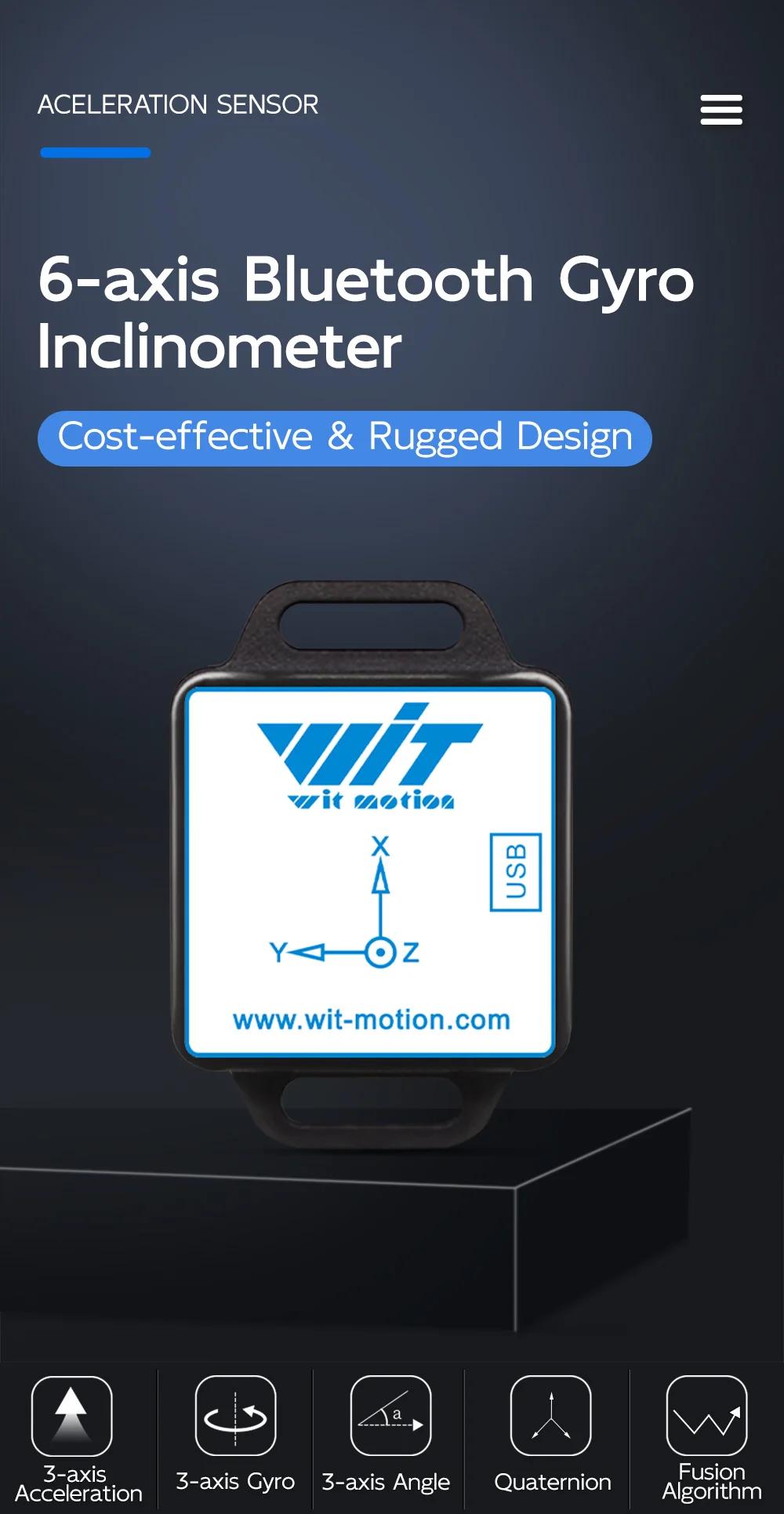

WitMotion BWT901CL Bluetooth2.0 Accelerometer Sensor + Gyroscope + Attitude Angle + Magnetic Field with USB-HID

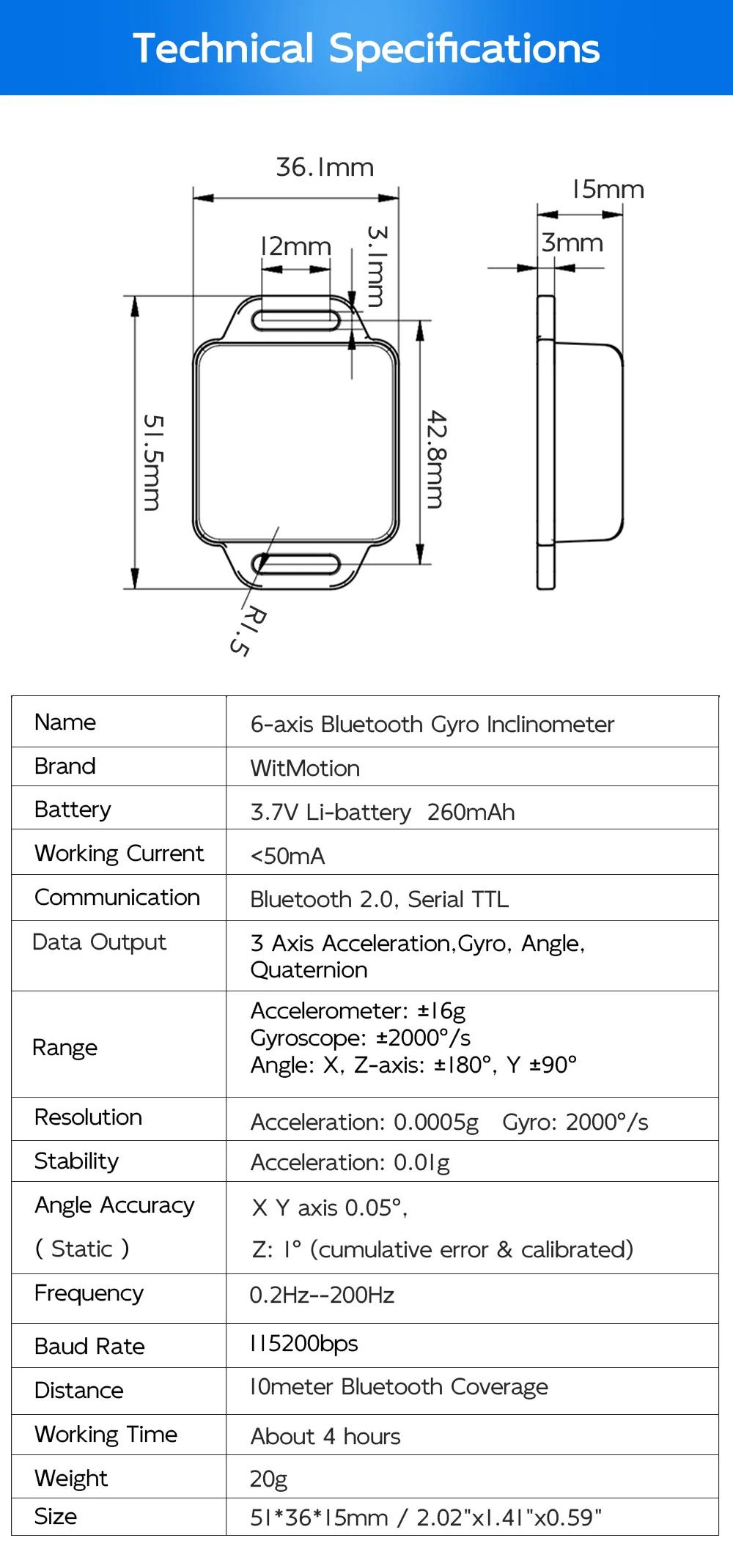

Specification:
- Chip: ICM42605 + MMC3630 + HC-06
- Voltage: 3.3 - 5V
- Current: < 50mA
- Interface: Bluetooth 2.0/serial TTL
- Output: 3-axis acc + gyro + angle + mag + quaternion
- Gyro range: +/- 250/500/1000/2000 deg/s
- Acc range: +/- 2/4/8/16g
- Angle range:
X, Z axis: +/- 180°
Y axis: +/- 90°

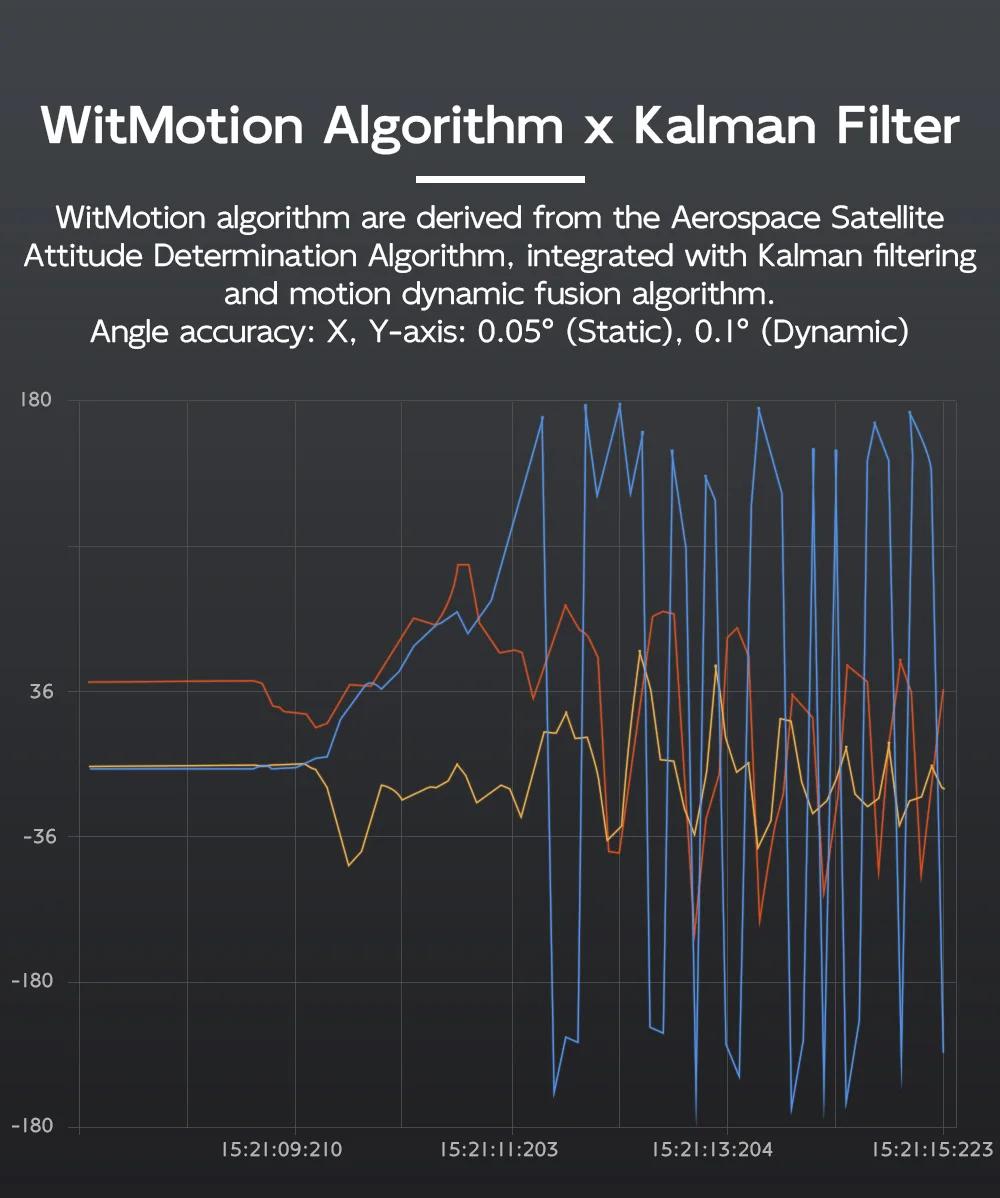

- Accuracy:
X, Y Static: 0.05°
Dynamic: 0.1°
Z axis: 1°
- Rate: 0.2 - 200Hz (default 10Hz)
- Baud rate: 115200

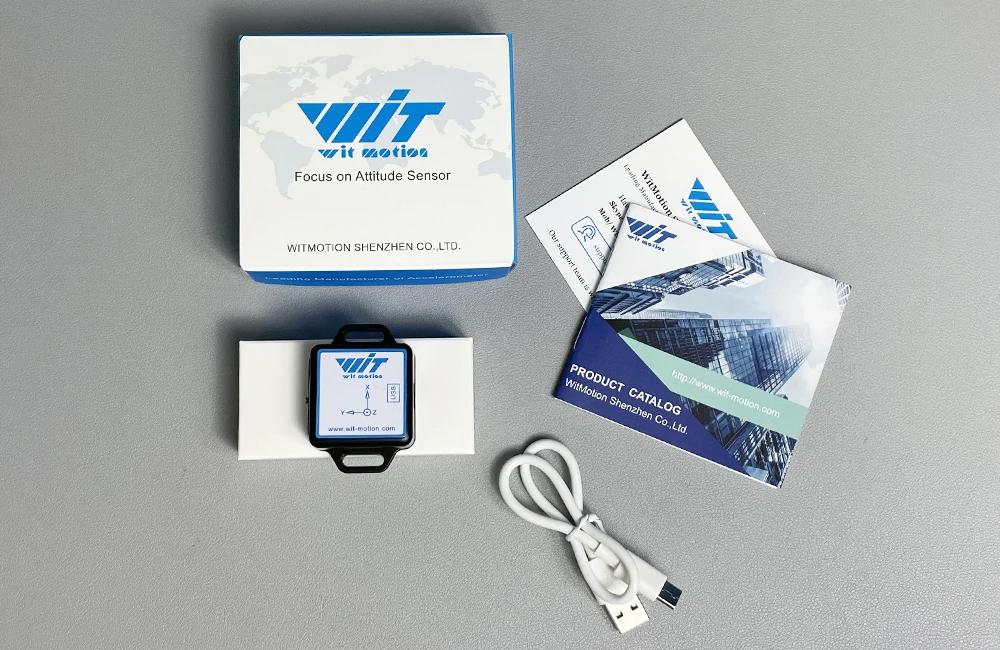

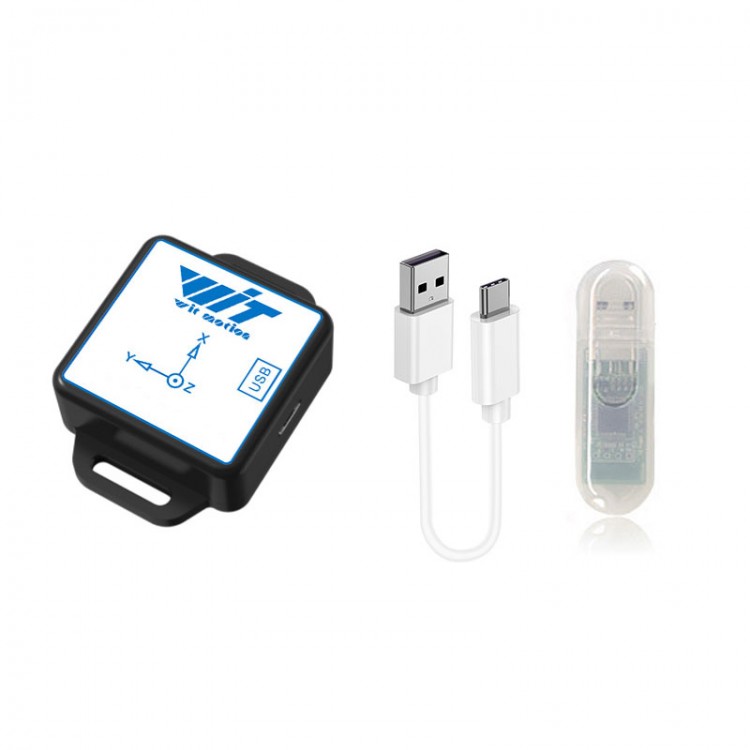

Package Included:
- 1 x BWT901CL
- 1 x USB-HID
