Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $22.60 | $22.14 | $21.45 | $20.52 | Contact US |

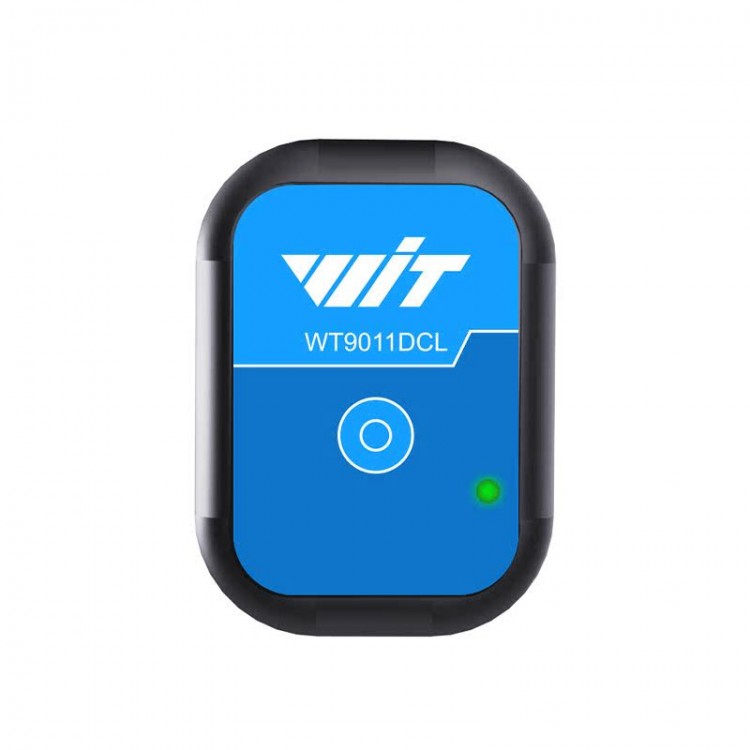

WitMotion WT9011DCL-BT50 BT5.0 Inclinometer Sensor Accelerometer Gyroscope Angle Sensor Magnetometer
Specifications:
- Model: WT9011DCL-BT50
- Data Logging: No storage function
- Bluetooth working distance: 50m/164ft
- Duration: 40 hours
- Operating current: 14~21mA
- Standby current: 14~30uA
- Output data: time, acceleration, angular velocity, angle, temperature and magnetic field (WT9011DCL-BT50 is not enabled by default)
- Range: Acceleration: ±16g; Angular velocity: ±2000°/s; Magnetic field: ±2Gauss; Angle: X/Z±180°, Y±90°
- Resolution: Acceleration: 0.5mg/LSB (2048LSB/g); Angle: 0.0055°/LSB; Angular velocity: 0.061 (°/s) /LSB; Magnetic field: 0.0667mG/LSB
- Angular accuracy: X, Y axis: 0.2°; Z-axis: 1° (no magnetic field interference and calibrated)
- Output frequency: 0.2-200Hz
- Baud rate: 4800bps-230400bps
- Product size: 32.5 x 23.5 x 11.6mm/1.3 x 0.9 x 0.5"
- Communication: Bluetooth 5.0
- Temperature: -20℃ to 60℃
- Power supply voltage: TypeC-USB 5V
- Weight: 18g/0.04lb
Package Included:
- 1 x Sensor
- 1 x Type-c cable
Packaging Details:
- G.W.: 0.2kg
