WitMotion WT901C-TTL 9 Axis Gyro Inclinometer for Acceleration + Gyroscope + Angle + Magnetic Field
Technical Specifications:
- Model: WT901C-TTL
- Input voltage: TTL: 3.3-5V
- Current: <25mA

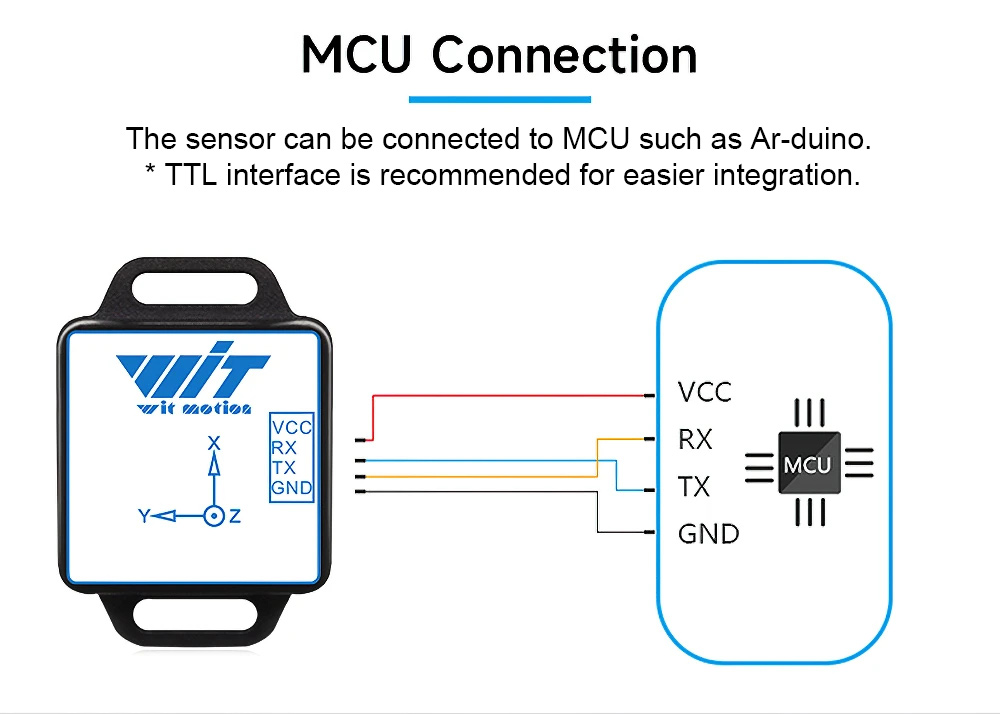

- Communication: TTL

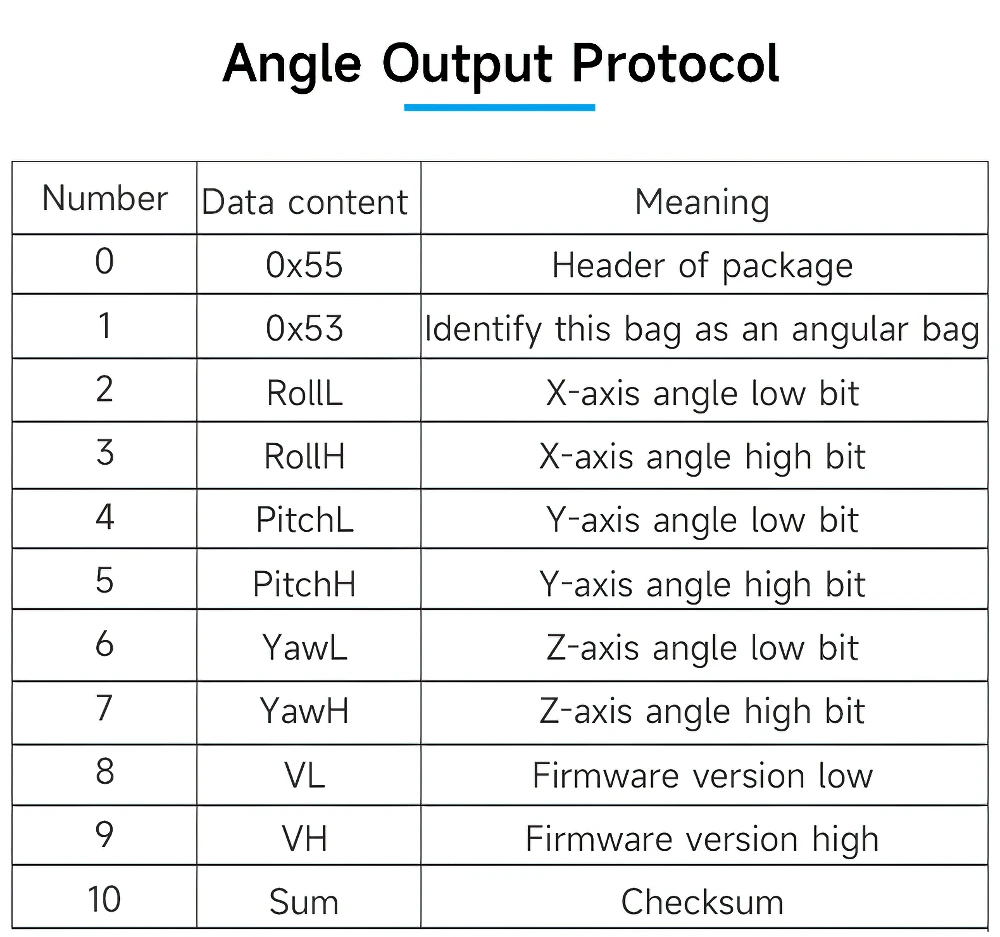

- Output data: 3-axis (acceleration, gyro, Euler angles and magnetic field) quaternion
- Range: Acceleration range: ±16g; gyroscope range: ±2000°/s; angle: X & Z axis: ±180°; Y-axis: ±90°; magnetic field: ±2Guass
- Resolution: Acceleration: 0.5mg/LSB (2048LSB/g); angular velocity: 0.061 (°/s) /LSB; magnetic field: 0.0667mG/LSB; angle: 0.0055°/LSB
- Angular accuracy: X & Y axis: 0.2°; Z-axis: 1° (No magnetic field interference and after calibration)
- Output frequency: 0.2~200Hz (default 10Hz)
- Baud rate: 4800~230400 (default 9600)

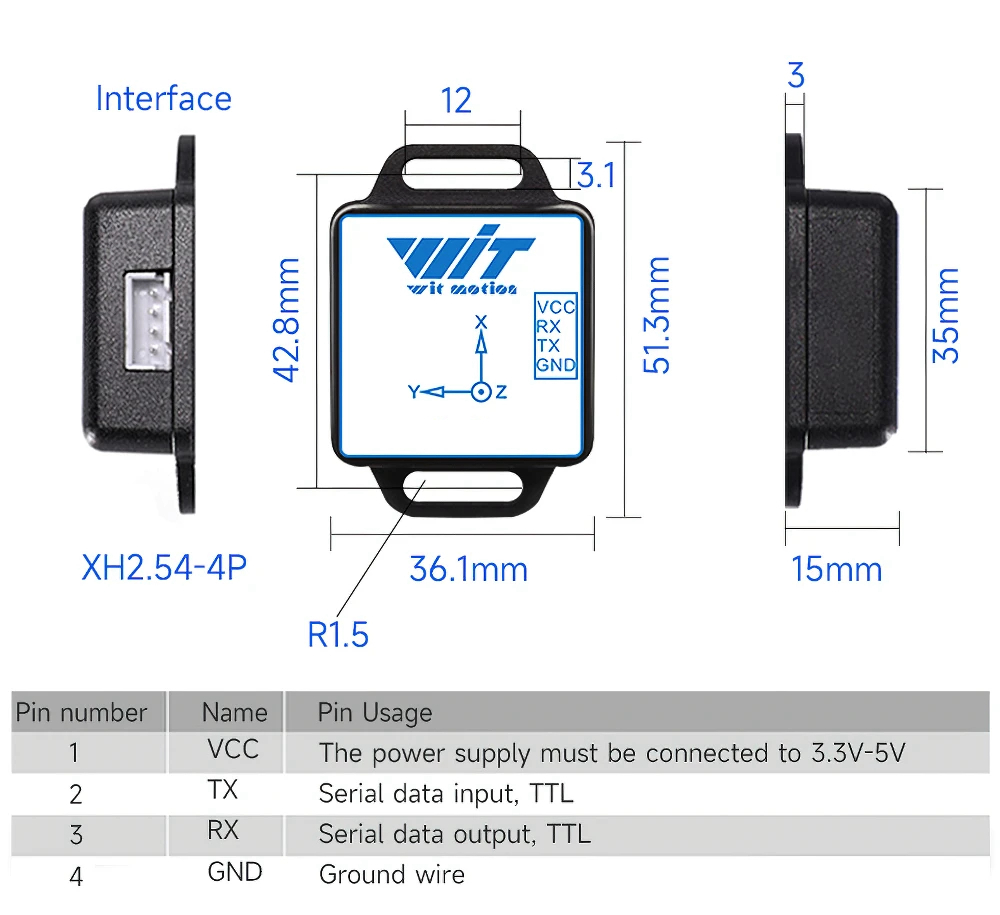

- Product size: 51.3 x 36.1 x 15mm/2 x 1.4 x 0.6"
- IIC rate: 400K
- Installation way: Vertical or horizontal (horizontal installation by default)
- Product weight: 20g/0.04lb
Application:
- VR headsets, drones, medical rehabilitation, motion monitoring, automotive, etc.
Package Included:

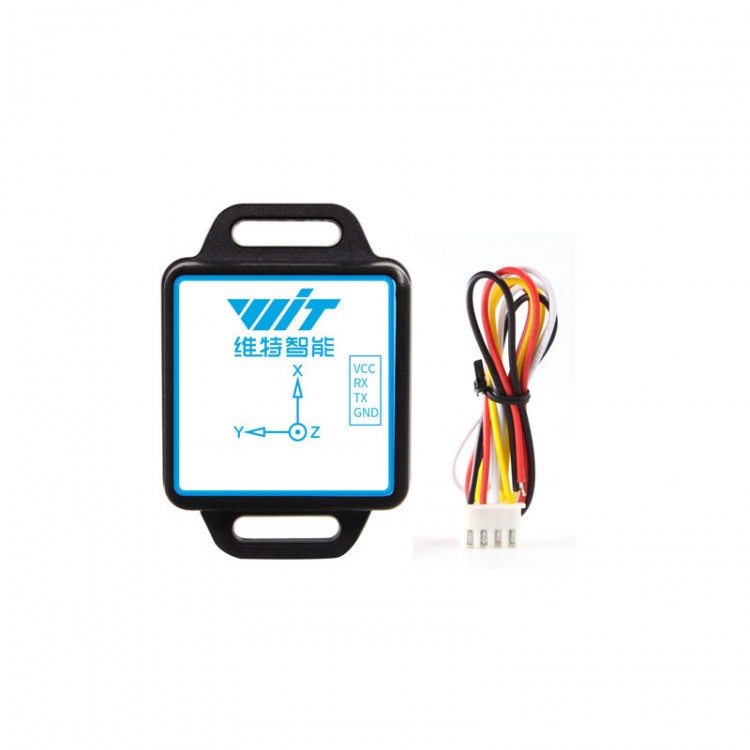

- 1 x Sensor
- 1 x Connection cable
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
Packaging Details:
- G.W.: 0.2kg
