Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $85.52 | $83.78 | $81.16 | $77.67 | Contact US |

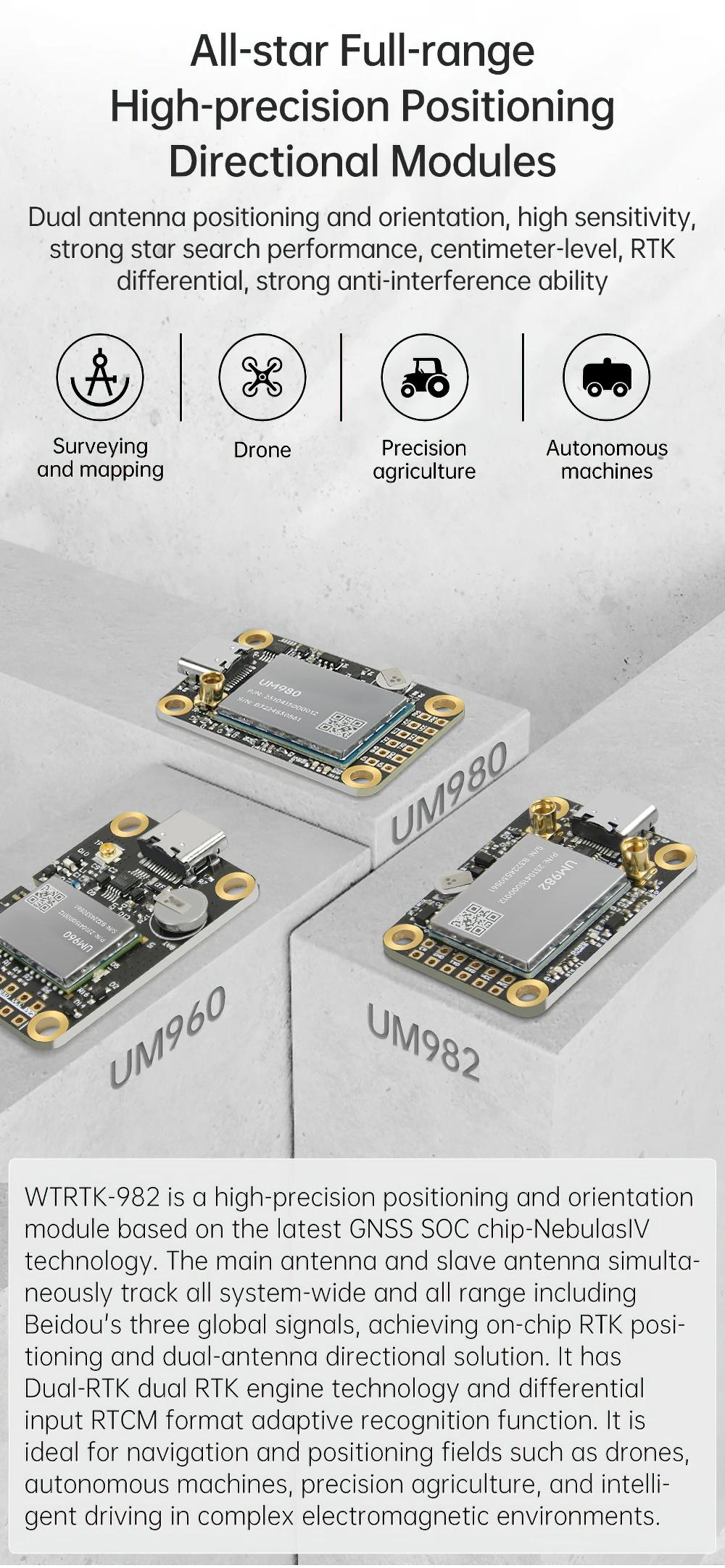

WitMotion WTRTK-960 Single Antenna 20Hz High Precision RTK GPS Module Centimeter-level Differential Relative Positioning UM960
Description:
- WT-RTK982 UM982 module is the general name of the series of high-performance BDS/GNSS full constellation high-precision positioning and orientation modules with the size of 26x 38mm. The module products are all based on the design of a new generation of Rf baseband and high-precision algorithm integrated chip - GNSS SoC.
- The main antenna and the secondary antenna simultaneously track the full-frequency points of the whole system including the Beidou three-sphere signal to realize on-chip RTK positioning and dual-antenna directional calculation.
- It has Dual RTK engine technology and differential input RTCM format adaptive recognition function. The built-in advanced anti-interference unit ensures that the module can still provide reliable and accurate positioning accuracy even in complex electromagnetic environment. It is aimed at high-precision navigation and positioning fields such as unmanned aerial vehicles, autonomous machines, precision agriculture and intelligent driving.

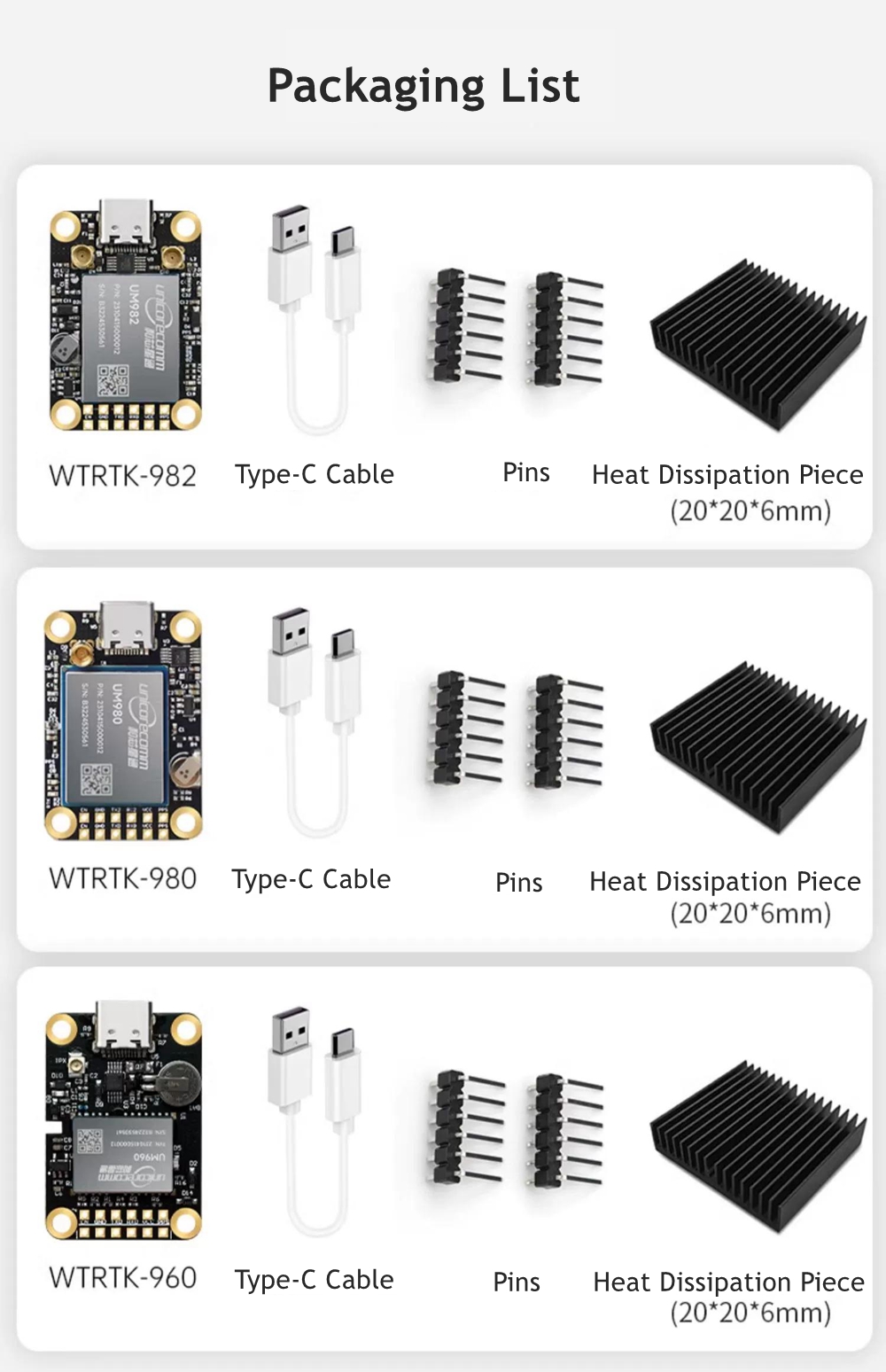

Package Included:
- 1 x Module
- 1 x Type-C Cable
- 1 x Pins
- 1 x Heat Dissipation Piece
