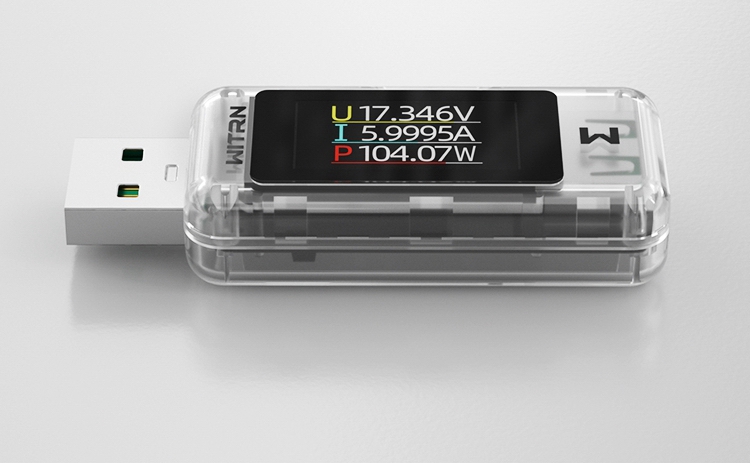

WITRN A2 Transparent USB Voltmeter and Ammeter Tester 8A 120W Mobile Phone Charging Detector
Features:
- ARM M4 CPU
- False fast charge protocol detection
- 2MHz Ripple Detection
- Ripple frequency curve
- 5P straight through 120W
- Authentic fast charge protocol detection
- ODDO Virtual data cable
- iP 5V charging acceleration
- Native USB host computer
- HID drive free upgrade firmware
- Multiple fast charging protocol deception
- EEPROM independent storage
- Low current equipment auxiliary charging
- Independent crystal oscillator
- ODDO data cable detection
- VA/D+D- Curve
- External independent power supply
Parameter:
- Model: A2
- Input current: 6A (unidirectional current)
- Voltage: DC4~24V
- Voltage resolution: 0.01V
- Current resolution: 0.01A
- Ampere time capacity: 0~99999AH
- Ampere time resolution: 0.0001AH
- Power on time: 100 hours
- Display screen: 0.96inch IPS
- Dimension: 47.2 x 21 x 12.2mm
- USB input interface: USB - A Male input 5 contactor
- USB output interface: USB - A Female input 5 contactor (support 6A output)
- Storage: EEPROM
- Voltage accuracy: Range 1%±nd
- Watt hour capacity: 0~99999WH
- Watt hour resolution: 0.0001WH
- Charging time: about 100 hours
- Resolution: 160 x 80
- Weight: 12g
- Static power consumption: <30mA
Package Included:
- 1 x A2 Tester
