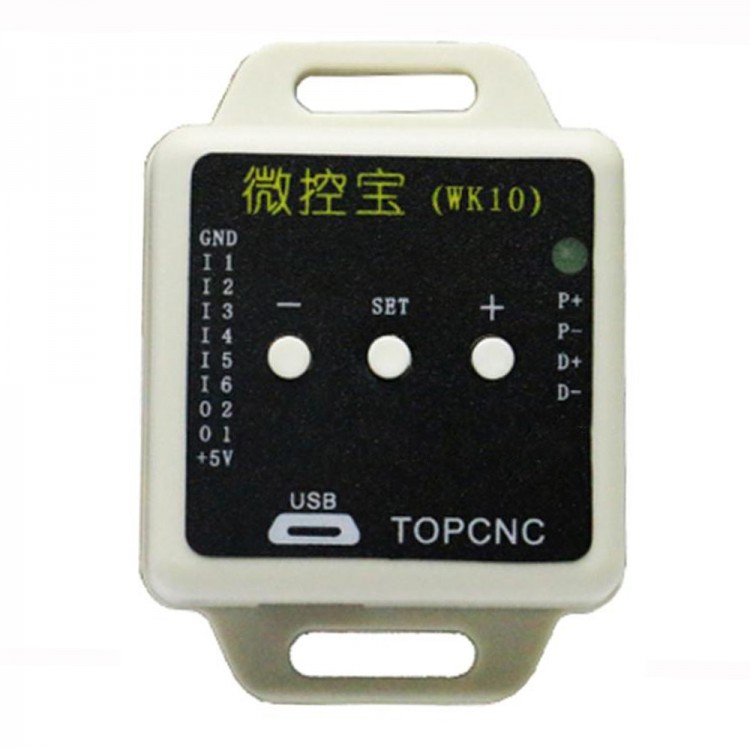

WK10 Single Axis Stepper Motor Controller USB Interface Motion Control System 6 Input 2 Output CNC
Description:
Adopt USB interface, support RS-485 RTU, bi-direction, balance transmission, strong anti-interference ability.
6 inputs and 2 outputs, can be used as independent controller with manual operating key.
Specification:
- RS-485 communication protocol: Modlbus-RTU
- Voltage: 5V
- Max. power consumption: 60W
- Operating temperature: -20~80 deg C
- Storage temperature: -40~100 deg C
- Humidity: <=90%
- Vibration: <4.9m/gxg
- Maximum pulse output frequency: 500k
- Output voltage: 5-24V
- Output maximum load current(single channel): 40mA
Main function:
- Parameter setting
- State monitoring
- Manual operation
- Program management
- Auto processing
Package included:
- 1 x Stepper Motor Controller
