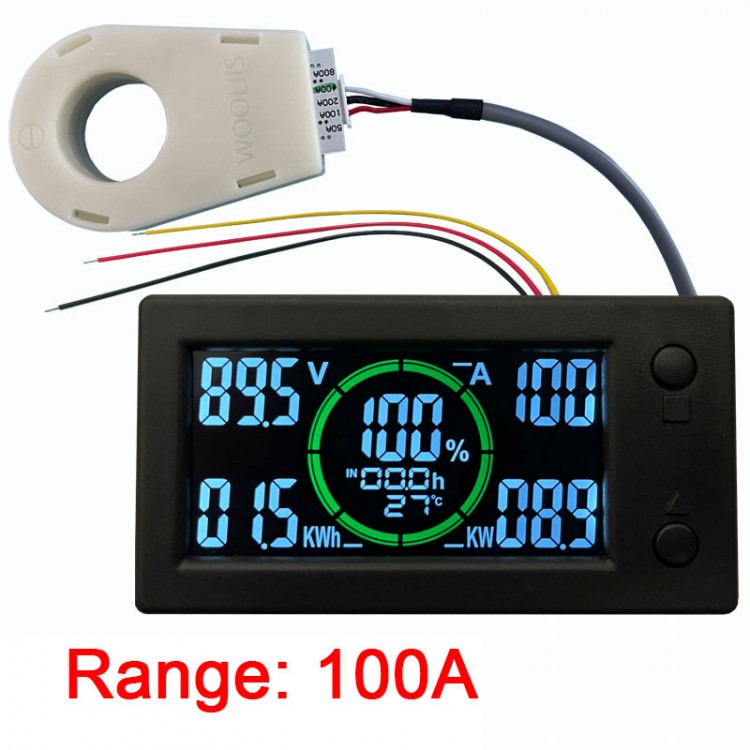

WLS-MVA050 100A LCD Display Coulometer High Performance Current Voltage Power Electric Energy Meter
Installation and setting steps:
- Thread the sensor
- Power supply for coulometer
- Set parameters
Parameter:
- Model:WLS-MVA100
- Current test range: 0~100A
- Current resolution: 0.1A
- Power supply voltage range: DC5~90V
- Voltage test range: DC0~300V
- Voltage resolution: 0.1V
- Capacity test range: 0~999AH
- Power test range: 0~999KW
- Electric energy test range: 0~999KWH
- Temperature: -50℃~125℃
- Measuring accuracy: +/-1%
- Slotting size of panel installation: 76mm x 40.5mm
- Diameter size of sensor hole: 20mm
- Working current: When the backlight is open: 25MA
When the backlight is closed: 4MA
Package Included:
- 1 x Host
- 1 x Sensor
- 1 x Power Cable
- 1 x Connection Cable of Sensor
