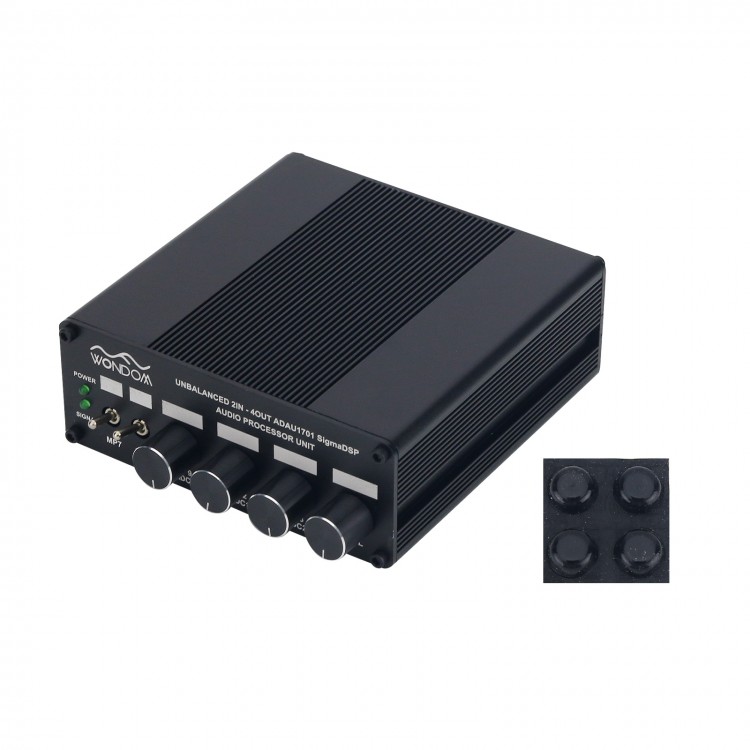

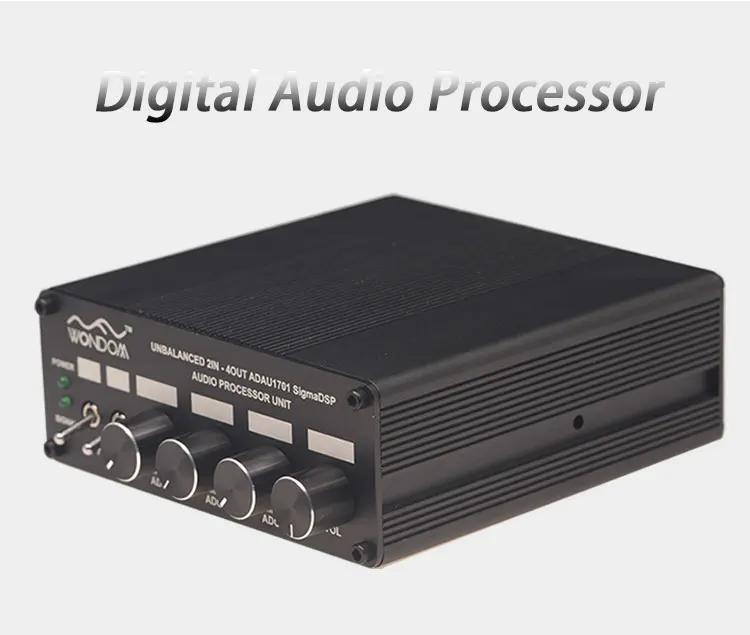

WONDOM ADAU1701 2.1 4.0 DSP Digital Audio Processor Preamplifier Signal Board Two in Four Out Support for Sigmastudio

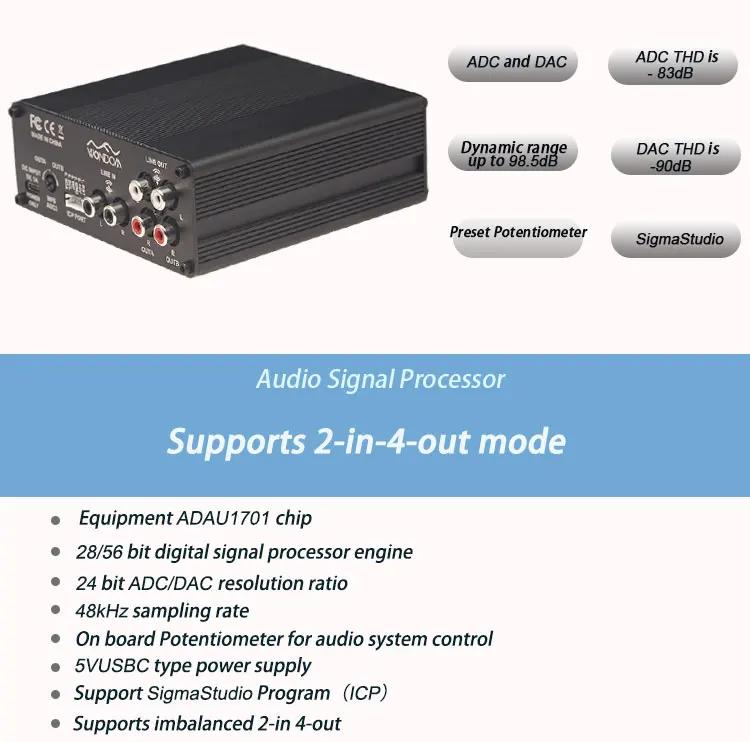

Features:
- Supports unbalanced 2-in-4-out mode
- Equipped with ADAU1701 chip
- 28/56 bit digital signal processor engine
- 24bit ADC/DAC resolution ratio
- 48kHz sampling rate

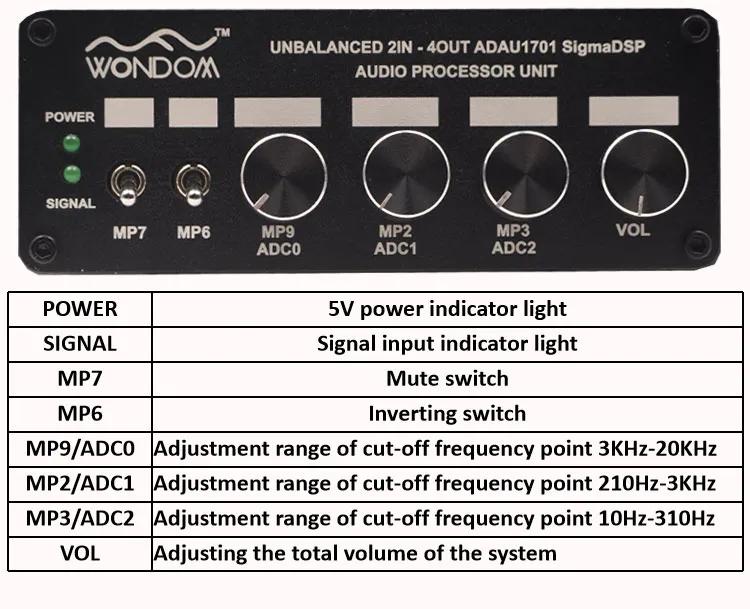

- Onboard potentiometer for audio system control
- 5V USB Type-C power supply
- Support for SigmaStudio Program (ICP)

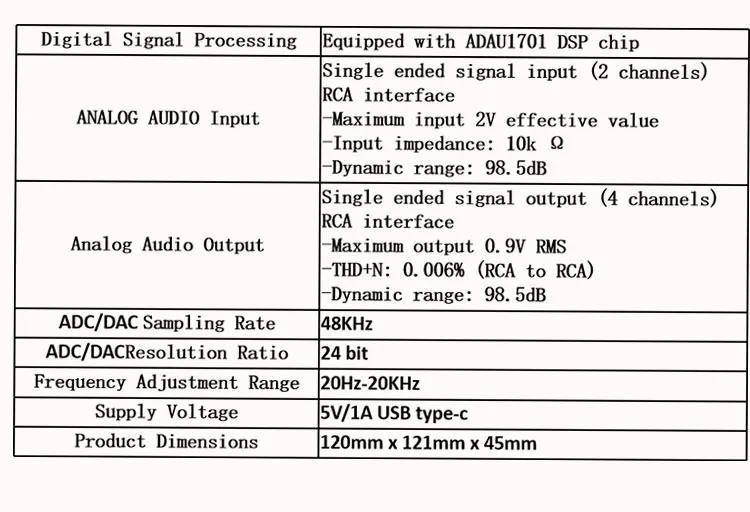

Specification:
- Digital signal processing: equipped with ADAU1701 DSP chip
- ADC/DAC sampling rate: 48kHz
- ADC/DAC Resolution: 24 bits
- Frequency adjustment range: 20Hz - 20kHz
- Power supply voltage: 5V/1A (USB Type-C)

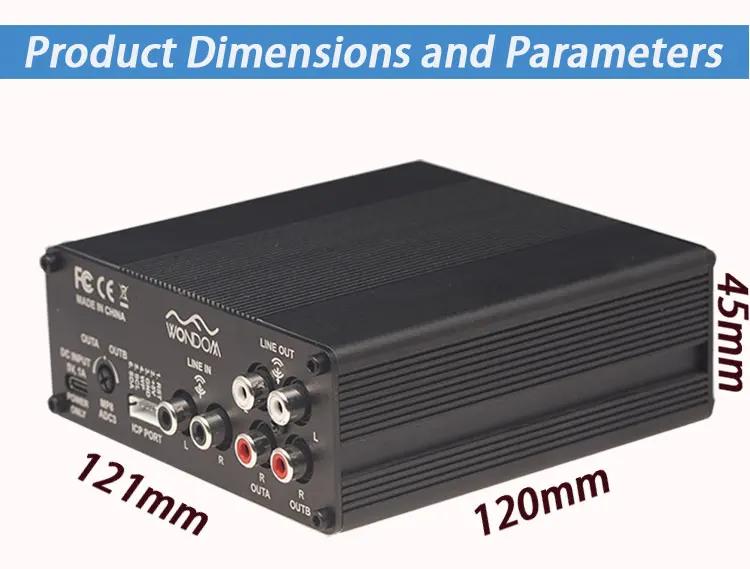

- Product size: 120 x 121 x 45mm

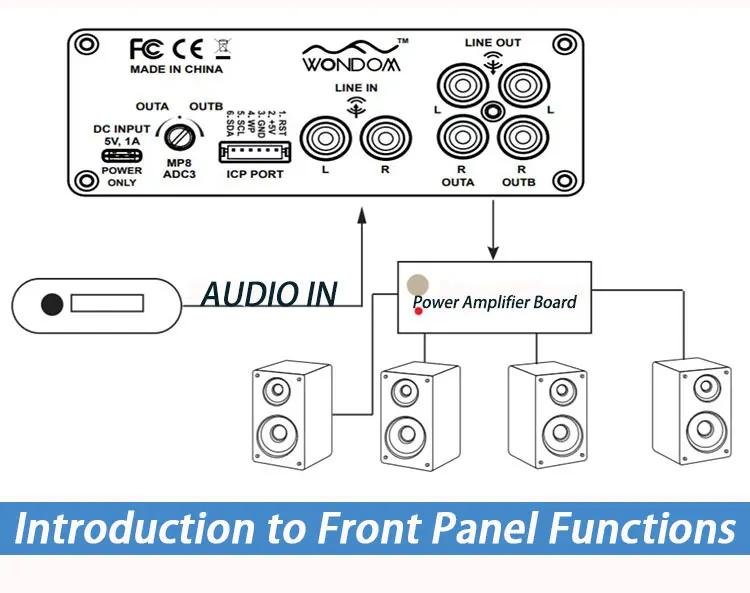

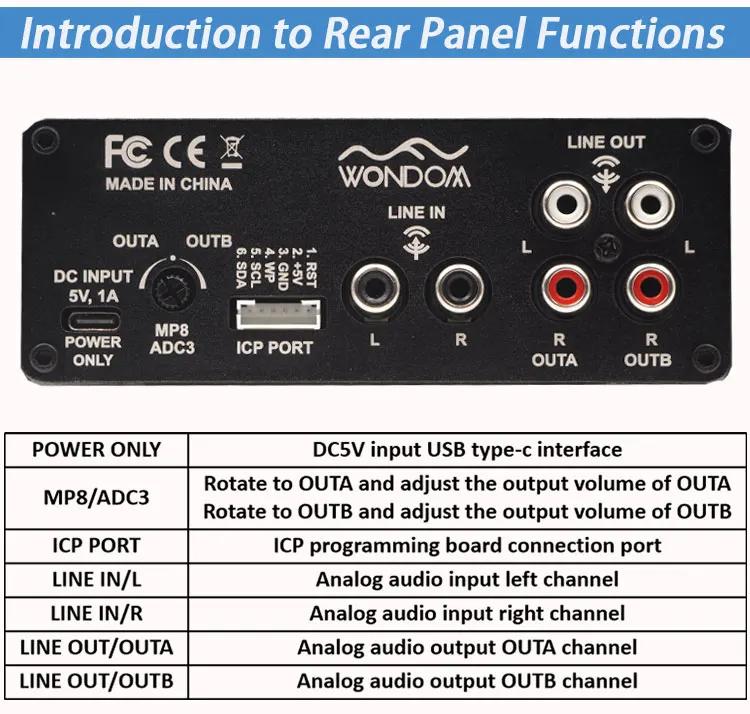

Analog audio input:
- Single end signal input (2 channel) RCA interface
- Maximum output 2V valid value
- Input impedance: 10kohm
- Dynamic range: 98.5dB
Analog Audio Output:
- Single-end signal output (4 channel) RCA interface
- Maximum output: 0.9V RMS
- THD+N: 0.006% (RCA to RCA)
- Dynamic range: 98.5dB
Package Included:
- 1 x Audio Processor
