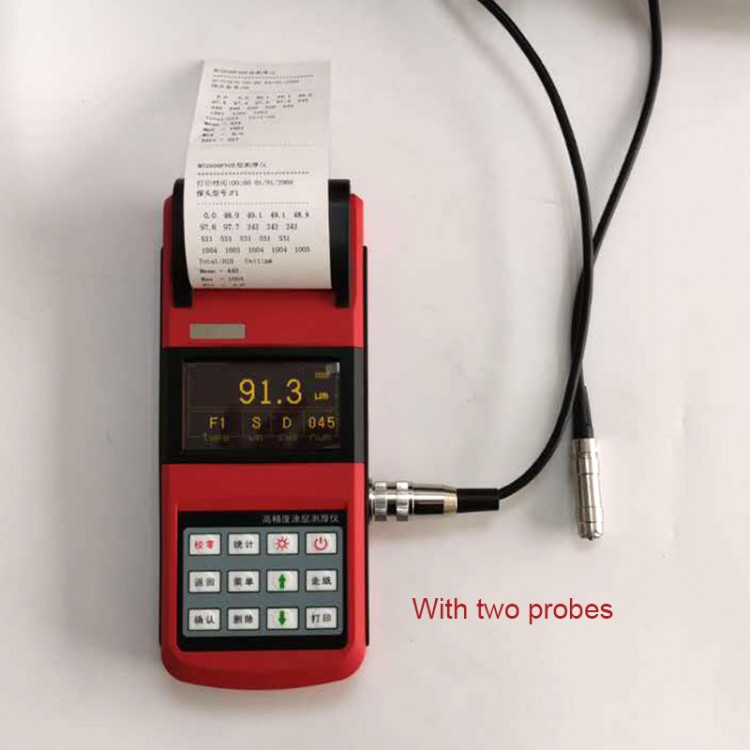

WONTEST MT2600 Portable Paint Coating Thickness Gauge High-Precision 2.7" OLED Screen w/ Two Probes

WONTEST MT2600 Portable Paint Coating Thickness Gauge High-Precision 2.7" OLED Screen w/ Two Probes

Product Features:
- More convenient operation interface;
- 2.7" OLED high-brightness screen, clear display;
- Excellent appearance design, with a large anti-skid strip on the side of the main unit, which provides a comfortable grip and patent protection;
- Menu operation, simple and convenient operation;
- This instrument uses two thickness measurement methods: magnetic and eddy current
- Optional probe: N1, F1;
- 495 measurement values can be stored;
- Limits can be set: automatic alarms for measured values outside the limits; and a batch of measured values can be analyzed by histogram;
- It has the function of communicating with the PC: it can transmit the measured value and statistical value to the PC for further processing of the data;
- There are two shutdown methods: manual shutdown and automatic shutdown;
- Adopt international 9-pin socket;
- Standard USB interface can communicate with host computer through software.

Product Technical Parameters:
- Measuring principle: magnetic induction and eddy current
- Probe connection mode: split wire connection (replaceable)
- Temperature and humidity: 0-40℃; 20%RH~90%RH
- Statistics function: average value (MEAN), maximum value (MAX), minimum value (MIN), test times (NO.), standard deviation (S.DEV)
- Working mode: direct mode (DIRECT) and group mode (Appl)
- Measurement method: continuous measurement method (CONTINUE) and single measurement method (SINGLE)
- Upper and lower limit settings: Yes
- Storage capacity: 495 measurements
- Connect to computer: can connect to computer
- Shutdown mode: manual and automatic

Package Included:
- 1 x Set of Coating Thickness Gauge

Note:
- Optional Probe: N1, F1. Please tell us the probe you want when purchasing. Thank you!
- Power supply: 5x1.2v Ni-MH battery. Batteries are not included.

N1 Probe Parameters:
- Working principle: eddy current
- Measuring range: 0-1250um (chrome plating on copper 0-40um)
- Low limit resolution: 0.1um
- Indication error: one-point calibration ±[3%H+1.5]; two-point calibration ±[ (1-3)%H+1.5]
- Measurement conditions:
* Minimum radius of curvature: 3 mm
* Diameter of the smallest area of the substrate: 5mm
* Minimum critical thickness: 0.3mm

F1 Probe Parameters:
- Working principle: magnetic induction
- Measuring range: 0-1250um
- Low limit resolution: 0.1um
- Indication error: one-point calibration ±[3%H+1]; two-point calibration ±[ (1-3)%H+1]
- Measurement conditions:
* Minimum radius of curvature: convex 1.5 mm
* Diameter of the smallest area of the substrate: 7mm
* Minimum critical thickness: 0.5mm
