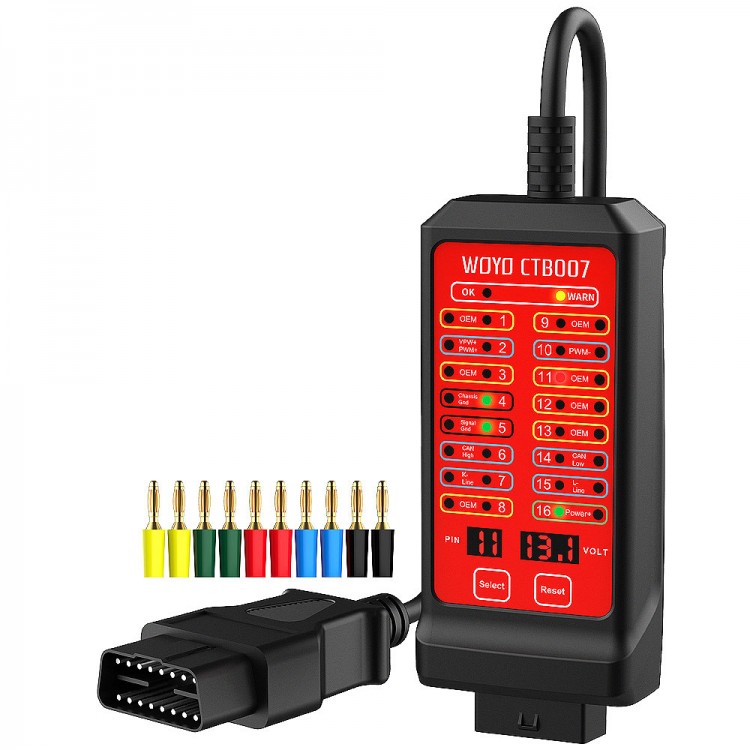

WOYO CTB007 CAN Test Box/Pin Settings Diagnostic Tool/OBD Voltage Measurement/OBD II Detector
Introduction:
1. CAN Tester Box is a CAN Bus circuit tester compatible with 12 and 24 volt systems;
2. Before other diagnostic devices was connected to the DLC, testing the DLC (OBD port) if any abnormality. If there is a short circuit or polarity reverse connected, this can avoid diagnostic scan tool be damaged;
3. Real-time display of communication signals ( such as communication protocol signals ) on the allocated pins which can quickly locate faults and replace the voltage measurement function of digital multi-meter;
4. Fast to connect 16 pins during vehicle maintenance diagnosis;
5. Monitoring input voltage of OBD when burning module, high and low voltage alarm;
6. The contact point can be inserted into probes and measured without breaking wires.
Specifications:
- Input Voltage: 9.0-32.0V DC
- Maximum Load: 2.0A
- Resolution: 0.1V
- Overload Protection: Yes, PTC Fuse (Self-Healing)
- Reverse Polarity Protection: Yes, LED On Pin 4 & 5 Turn Red
- Protocol Standard: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, and CAN (J-2284)
- Operating Temperature: 0℃-50℃; Humidity< 70%
- Probes Socket: 16P*2.0mm
- OBD Cable Length: 70cm/27.6"
Package Included:
- 1 x Tester
- 10 x Probes
