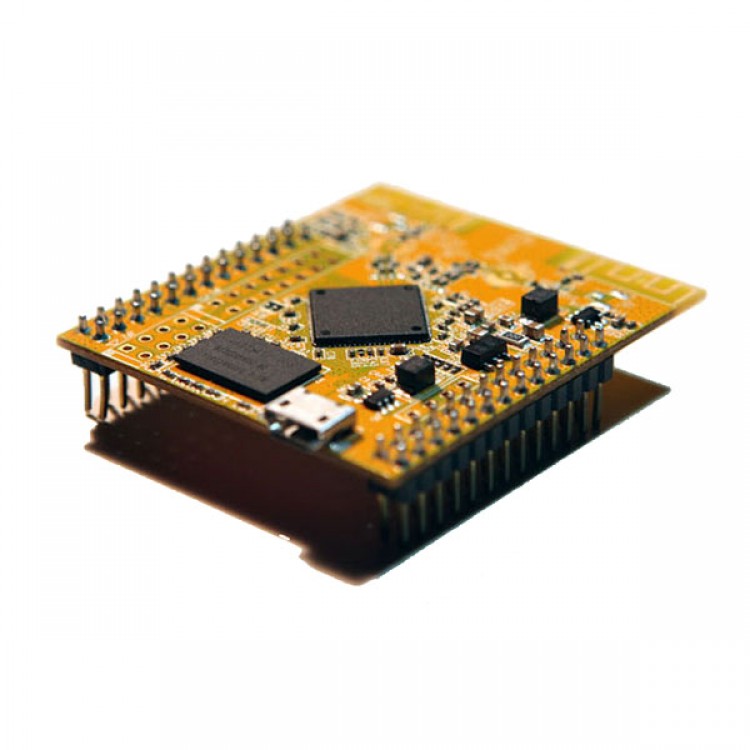

WRTnode - Open Source and Mini OpenWRT Dev Board

WRTnode - Open Source and Mini OpenWRT Dev Board

Description
- WRTnode is a high performance CPU, low power consuming, cheap, and samll dev board that can run OpenWRT OS and also easy to port all open source software of Linux.
- Today, more and more devices could connect to internet, named Internet of Things. The WRTnode is a small node which could connect internet all by itself and do something complicated. Such as track a cat running over, identify what you are saying and twitter it, check email and pronounce for you, learn how your room layout and find garbage to sweep while streaming camera video to you over internet.

Features:
- Opensource hardware for OpenWrt
- mini Linux+Wi-Fi board
- easy and completed IDE
- smart machines' heart
- low power-consuming
- complete I/Os, high performance
- 300MBit/s Wi-Fi and low price

Hardware Specification
- 45mm*50mm
- MTK MT7620N 600MHz mips cpu (MIPS24KEc)
- 512Mb DDR2ram
- 128Mb spi flash
- 2T2R 802.11n 2.4 GHz
- 23GPIOs
- 5-Port PHY (JTAG)
- SPI
- UART Lite
- USB2.0

Software Feature
- Based on OpenWrt BARRIER BREAKER (Bleeding Edge, r41508)
- Using rt2860v2 Wi-Fi driver hacked by lintel
- Using customized uboot hacked by manfeel
- WRTnode aplci up link Wi-Fi configuration (aps/vw/nr/ia)
- Luci Wi-Fi wpa patch for rt2860v2
- Local dns add i.wrtno.de & wrtnode.lan besides openwrt.lan to WRTnode with the default WRTnode ip is - 192.168.8.1
- WRTnode additional feature (all source opened github.com/WRTnode):
- Native gcc-mipsel on mt7620 and bin-utils
- Porting linino (Arduino yun) source to WRTnode
- Shine: fast fixed-point mp3 encoding
- And some WRTnode demo apps: opencv application demo, mechanical control demo, RESTful front-end demo and some other thing
