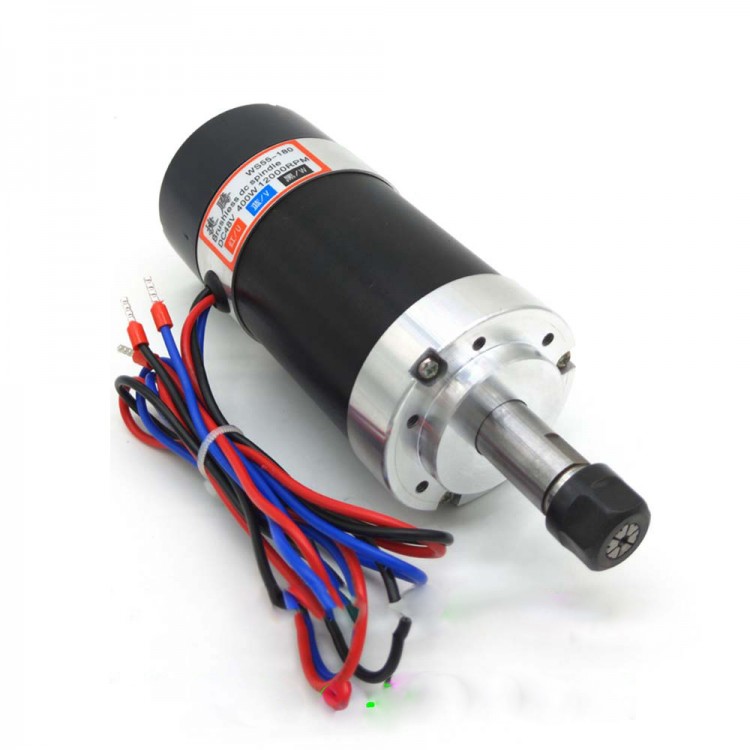

WS55-180 Advanced ER11 Spindle Brushless 400W 12000RPM + Brushless DC Motor Driver + Clamp Base
Description:
Its ER11 400W brushless spindle featuring longer lifespan. It is perfect for engraving PCB and acrylic, drilling holes. It comes with default 3.175mm chuck. If you need other sizes, please contact us.
Features of Brushless Spindle:
- High speed 12000r/min
- Brushless for less interference performance
- Long service life with lower maintenance costs
- The radial runout of the main shaft is about 0.01-0.03
- Can be used to engrave materials such as metal or non-metal
- This spindle comes with forced air cooling and can work for a long time
- Integrated Construction: It is built around an ER11 collet which allows for many different sized shanks to be used
- Smooth operation with less noise, adding extra stability to your running device
- ABS shell for excellent heat dissipation and upgraded protection performance
Specifications:
- Compatible Motor: Brushless DC Motor
- Working Voltage: DC 48V (Brushless driver and motor is needed)
- Power: 400W
- Speed: 12000r/min
- Torque: 0.45N.m
- Insulation Resistance: >2 megohms
- Insulation Dielectric Strength: 400V
- Diameter: 55mm
- Chuck Length: 35mm Shank (43mm including nut and sandwich)
- Diameter of Chuck: 15mm
- Spindle Net Weight: 1.1kg
Package Included:
- 1 x ER11 Spindle
- 1 x Clamp Base
- 1 x Motor Driver with Speed Adjustment Knob & Start Switch
