WSUB 1G 240-960MHz Portable Spectrum Analyzer Handheld Spectrum Analyzer Pocket Size

WSUB 1G 240-960MHz Portable Spectrum Analyzer Handheld Spectrum Analyzer Pocket Size

Description:

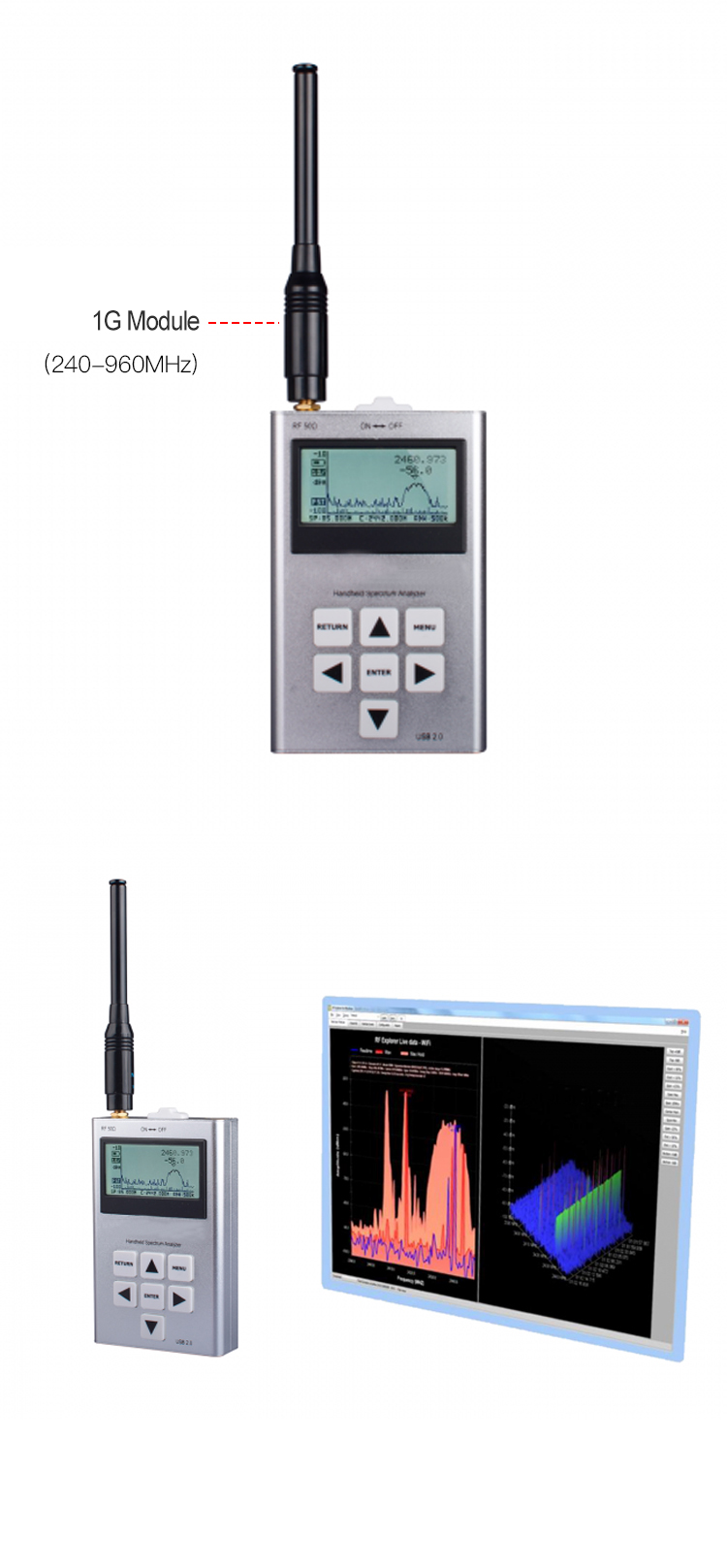

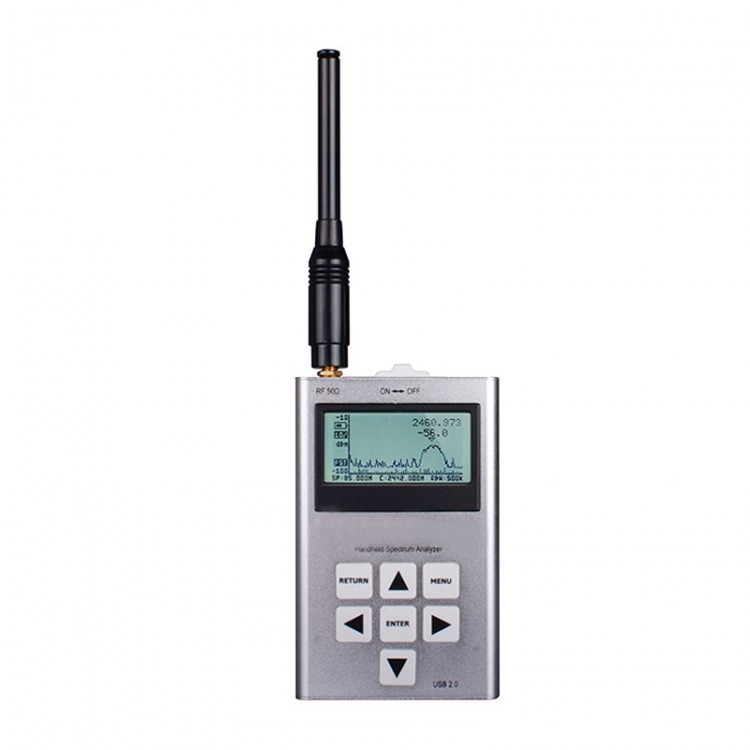

This is a handheld digital spectrum analyzer, a very affordable tool that works in all popular ISM bands. It is based on a highly integrated frequency synthesizer that provides high performance, compact size, low power consumption and low cost.

It is designed to work equally well outdoors and indoors, and can be connected to a PC for additional functions using a standard mini USB 2.0 connector.

This model has a high-quality NA-773 broadband telescopic antenna.

Spectrum Analyzer Operation Case:
1.Test intercom: http://www.tudou.com/listplay/pM5KI2-Hzbg/MgvADctXYwQ.html?FR=LIAN
2.Wifi analysis: http://www.tudou.com/programs/view/NipwO5jfOB8/
3.Computer software to watch wifi: http://www.tudou.com/programs/view/7FDm4AxUf0U/
                                                  http://www.tudou.com/programs/view/zIOk5p7Y9As/
4.Test car remote key: http://www.tudou.com/programs/view/MgvADctXYwQ/
5.How to update firmware: http://www.tudou.com/programs/view/IAAkUHTgX2Y/

Features:
- Pocket size and light weight
- Solid aluminum alloy metal casing
- Spectrum analyzer mode maximum peak and hold, normal, coverage and average mode
- Provides free firmware upgrades for life, and features required by the open community
- High capacity, charging via USB
- Open source client for Windows PC
- Additional frequency bands and functions can be expanded with internal expansion modules
- Broadband covers all popular ISM bands below 1GHz, including 315MHz, 433MHz, 868MHz and 915MHz, and also includes UHF TV, 70cm and 33cm HAM radio stations, GSM and other frequencies covered from 240MHz to 960MHz.

Note: This unit does not include RF generator function, only the spectrum analyzer function is available.

Specifications:
- Measurable frequency range: 240-960 MHz
- Single screen scanning frequency width: 100 MHz
- Frequency range (SPAN): 112KHz-100MHz

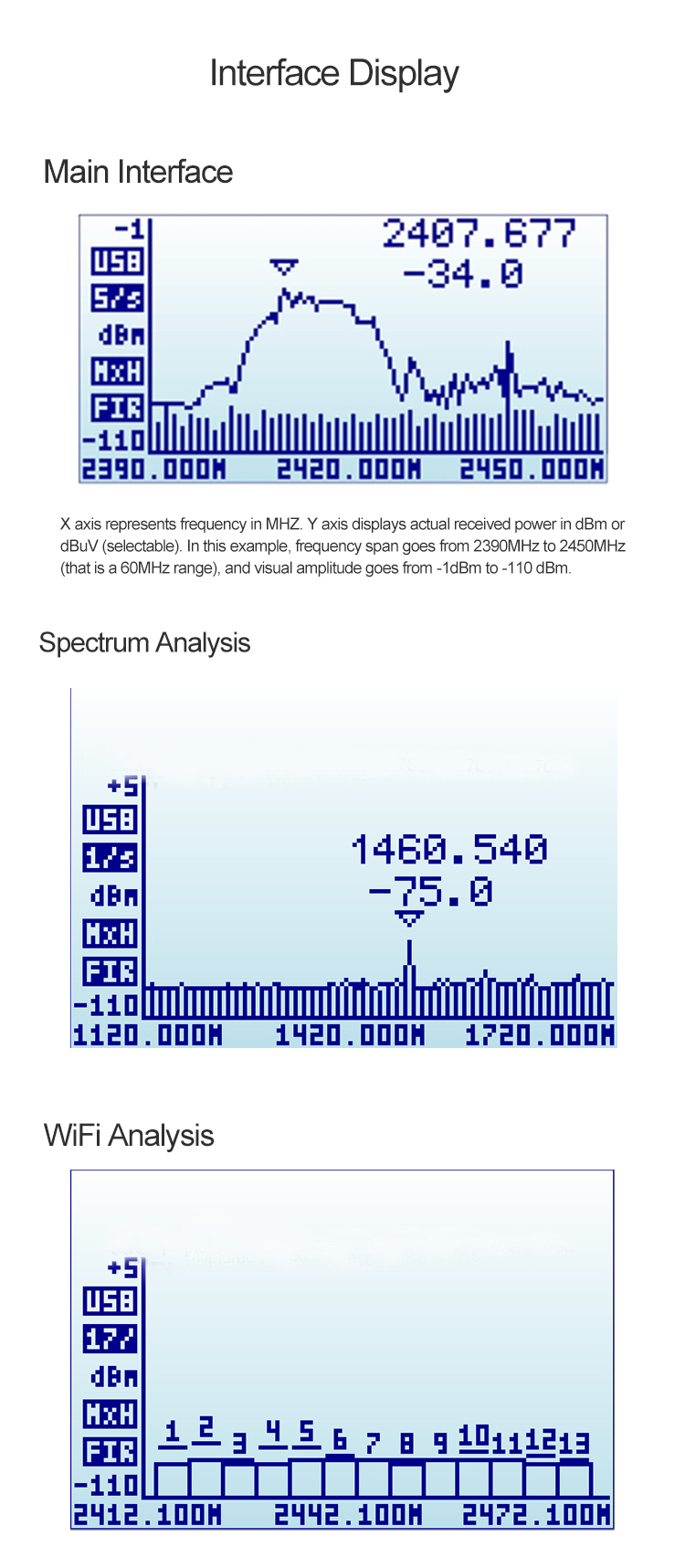

- Graphic LCD 128x64 pixels, great outdoor visibility
- Client for PC Windows supports for 32-bit and 64-bit of Windows XP/VISTA/Win7
- Backlit great indoor visibility
- Includes standard SMA 50 ohm connector, broadband NA-773 telescopic antenna
- Amplitude resolution: 0.5dBm
- Dynamic range: -115dBm to 0dBm
- Absolute maximum input power: +5dBm
- Average noise level (typical value): -110dBm
- Frequency stability and accuracy (typical value): ±10ppm
- Amplitude stability and accuracy (typical): ±3dBm
- Frequency resolution: 1KHZ
- Resolution bandwidth (RBW): Automatic 2.6Khz to 600kHz

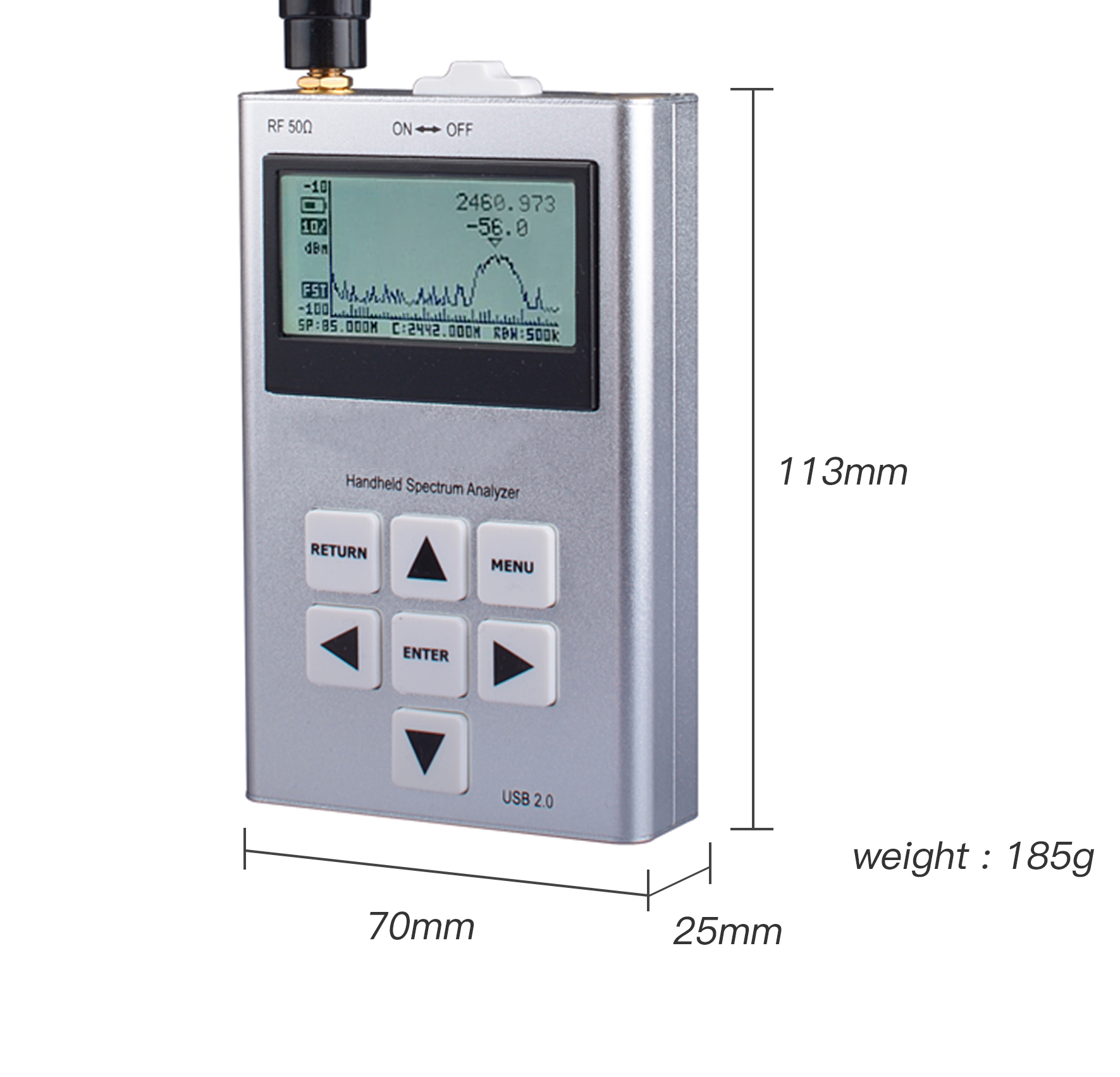

- Dimensions: 113x70x25 mm
- Weight: 185g

Package Included:
- 1 x Spectrum Analyzer Main Unit
- 1 x Antenna
- 1 x Instructions
