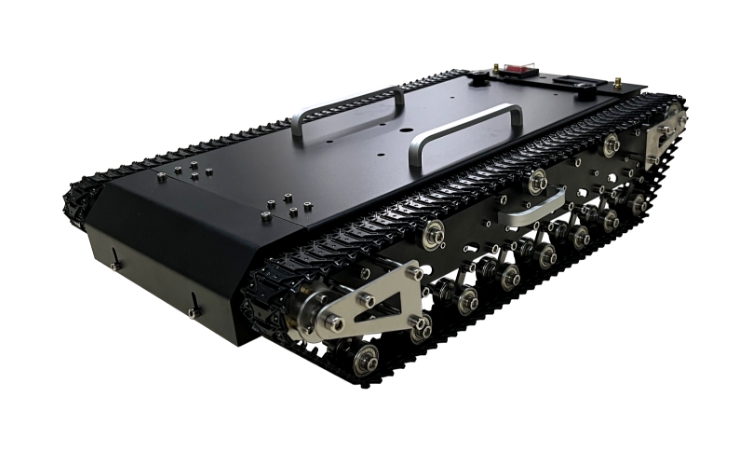

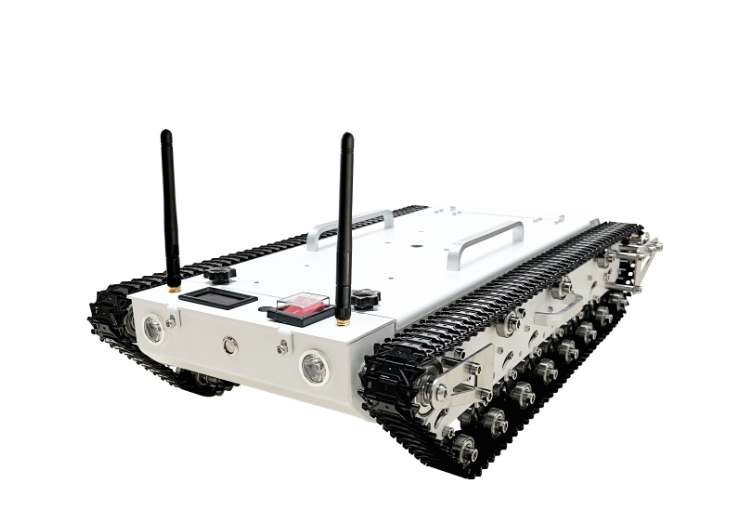

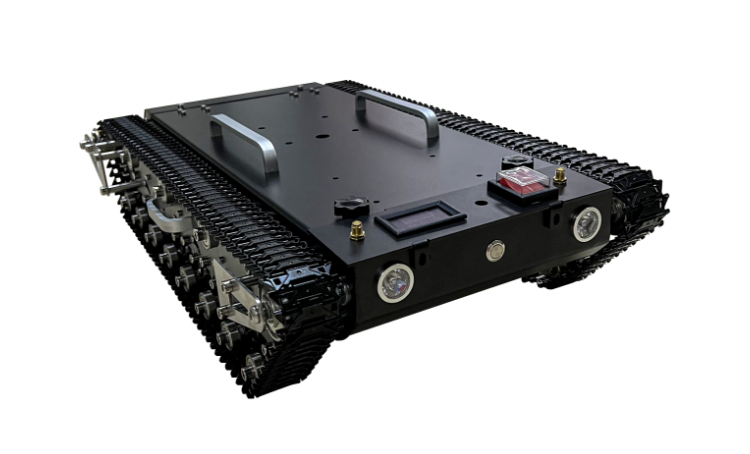

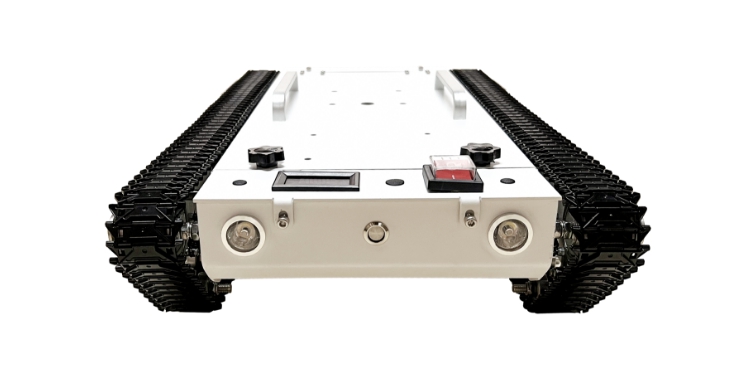

WT600S Full Metal Tank Chassis Off-Road Robot Chassis Robot Car Chassis Assembled (Ready to Use)

WT600S Full Metal Tank Chassis Off-Road Robot Chassis Robot Car Chassis Assembled (Ready to Use)

Version Introduction:
- The chassis has been assembled and debugged. So it is ready to use. Please note that its code is not open source.

Features:
- WT600S steel crawler remote control tank
- Flexible adjustment: You can adjust its suspension hardware according to the load and usage of the car
- Excellent workmanship; durable to use. The whole car uses more than 50 various types of bearings.
- Strong versatility: all parts can be replaced
- Super shock absorber system: excellent suspension system can stabilize its body. Even in difficult terrain, the tank can walk on the ground
- Night lighting; remote shooting; DIY extensions

Specifications:

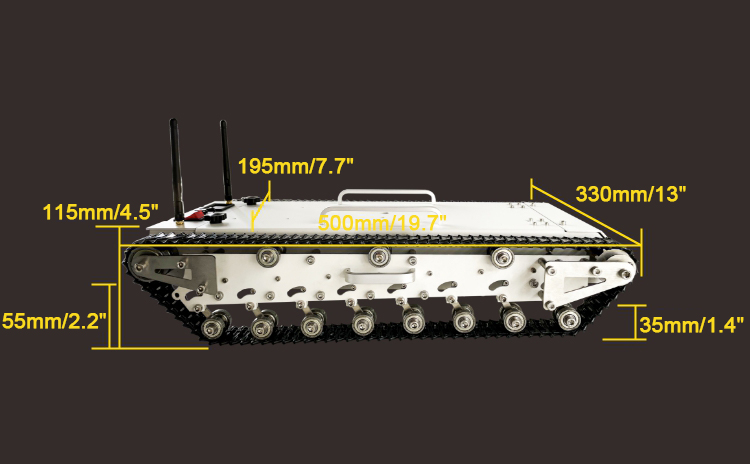

- Dimensions: 500 x 330 x 115mm/19.7 x 13 x 4.5" (LxWxH)
- Interior size: 320 x 160 x 45mm/12.6 x 6.3 x 1.8" (LxWxH)
- Power parameters: 12V brushed DC gear motor; 40W*2
- Maximum climbing: 35°
- Load capacity: 30KG/66.1LB
- Obstacle crossing: 70mm/2.8"
- Fastest speed: 0-1.0m/s
- Main body material: high carbon steel
- Surface treatment: electrostatic paint
- Tank net weight: about 8.53KG/18.8LB
- Track width: 40mm/1.6"
- Track material: metal track
- Lighting: 2*12V LED headlights

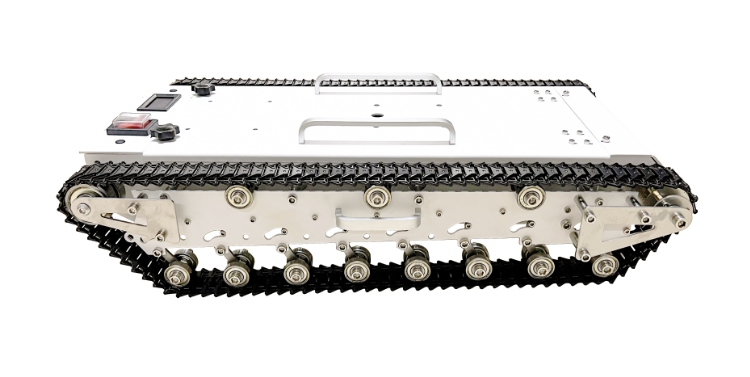

- Suspension design: 8 sets of left and right independent suspension

HM-GM37-550 High-Torque Motor:
- Metal gears
- Forward and reverse
- Adjustable speed

Motor Parameters:
- Use voltage: DC12.0V
- Maximum power: 40W
- Reduction ratio: 1:30
- No-load current: ≤1100mA
- No-load speed: 550rpm
- Rated torque: 9.0Kg.cm
- Rated torque: 882.3mN.m
- Rated speed: 360rpm
- Rated current: ≤6.0A
- Stalled and locked rotor current: 20.0A
- Reducer length: 21.5mm

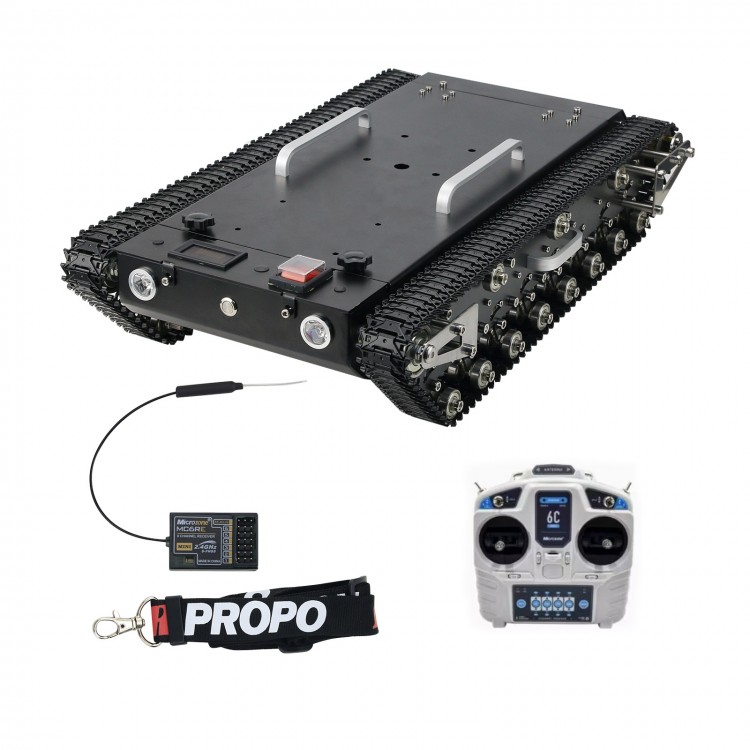

Package Included:
- 1 x Tank Chassis
- 1 x Receiver
- 1 x RC Controller
- 1 x Hanging Strap

Packaging Details:
- G.W.: 19kg

Note:
- It is assembled.
- Battery is not included. 11.1V 5400mAh 3S lithium battery is recommended.

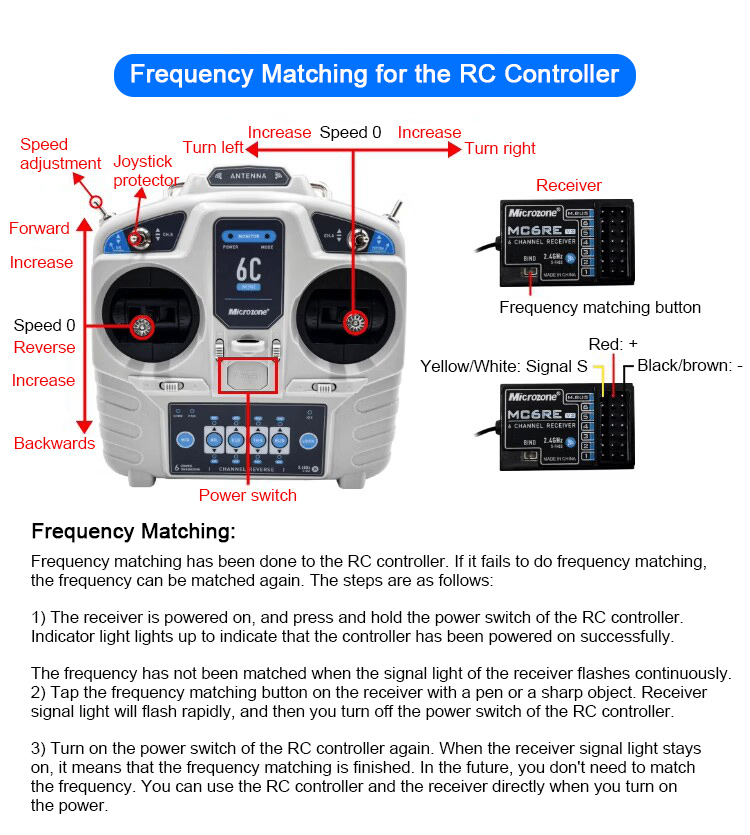

- Frequency matching has been done to the RC controller before shipment.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
