WVC-600W Micro Grid Inverter Line Filter Frequency Waterproof Solar with Communication Function

WVC-600W Micro Grid Inverter Line Filter Frequency Waterproof Solar with Communication Function

Instructions:Click here

Product Description:
- Use IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion
- Built-in high-performance Maximum Power Point Tracking（MPPT）Function，Better able to track changes in the solar luminosity and control different output power, effectively collect sunlight.
- AC electric power transmission using the reverse transmission technology,the inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.

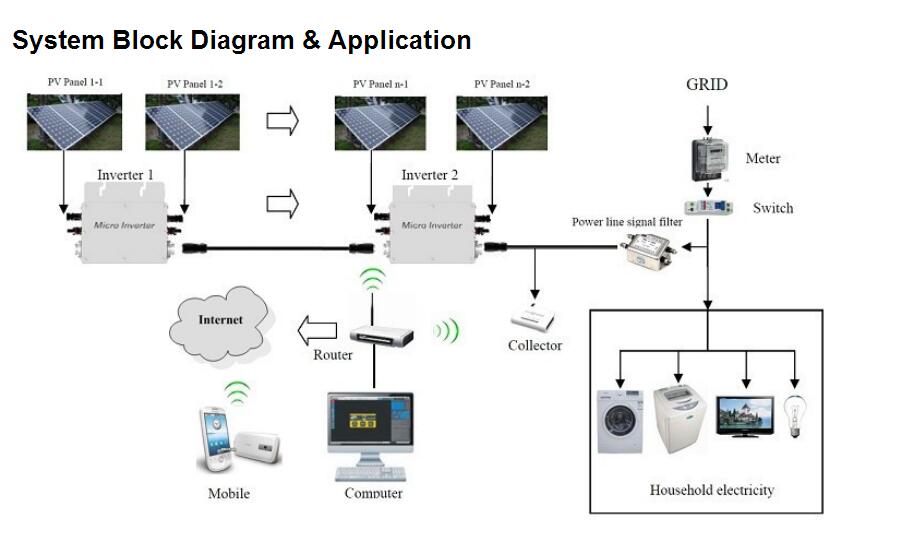

- Communication using two modes, Between the inverter and Collector Using power line carrier communication signals, Collector with a PC or other devices to communicate Using RS232 serial port/ WIFI wireless communication. Intelligent monitoring systems, The inverter can collect real-time data, Inverter can be controlled startup / shutdown / power regulation.

Features：

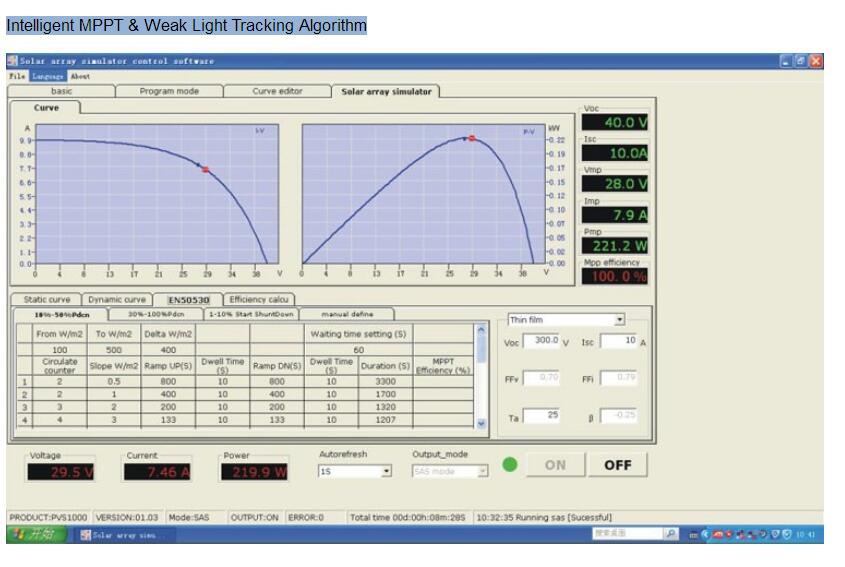

- High performance maximum power point tracking (MPPT)
- Reverse power transmission
- Intelligent monitoring management
- Input /output is fully isolated to protect the electrical safety

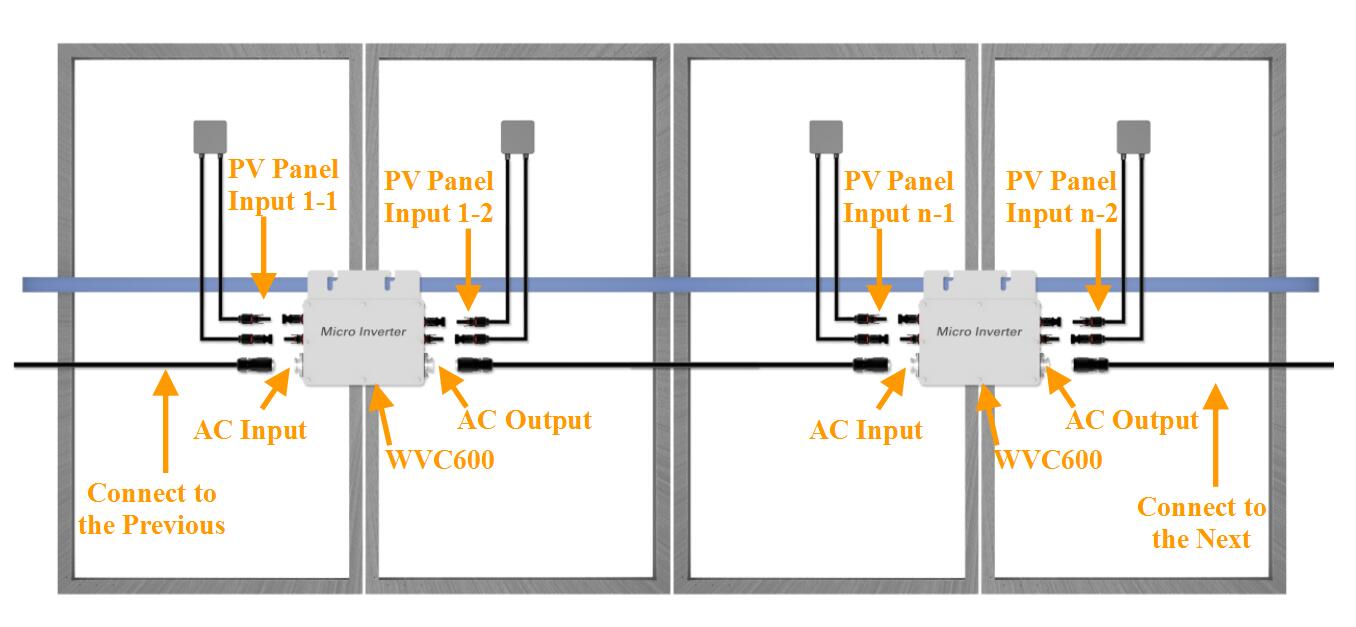

- Multiple parallel stacking
- Digital control system
- Simplify maintenance (user serviceable)

Note:
- The monitoring software can monitor multiple threads simultaneously 6 PCS power line acquisition simultaneously monitor 600 inverters.
- Each WVC Power Line Modem monitoring 100 inverters
- Monitoring system simultaneously collect real-time data from 6 WVC power line Modem by 6 threads
- Please install the inverters according to the user manual and connnet the groud safety.
- Forbid openning the shell with non-professional person ,only qualified maintenance person can repair the product .
- The inverter should be installed in the low humidity and well ventilated place,and remove the flammable things surrounding the inverter for avoiding overheating .
- Avoid children play when the inverter is working.

Package include:

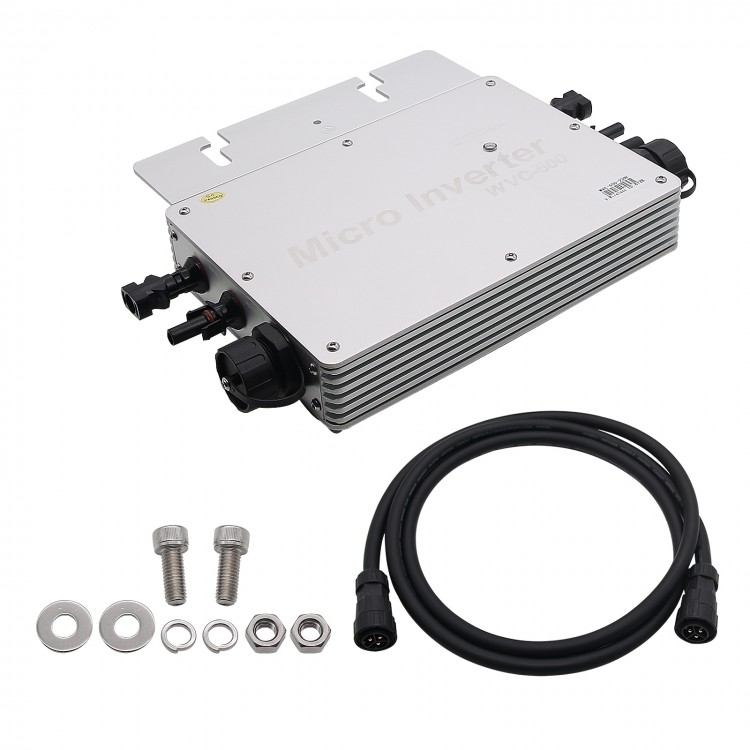

- 1   WVC-600W Micro Grid Inverter
- 1   Instructions
