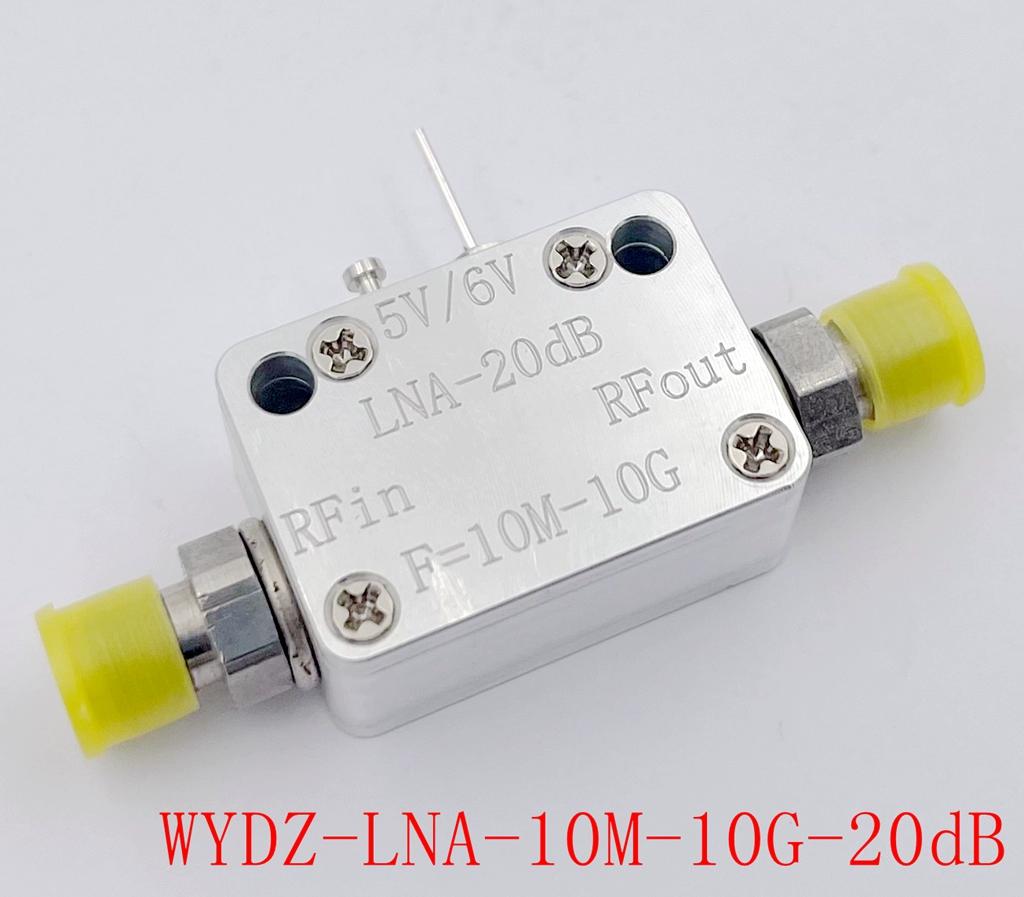

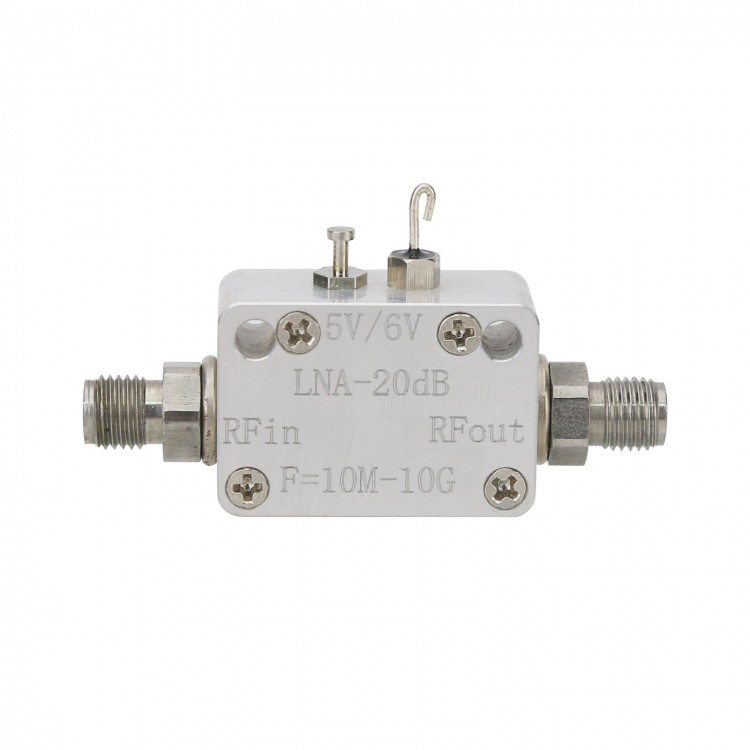

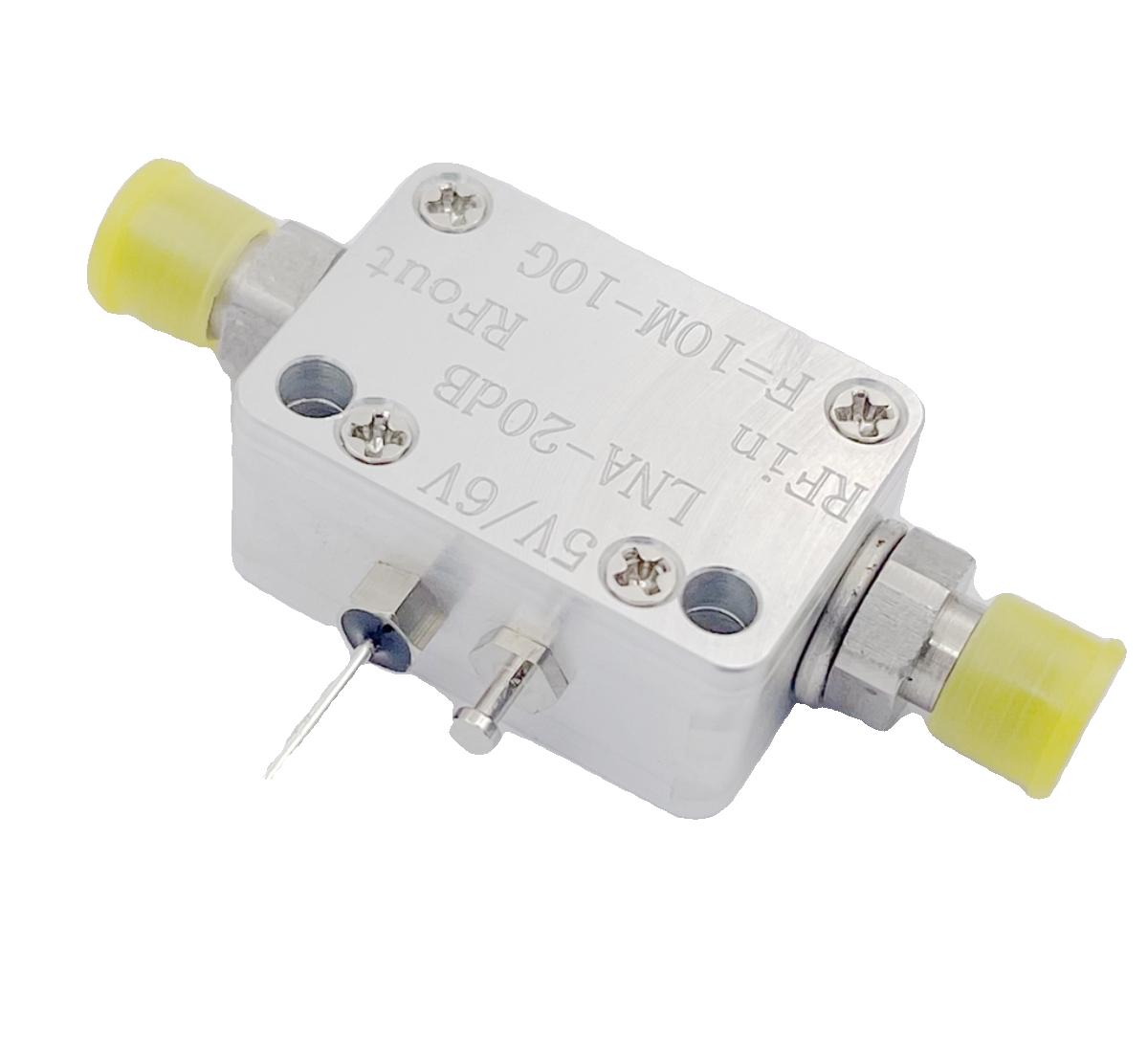

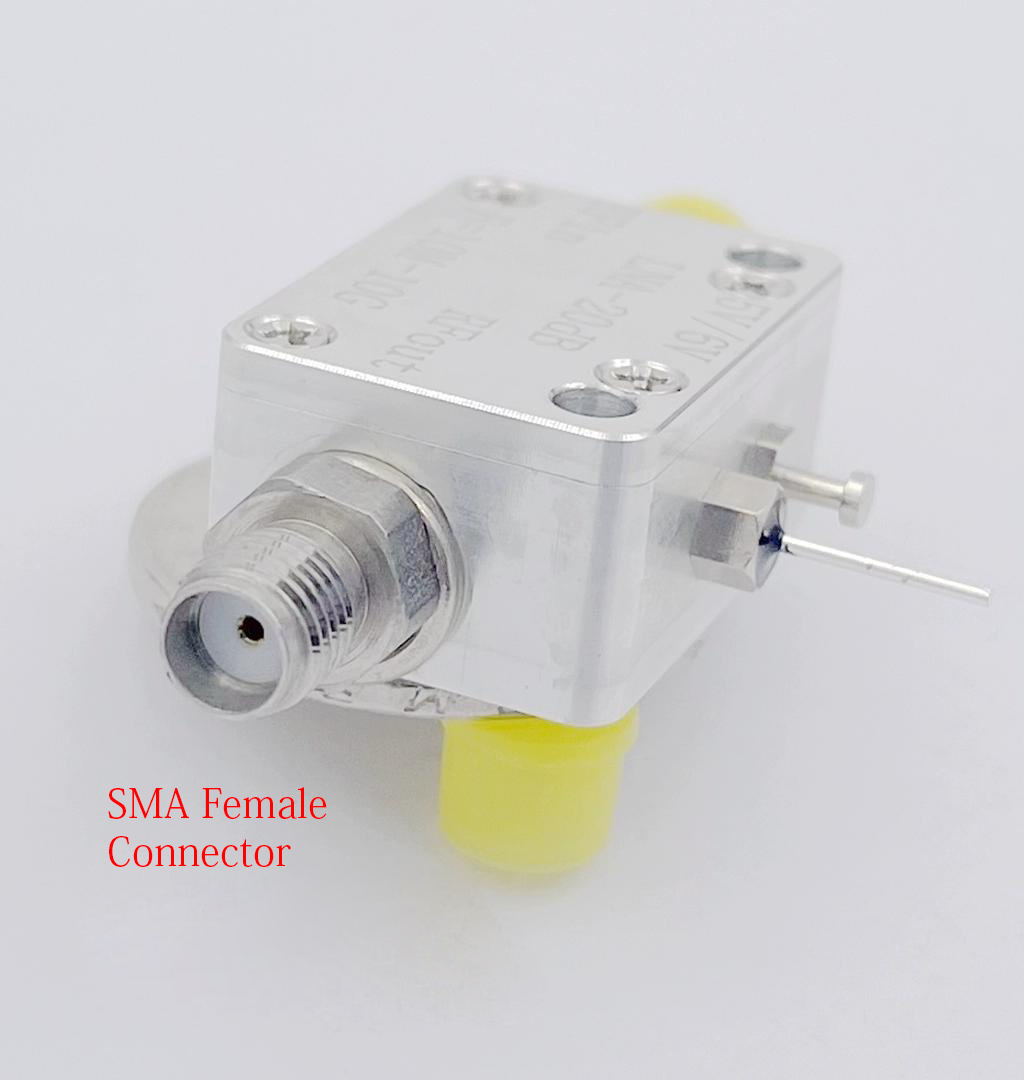

WYDZ-LNA-10M-10G-20dB Ultra-wide Band RF Low Noise Amplifier 10MHz - 10GHz with SMA Female Connector
Description:
- It is an ultra-wide band low phase noise amplifier with full frequency band of 10M-10000M, noise coefficient ≤ 1.5, GdB gain>20dB and very good flatness less than 2dB.
- 5V or 6V power supply.
- It can be used as an input low noise amplifier for broadband receivers, or as a driver for mixer local oscillator signals.
- It can be directly applied as a system module or as a verification platform.
Specification:
- Working frequency: 10M - 10000M

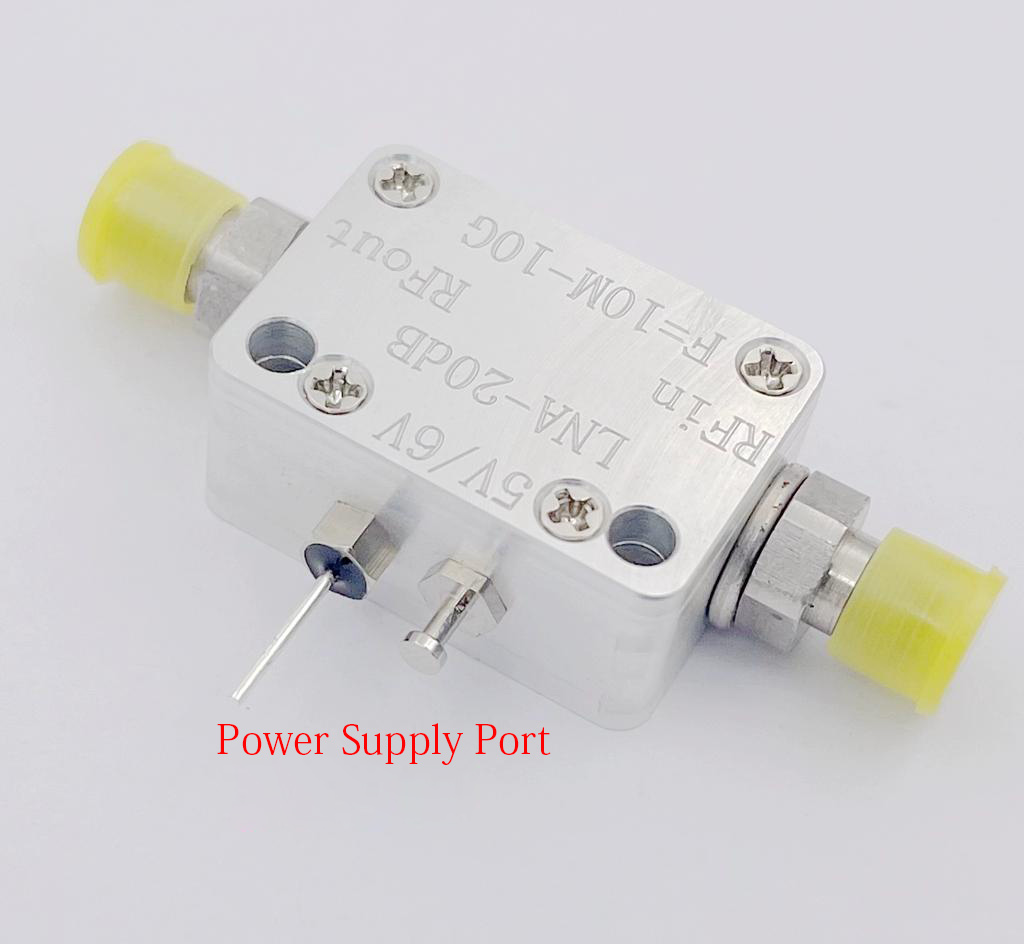

- Working voltage: 6V/70mA, 5V is available too.

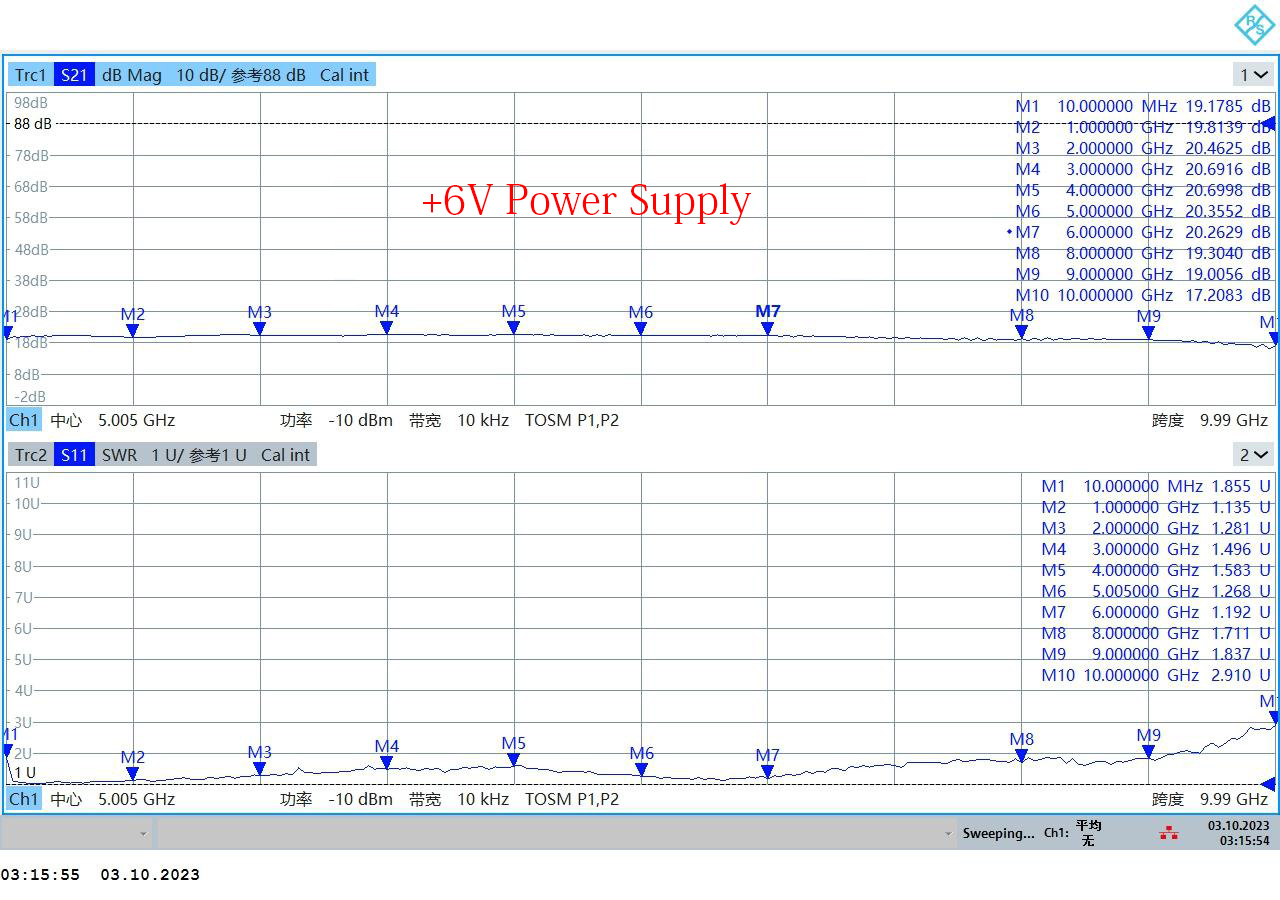

- Gain: 20dB at 10M - 10000M
- NF: 1.4dB at 10M - 10000M
- P1Db: >20dBm

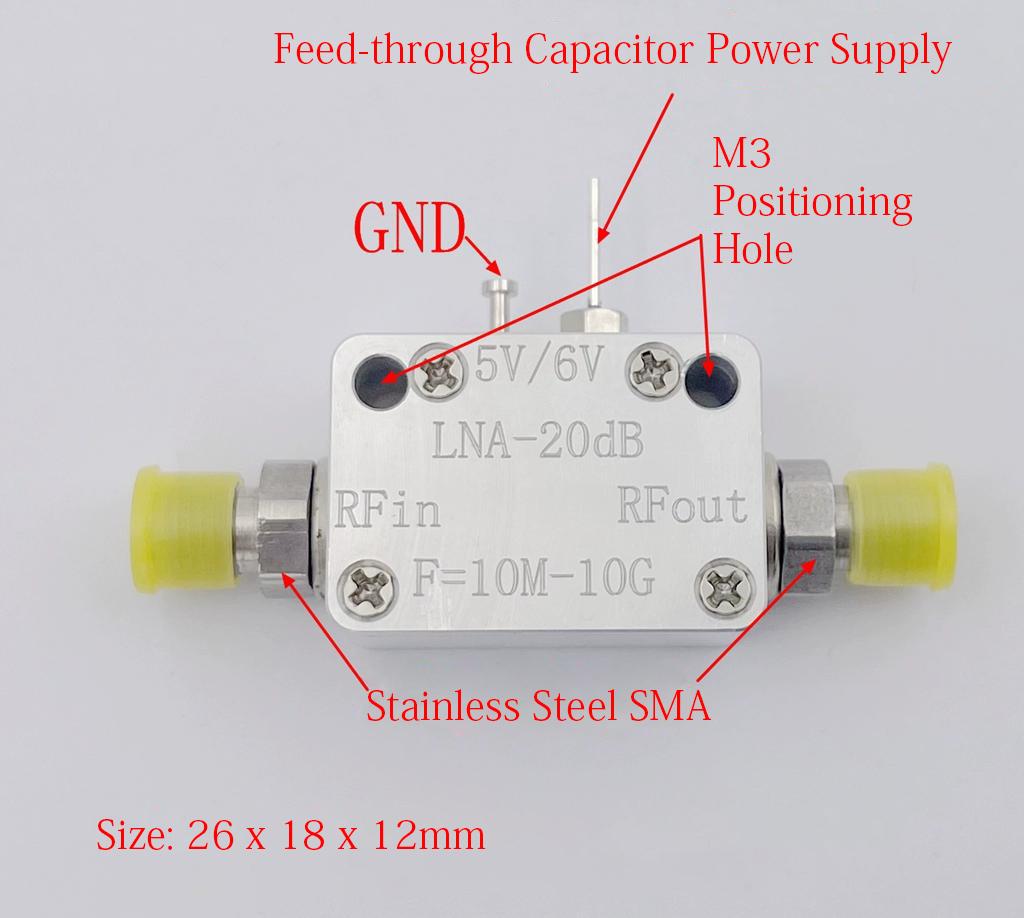

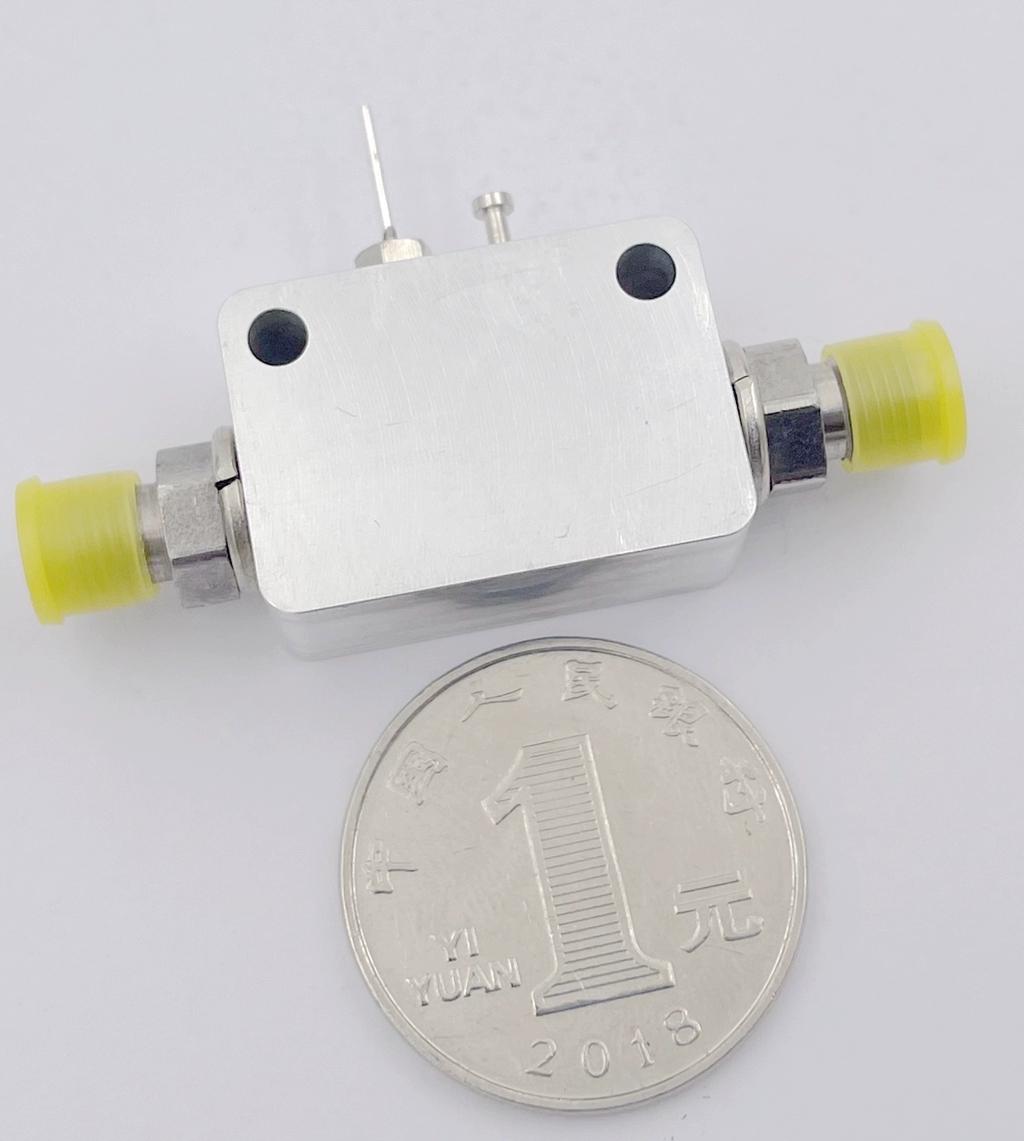

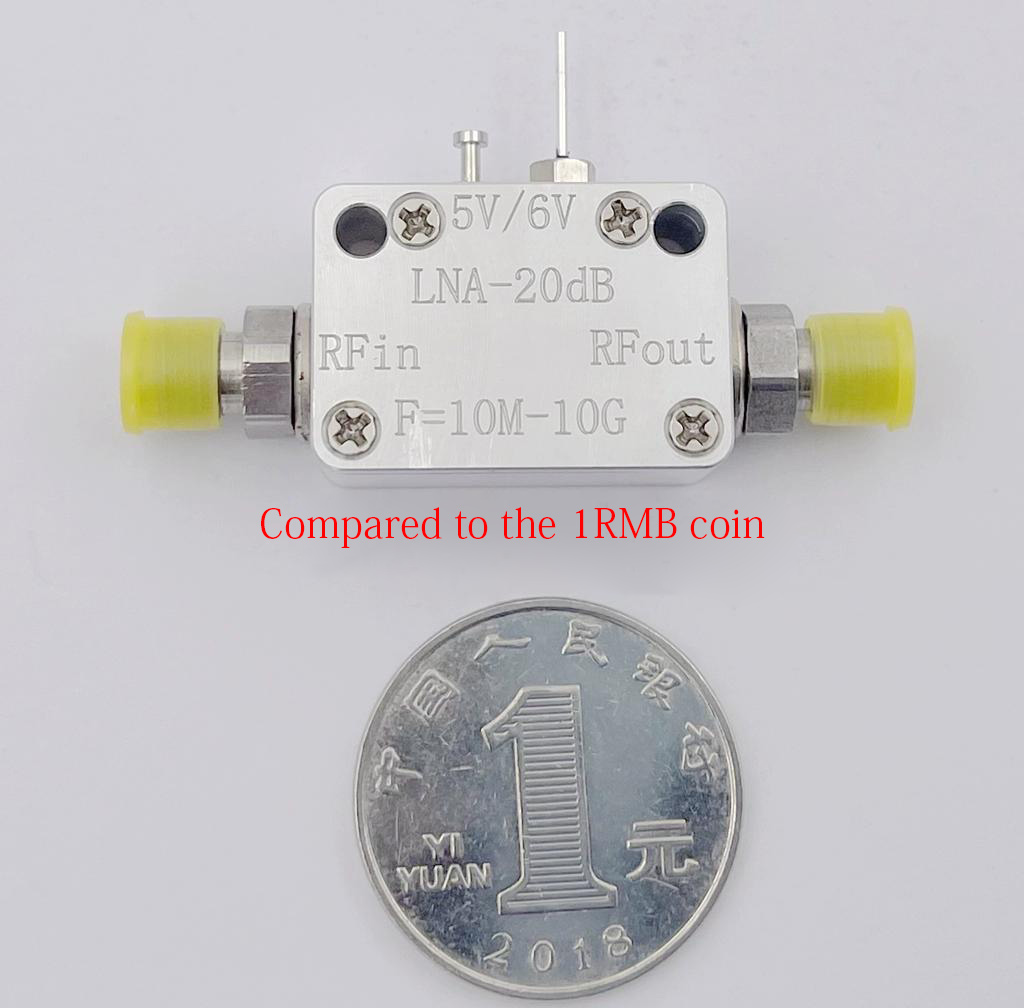

- Size: 26 x 18 x 12mm (excluding the connector)
- Input and output impedance: 50ohm
- Connector: SMA Female connector
Package Included:
- 1 x LNA
